F3AE0684P*E904

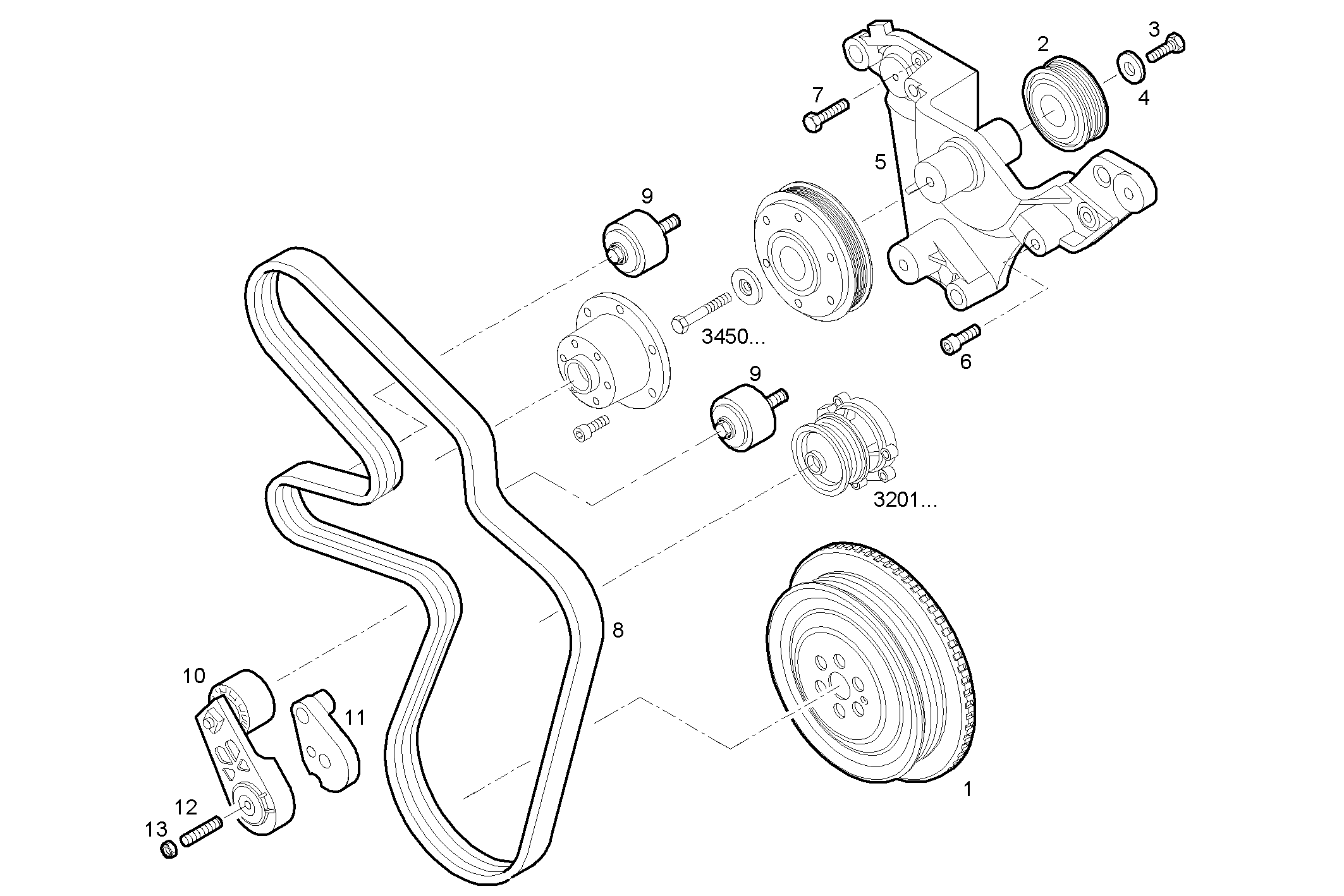

0843.029 DRIVING PULLEY
Item | Part number | Description |
---|---|---|
1 | 504142482 | CRANKSHAFT PULLEY |
2 | 504079721 | PULLEY |
3 | 16676635 | HEXAGON BOLT M10X60 MM |
4 | 504077389 | WASHER |
5 | 504078323 | SUPPORT |
6 | 16711235 | SCREW |
7 | 16673835 | HEXAGON BOLT M8X30 MM |
8 | 504078066 | BELT |
9 | 504078065 | BELT TENSIONER |
10 | 504078064 | BELT TENSIONER |
11 | 504079738 | SPACING BAR |
12 | 504079727 | STUD |
13 | 16750335 | HEXAGON NUT |
