F3AE0684P*E904

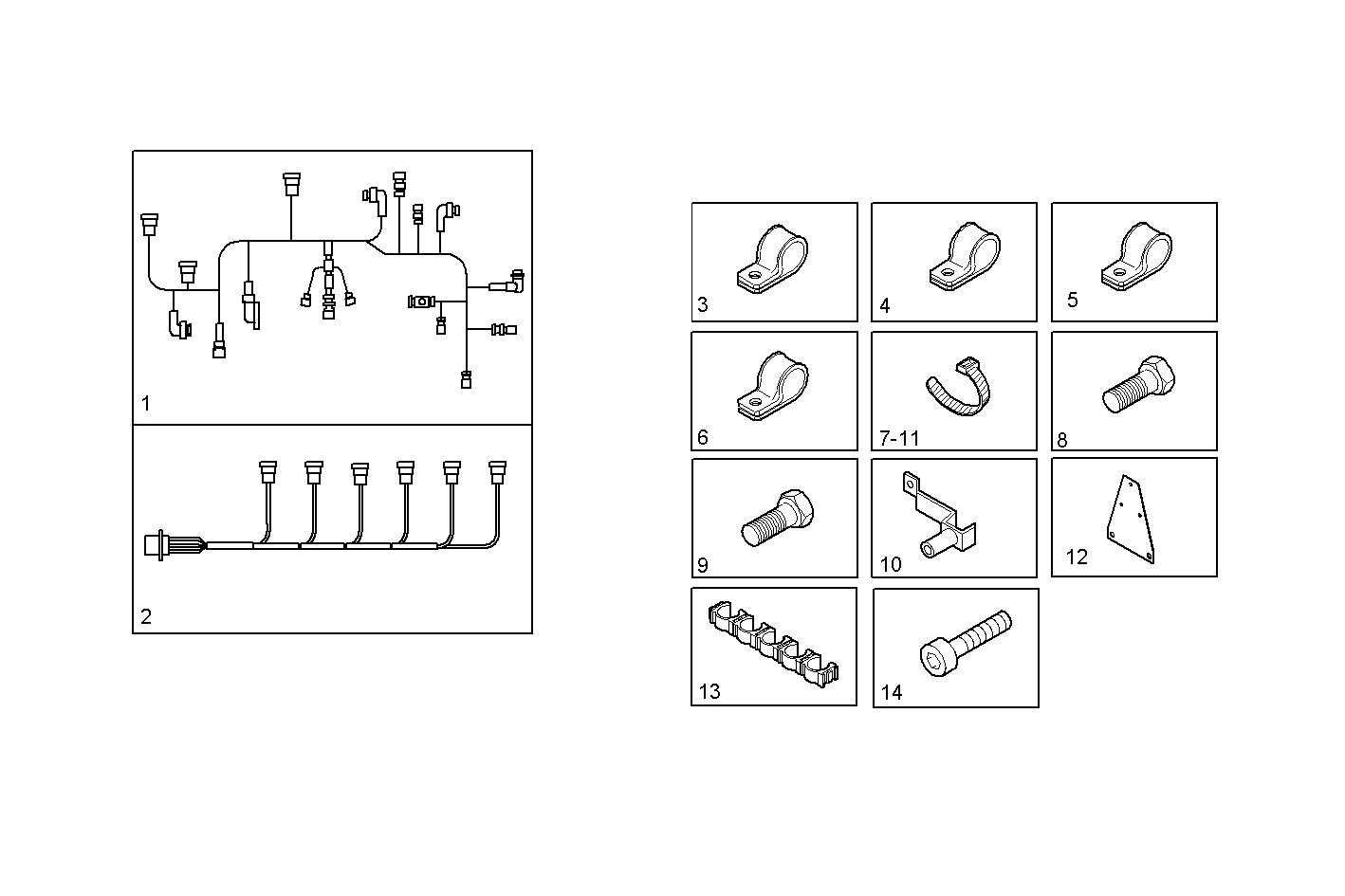

1730.017 ENGINE CABLE

Iveco/FPT ENGINE CABLE

Item Part number Description
1 504122099 SET OF WIRING
2 504132611 WIRE/CABLE FOR INJECTORS
3 17315490 PIPE CLIP
4 17310001 FASTENING BRACKET Ø4 MM
5 17310401 FASTENING BRACKET Ø8 MM
6 17310501 FASTENING BRACKET Ø10 MM
7 504023286 CABLE STRAP
8 11612224 HEXAGON BOLT M6X12 MM
9 16673835 HEXAGON BOLT M8X30 MM
10 504020897 FASTENING BRACKET
11 99455033 CLIP
12 504067009 RETAINER
13 504060889 RETAINER
14 16689424 SOCKET-HEAD SCREW M6X30 MM
