F3AE0684P*E904

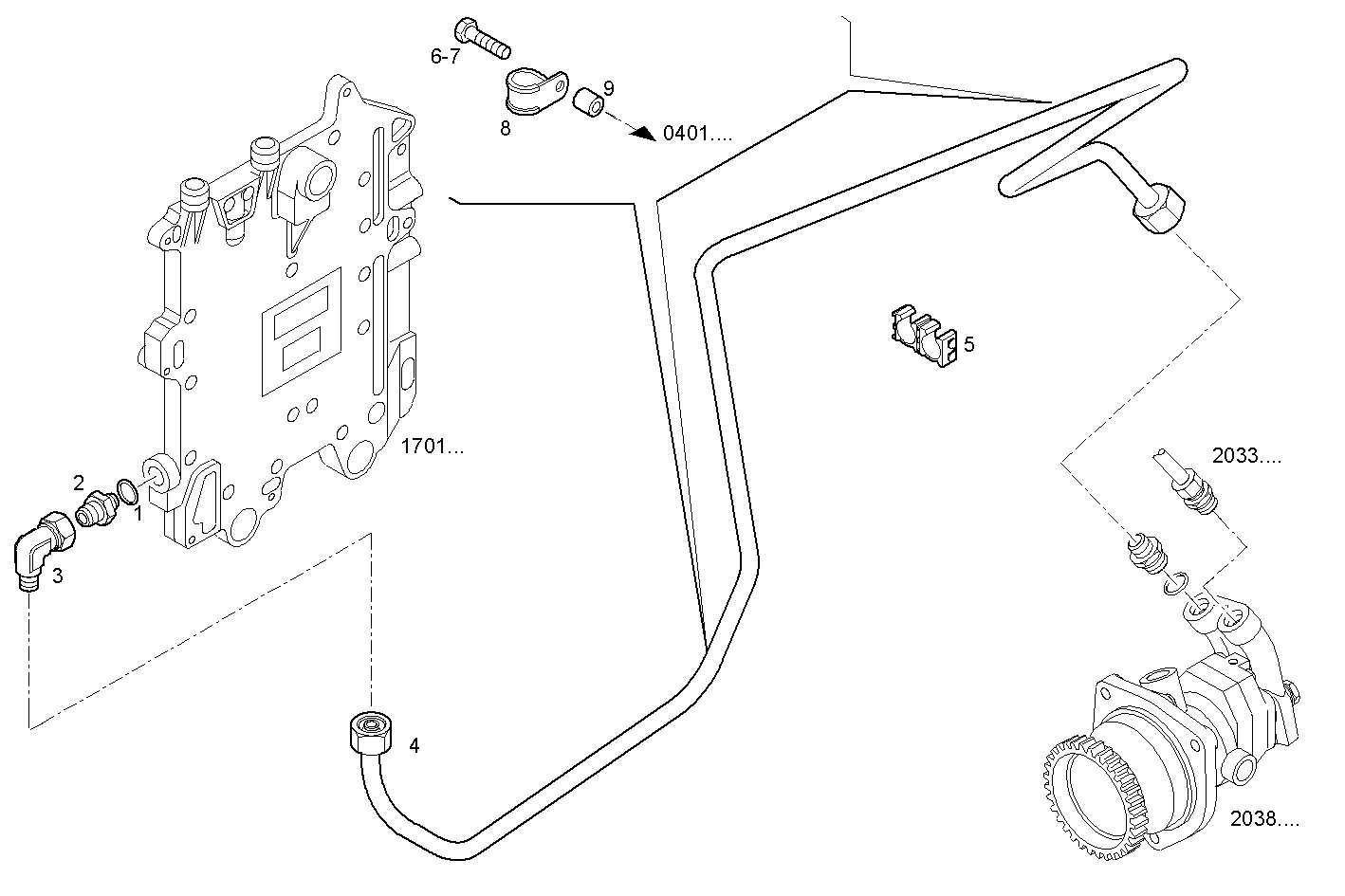

2031.002 FUEL LINES - INLET TO FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 16504114 | ELBOW COUPLING M18X1,5 |
| 4 | 504132108 | FUEL LINE |
| 5 | 500306941 | SPRING CLAMP |
| 6 | 16673735 | HEXAGON BOLT M8X25 MM |
| 7 | 16597925 | HEXAGON BOLT M8X14 MM |
| 8 | 17316592 | PIPE CLIP |
| 9 | 17816214 | SPACER Ø10X8,5X18 MM |
