F3AE0684P*E904

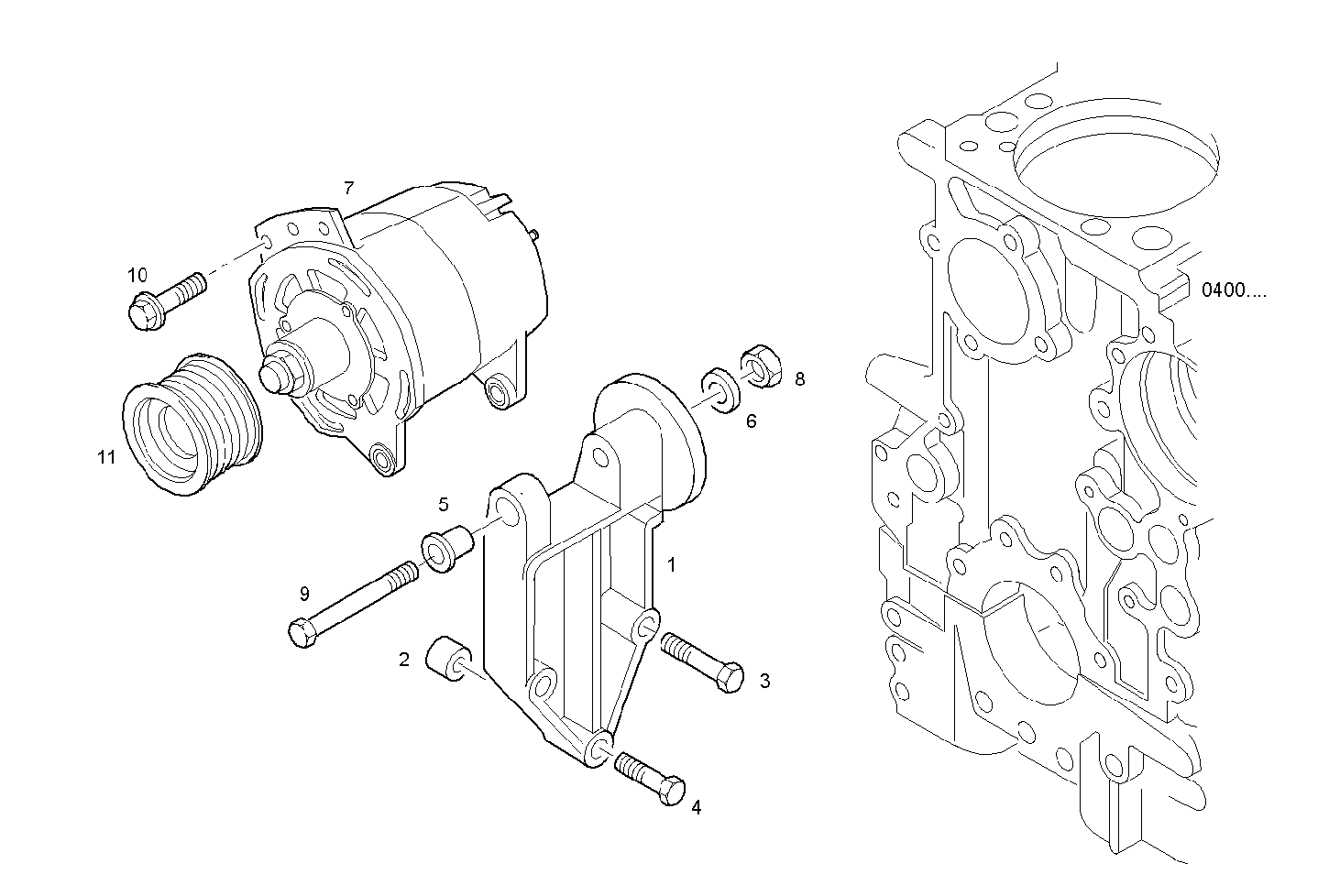

4000.140 GENERATOR

Iveco/FPT GENERATOR

Item Part number Description
1 500346543 GENERATOR SUPPORT
2 98405462 DOWEL PIN Ø10,2 MM
3 16593125 HEXAGON BOLT M10X100 MM
4 16599125 HEXAGON BOLT M10X130 MM
5 504080582 SPACING BAR
6 17097324 WASHER Ø12X24 MM
7 504073358 ALTERNATOR ASSY [UP TO #…]
7 504257252 ALTERNATOR ASSY [FROM #…]
8 17038421 HEXAGON NUT M12 (8)
9 16600024 HEXAGON BOLT M12X160 MM
10 504080581 HEXAGON BOLT
11 504078554 PULLEY
