F3BE0681M*B722

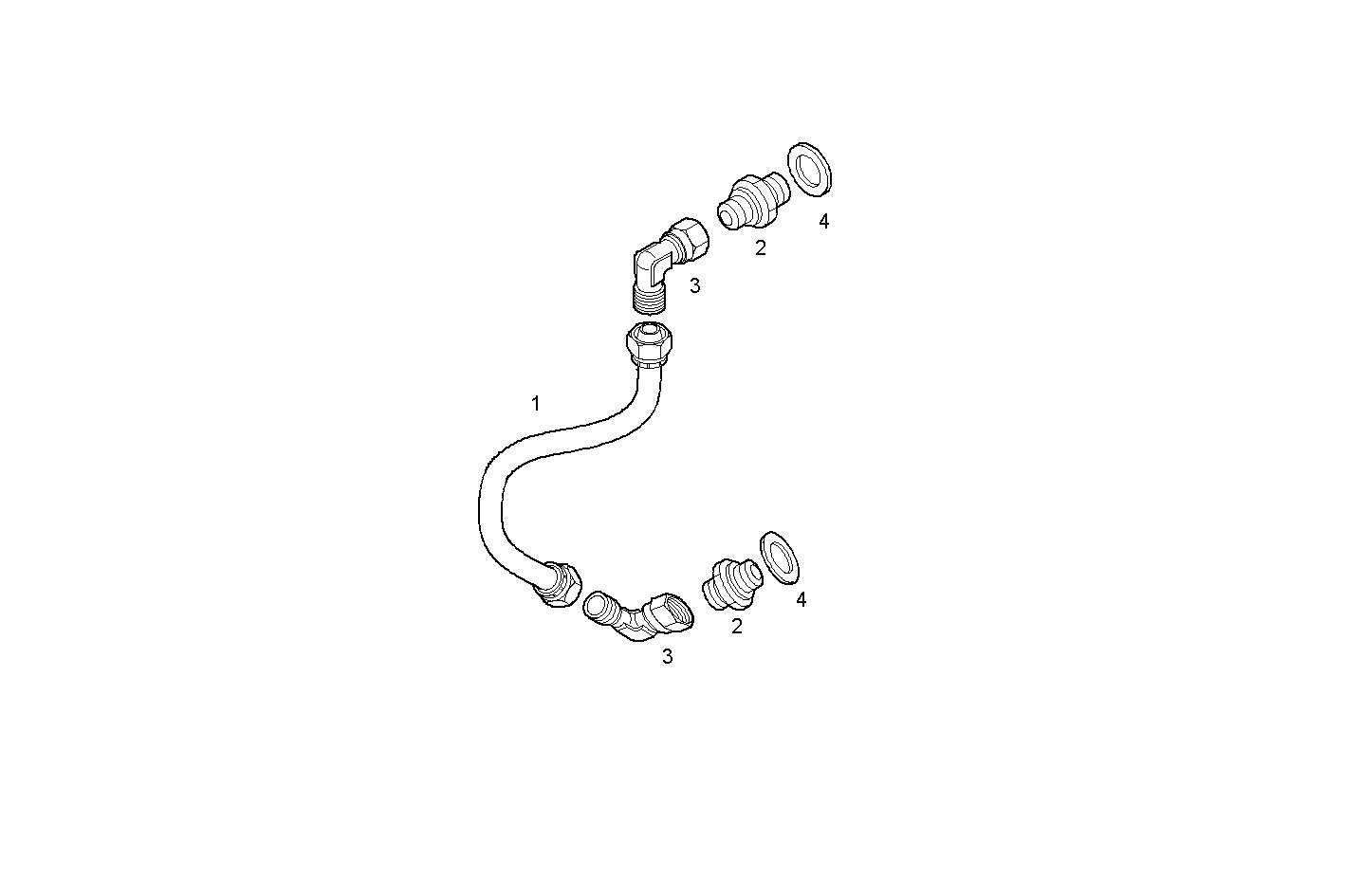

2031.017 FUEL LINES - INLET TO FUEL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 500360624 | FUEL LINE |
| 2 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 16504114 | ELBOW COUPLING M18X1,5 |
| 4 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
