Catalogue Menu

F3BE0684A*B001

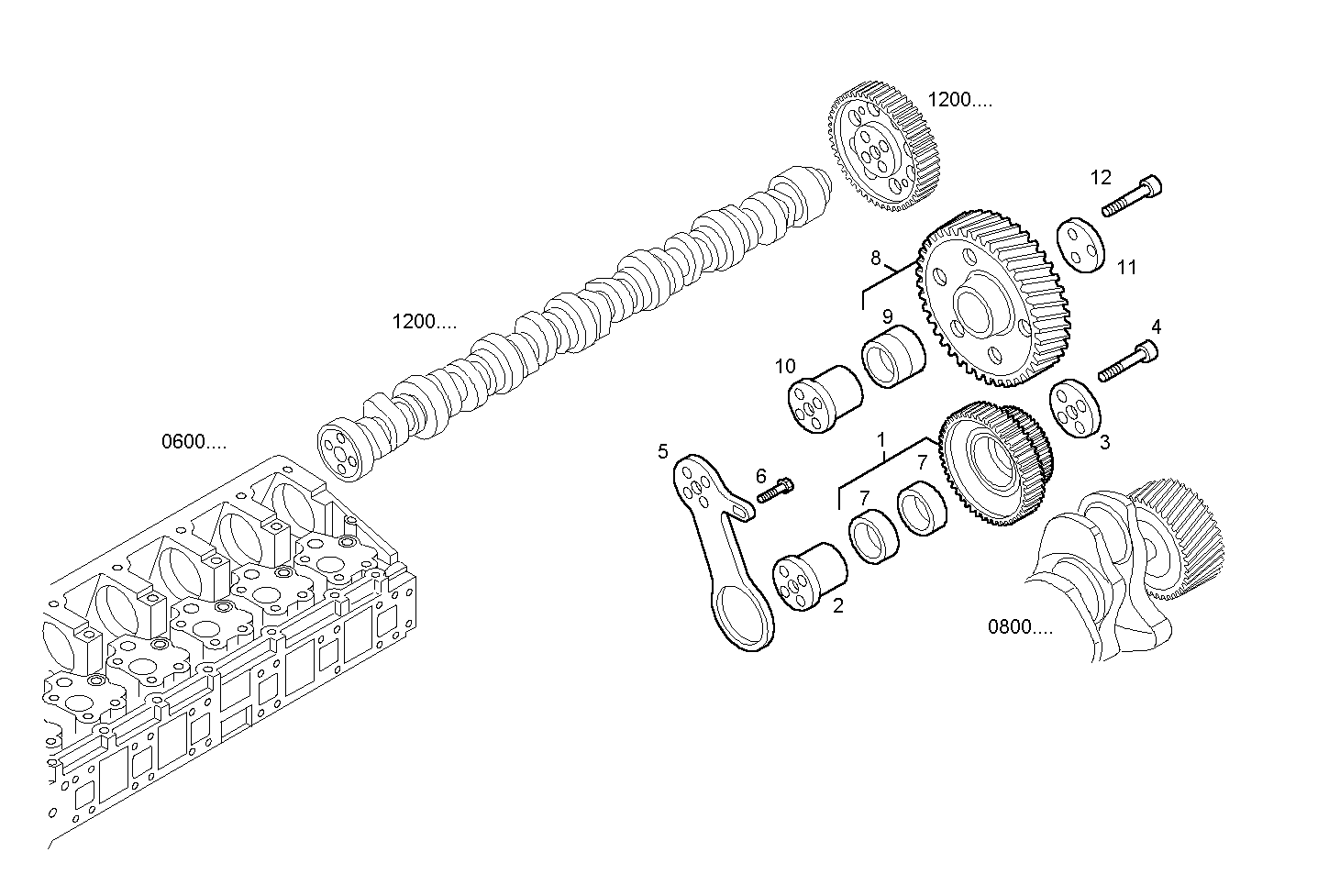

1000.098 GEAR DRIVE

Iveco/FPT GEAR DRIVE

Item Part number Description
1 500339012 CAMSHAFT PINION ASSY
2 500304182 FLANGED HUB
3 500305012 STOP WASHER
4 16679034 HEXAGON BOLT M12X90 MM
5 500304181 RETAINER
6 16586224 HEXAGON BOLT M8X1,25X16 MM
7 98475174 BUSH
8 500304189 CAMSHAFT PINION ASSY
9 500304204 DOWEL BUSH
10 500304187 PIN
11 500305013 STOP WASHER
12 16679134 HEXAGON BOLT M12X100 MM
