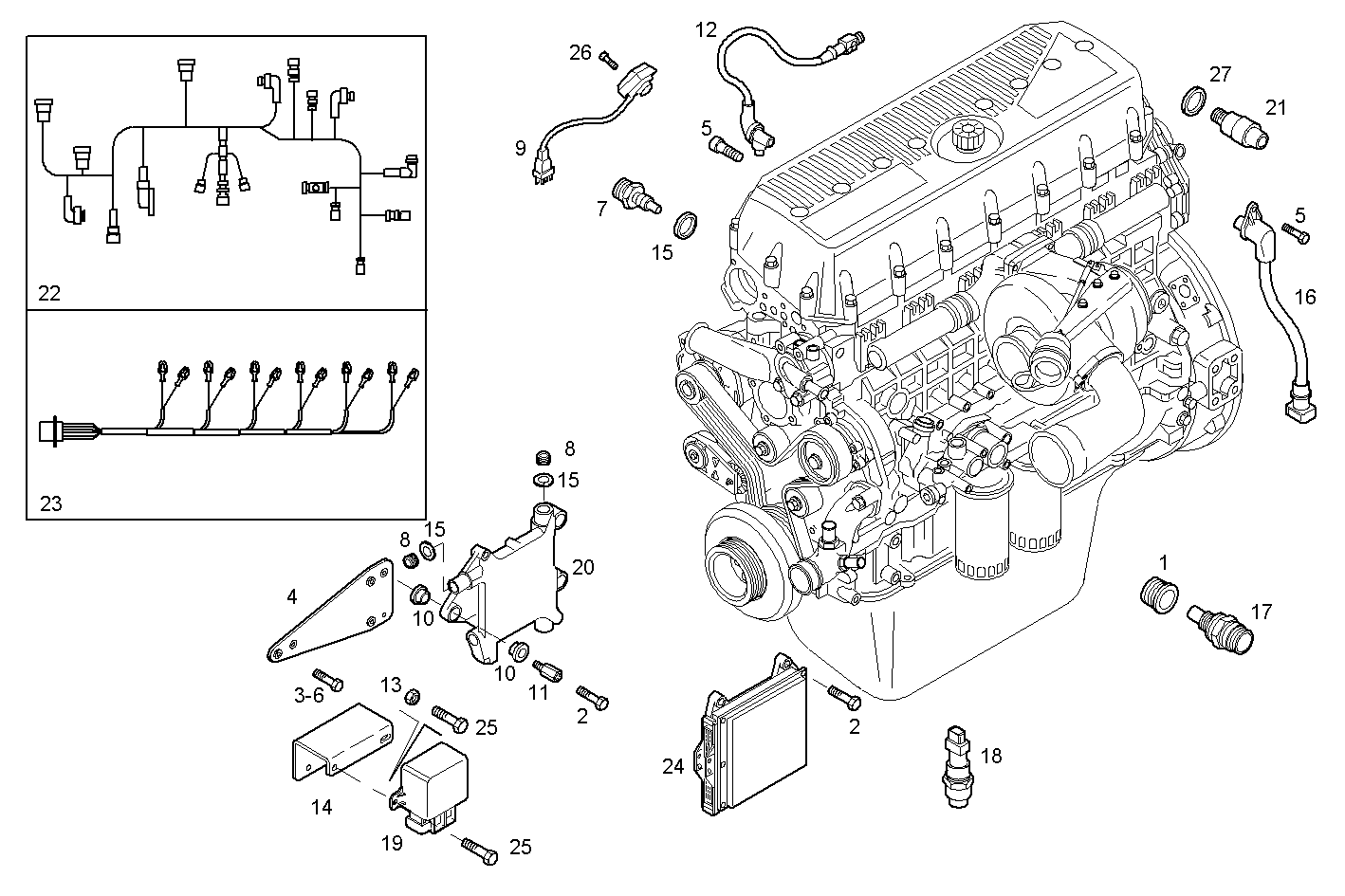

| Item |
Part number |
Description |
|
1 |
504035912 |
THREADED UNION |
|
2 |
16673934 |
HEXAGON BOLT M8X35 MM |
|
3 |
16674134 |
HEXAGON BOLT M8X45 MM |
|
4 |
500398687 |
SUPPORT [UP TO # 86373] |
|
5 |
16688924 |
CYLIND-HEAD SCREW M6X10 MM |
|
6 |
16600224 |
HEXAGON BOLT M8X1,25X18 MM |
|
7 |
98412656 |
TEMP. TRANSMITTER |
|
8 |
41031569 |
THREADED UNION M16X1,5 - M18X1,5 MM" |
|
9 |
500360579 |
SENSOR Pressure |
|
10 |
98498817 |
DOWEL |
|
11 |
99475194 |
SPACING BAR |
|
12 |
99450797 |
SENSOR camshaft. |
|
13 |
17044621 |
HEXAGON NUT M6 |
|
14 |
504036533 |
SUPPORT |
|
15 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
16 |
500306772 |
SENSOR crankshaft. |
|
17 |
500382599 |
TEMP. TRANSMITTER PRESS. & TEMPER. |
|
18 |
500386057 |
TEMP. TRANSMITTER |
|
19 |
500343161 |
RELAY |
|
20 |
500371989 |
SUPPORT |
|
21 |
500346371 |
CHOCKED FILTER INDIC. FILTRO BLOW-BY |
|
22 |
504041674 |
SET OF WIRING |
|
23 |
500339303 |
WIRE/CABLE FOR INJECTORS |
|
24 |
8093994 |
ELECTR.CONTR.UNIT E.C.U. |
|
25 |
16585724 |
HEXAGON BOLT M6X16 MM |
|
26 |
16597224 |
HEXAGON BOLT M6X18 MM |
|
27 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
28 |
504079747 |
RETAINER [FROM # 86374] |
|
29 |
16586824 |
HEXAGON BOLT M8X1,25X45 MM |
