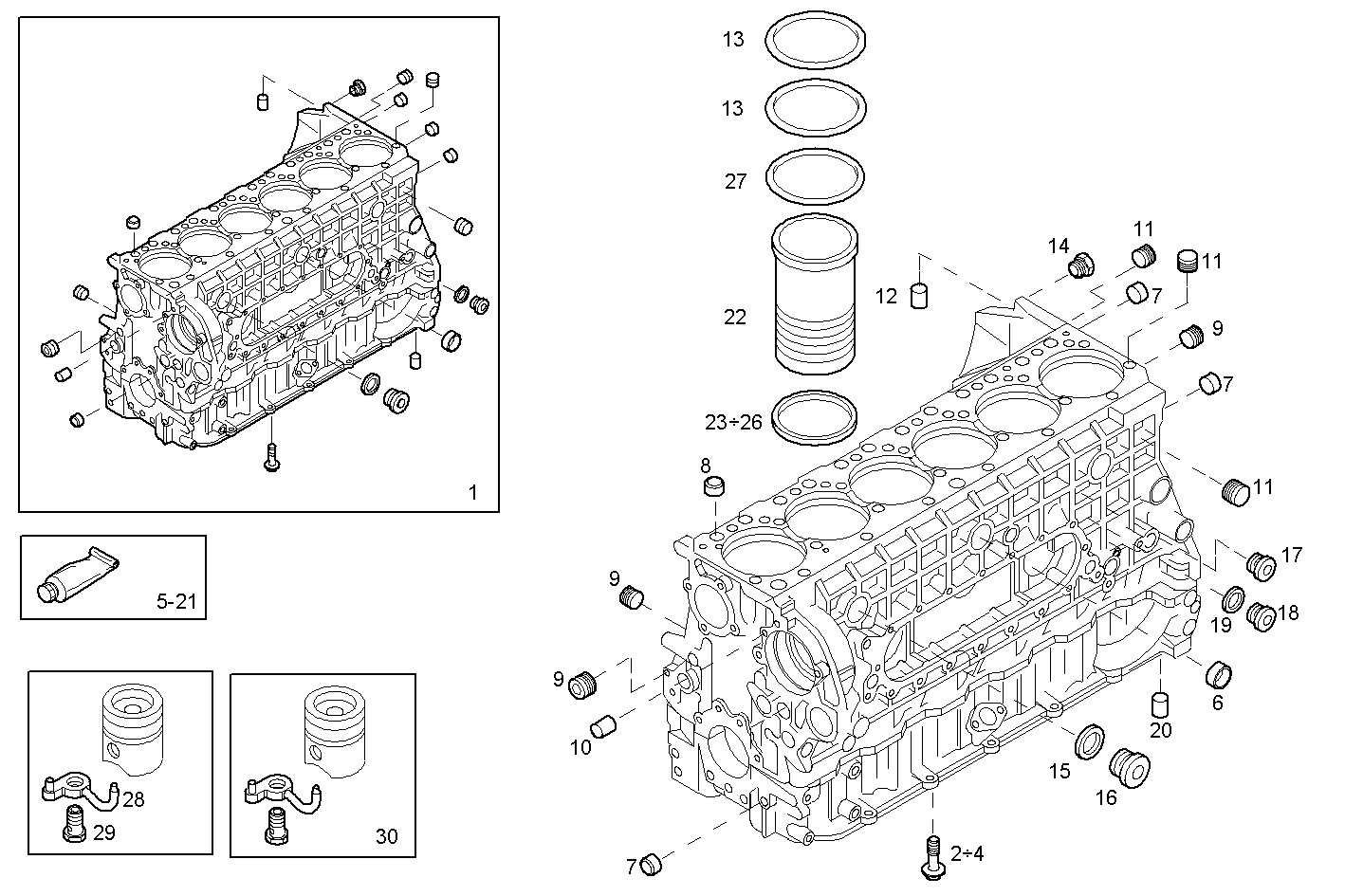

Item |
Part number |
Description |
1 |
504040197 |
CRANKCASE ASSY |
2 |
99495527 |
HEXAGON BOLT |
3 |
99432869 |
HEXAGON BOLT M12X125 MM |
4 |
99433863 |
HEXAGON BOLT M12X58 MM |
5 |
1903673 |
ADHESIVE/STICKER LOCTITE |
6 |
16991370 |
LOCK PLUG Ø45 MM |
7 |
16990870 |
LOCK PLUG Ø28 MM |
8 |
16990570 |
LOCK PLUG Ø20 MM |
9 |
98474481 |
THREADED PLUG |
10 |
98475100 |
THREADED PLUG R3/4x12 |
11 |
98472271 |
THREADED PLUG |
12 |
500368916 |
OIL NOZZLE |
13 |
99455401 |
O-RING Ø152 MM SP=3,53 MM |
14 |
99433597 |
THREADED PLUG M12X16 MM |
15 |
99469382 |
SEAL GASKET D=42x50x2 |
16 |
4665029 |
LOCK PLUG M42X1,5 |
17 |
99430692 |
THREADED PLUG 1/2'' |
18 |
16992411 |
THREADED PLUG M16X1,5 |
19 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
20 |
99467554 |
DOWEL PIN Ø14 MM |
21 |
93162429 |
ADHESIVE/STICKER LOCTITE |
22 |
500337911 |
CYLINDER LINER STANDARD |
23 |
99448193 |
SPAC.RING CYL.LIN. SP=0,08 MM |
24 |
99448192 |
SPAC.RING CYL.LIN. SP=0,1 MM |
25 |
99448190 |
SPAC.RING CYL.LIN. SP=0,12 MM |
26 |
500378983 |
SPAC.RING CYL.LIN. SP=0,14 MM |
27 |
99455400 |
O-RING Ø152 MM SP=3,53 MM |
28 |
99475196 |
OIL NOZZLE [UP TO # 74222] |
29 |
99474718 |
SCREW CONNECTOR M12X1,5 [UP TO # 74174] |
30 |
504199597 |
OIL NOZZLE [FROM # 74223] |
