F3BE0684E*B001

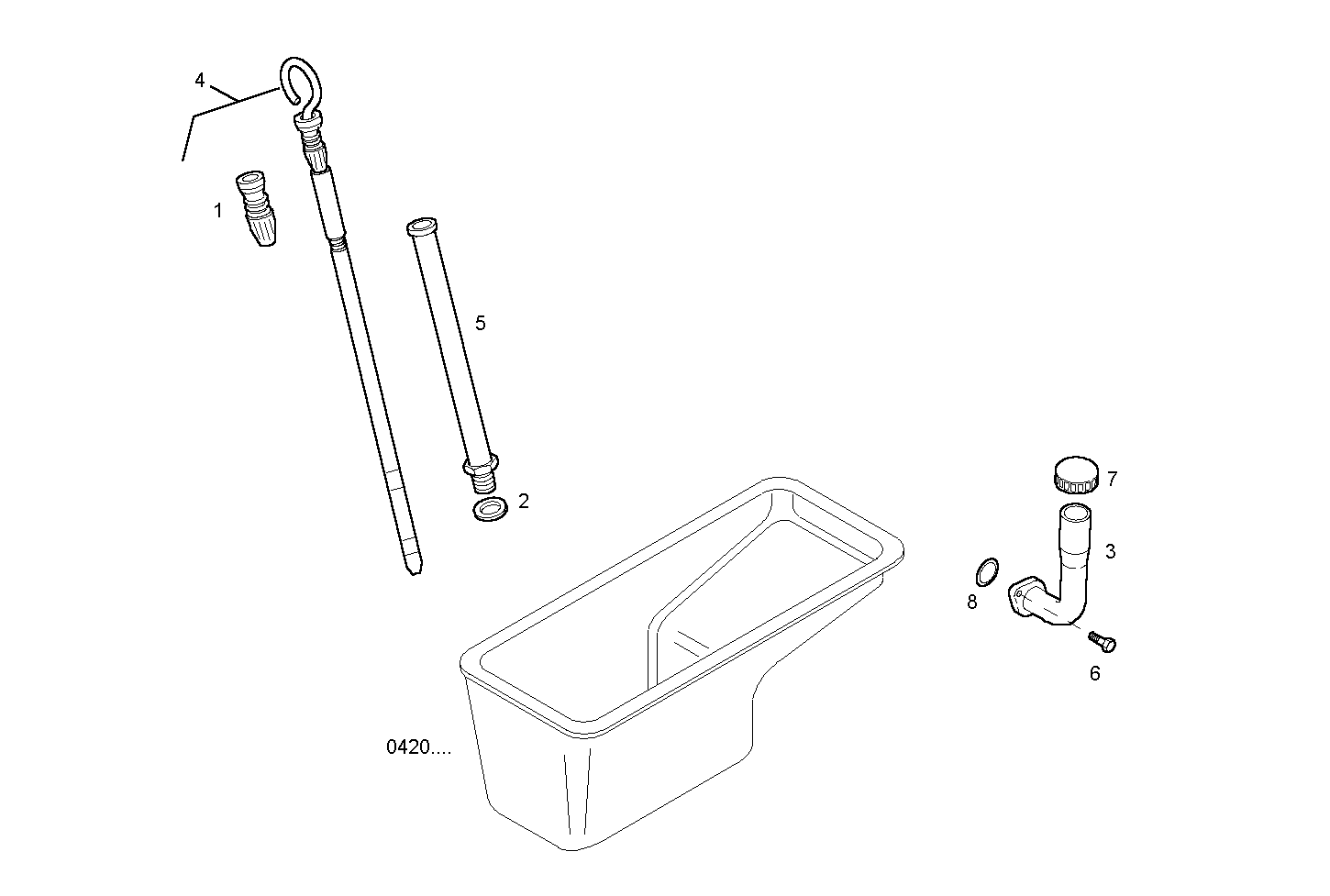

2710.111 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 7300023 | RUBBER GASKET |
| 2 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 3 | 504040194 | OIL FILLER PIPE |
| 4 | 500375803 | OIL DIPSTICK ASSY |
| 5 | 99471019 | OIL LEVEL TUBE |
| 6 | 16707134 | SOCKET-HEAD SCREW M8X20 MM |
| 7 | 98429552 | OIL FILLER PLUG |
| 8 | 17289281 | O-RING Ø34,5 MM SP=3,53 MM |
