F3BE0684E*B101

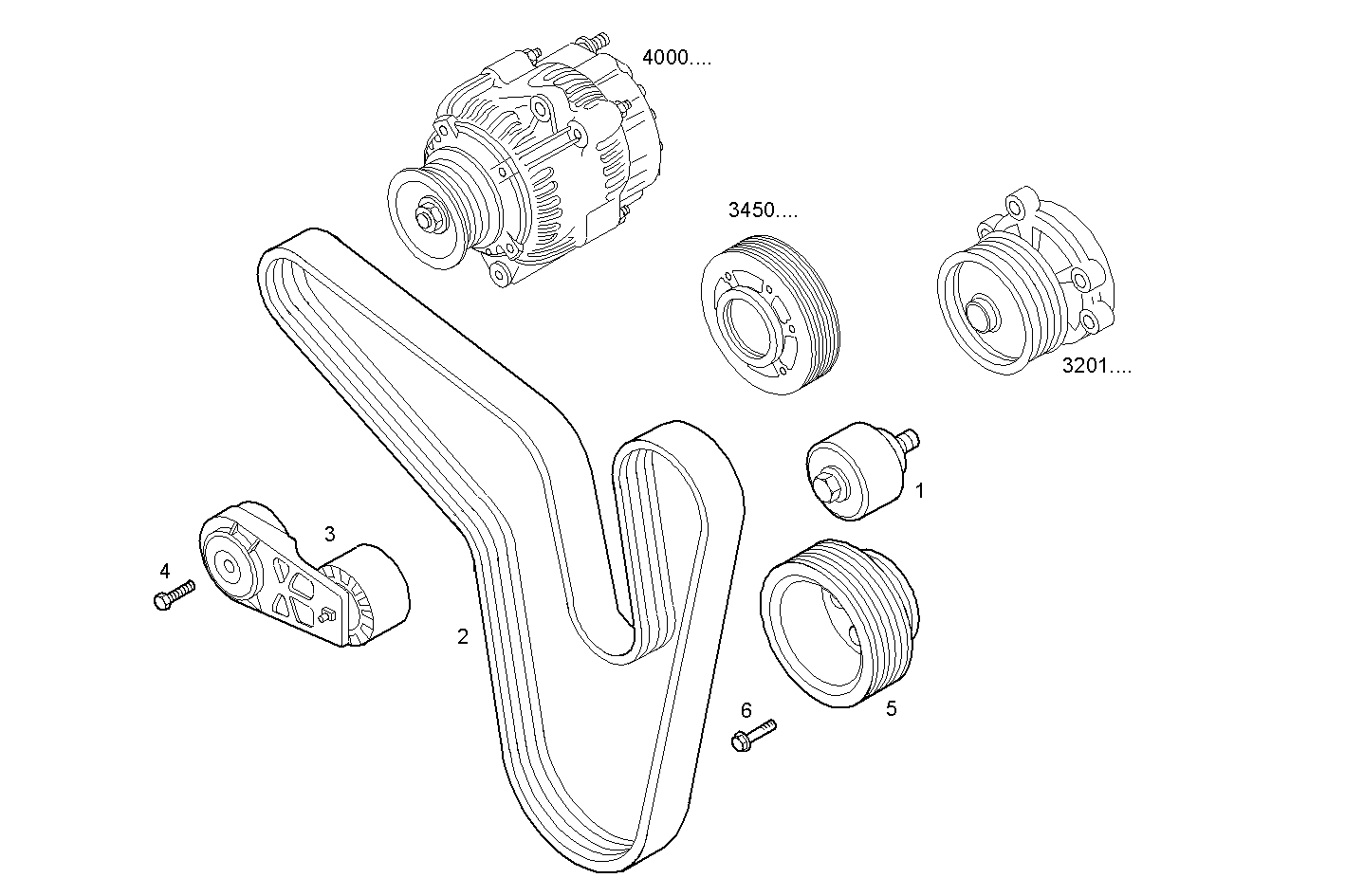

0843.013 DRIVING PULLEY
Item | Part number | Description |
---|---|---|
1 | 504006261 | BELT TENSIONER ASSY |
2 | 500341808 | V-BELT |
3 | 504046191 | BELT TENSIONER |
4 | 16676834 | HEXAGON BOLT M10X70 MM |
5 | 504023798 | PULLEY |
6 | 16680835 | HEXAGON BOLT M14X65 MM |
