F3BE0684E*B101

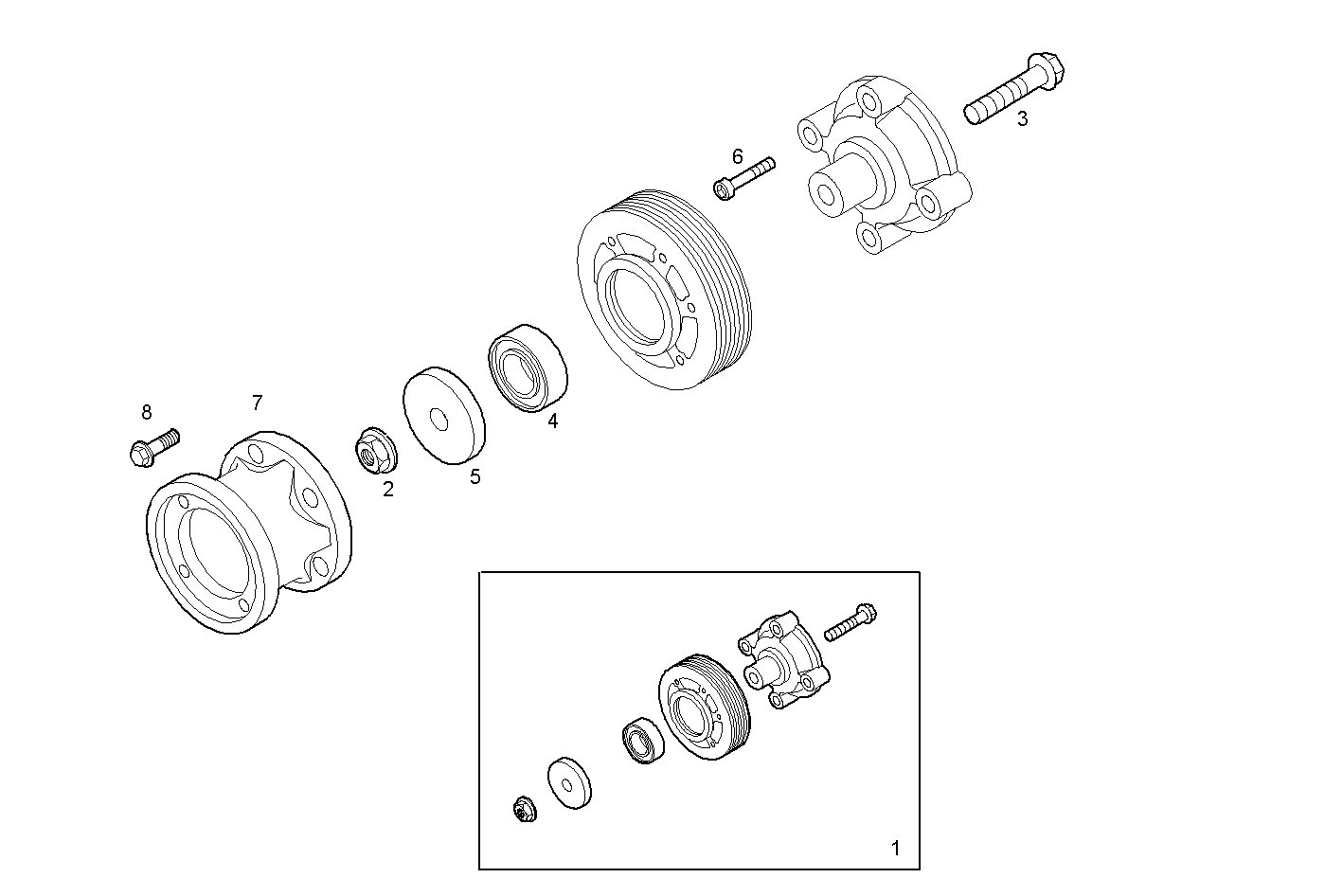

3450.004 VENTILATOR CONTROL

Iveco/FPT VENTILATOR CONTROL

Item Part number Description
1 500379570 SUPPORT ASSY
2 16984335 NUT M10
3 16676934 HEXAGON BOLT M10X1,5X80 MM
4 98427607 ENGINE BEARINGS
5 99474237 WASHER
6 16710434 SOCKET-HEAD SCREW M12X1,75X30 MM
7 500369867 SPACING BAR
8 16673735 HEXAGON BOLT M8X25 MM
