F3BE0684E*B101

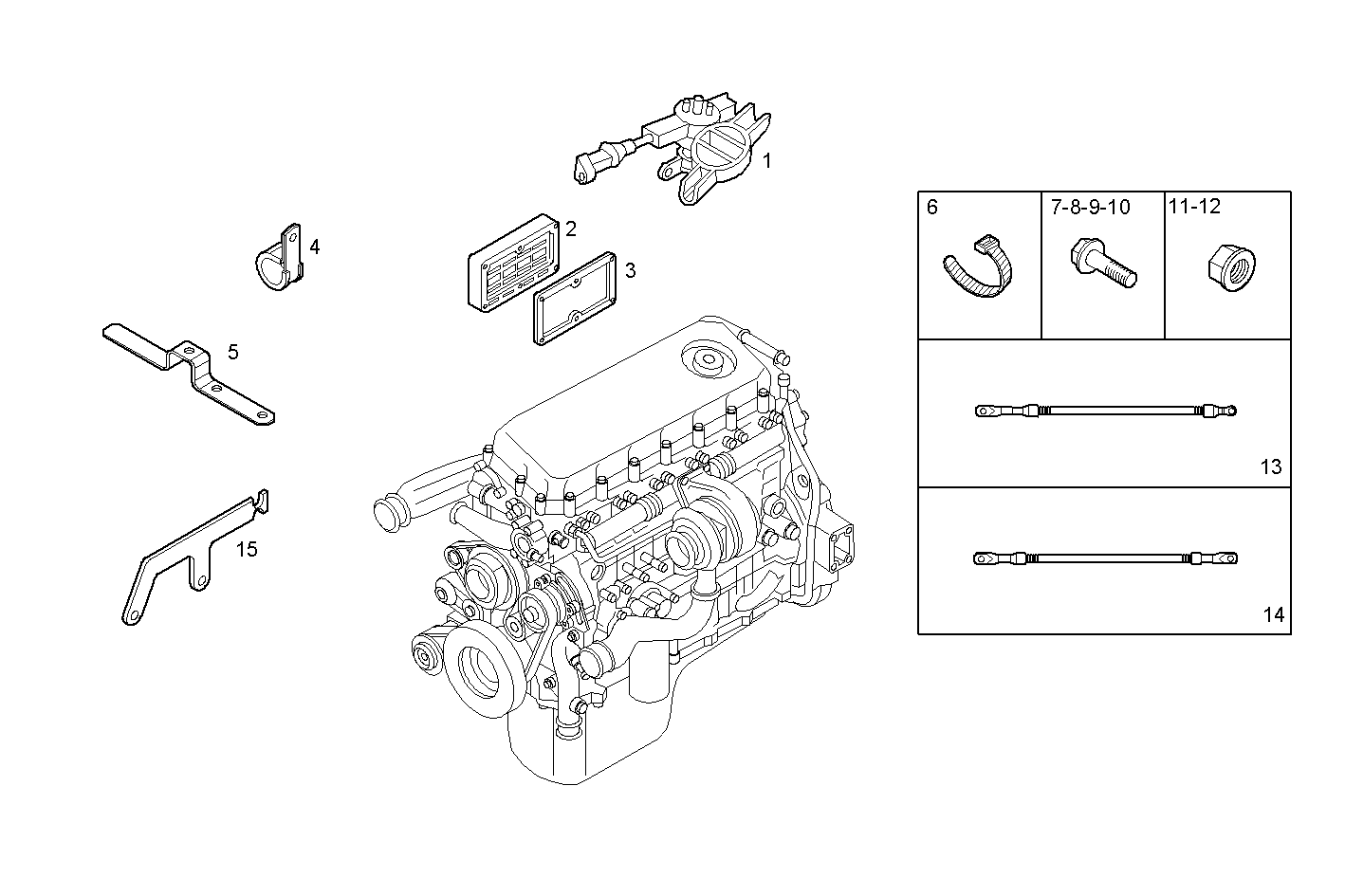

3650.005 THERMO-STARTER
Item | Part number | Description |
---|---|---|
1 | 99449300 | RELAY 24v-150a |
2 | 99437042 | RESISTOR |
3 | 504026624 | FLAT ENGINE GASKET |
4 | 10450990 | PIPE CLIP |
5 | 41207689 | SUPPORT |
6 | 99455033 | CLIP |
7 | 16592225 | HEXAGON BOLT M8X55 MM |
8 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
9 | 16585625 | HEXAGON BOLT M6X12 |
10 | 16597925 | HEXAGON BOLT M8X14 MM |
11 | 17044625 | HEXAGON NUT M6 |
12 | 16750235 | HEXAGON NUT M8 |
13 | 504119997 | WIRE/CABLE |
14 | 504206835 | WIRE/CABLE |
15 | 41223062 | SUPPORT |
