F3BE0684J*E902

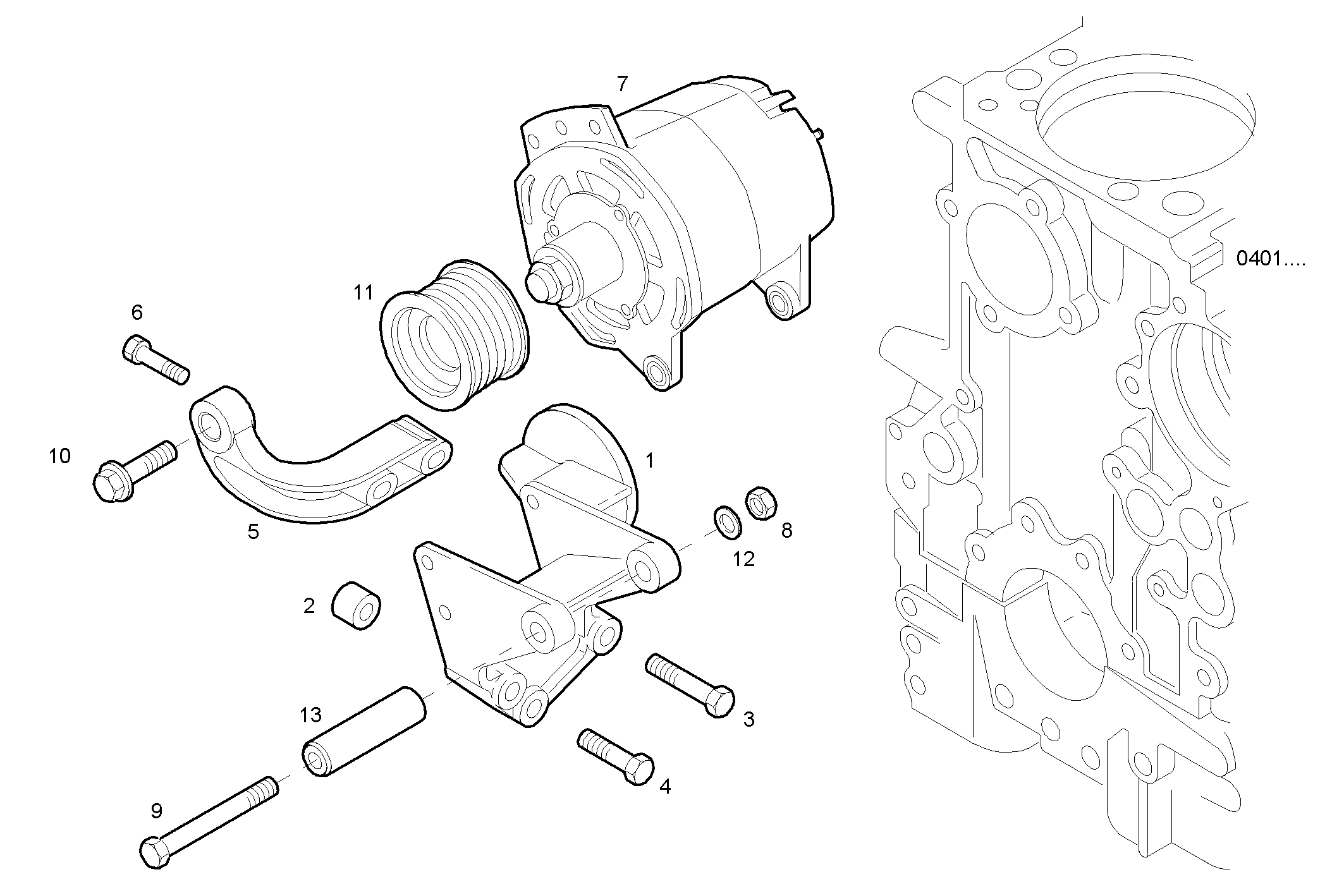

4000.201 GENERATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 500389359 | GENERATOR SUPPORT |
| 2 | 98405462 | DOWEL PIN Ø10,2 MM |
| 3 | 16587824 | HEXAGON BOLT M10X1,5X60 MM |
| 4 | 16587425 | HEXAGON BOLT M10X40 MM |
| 5 | 504037646 | FASTENING BRACKET |
| 6 | 16586925 | HEXAGON BOLT M8X50 MM |
| 7 | 504073358 | ALTERNATOR ASSY [UP TO #…] |
| 7 | 504257252 | ALTERNATOR ASSY [FROM #…] |
| 8 | 17038425 | HEXAGON NUT M12 (8) |
| 9 | 16600024 | HEXAGON BOLT M12X160 MM |
| 10 | 500399332 | HEXAGON BOLT |
| 11 | 504213586 | PULLEY |
| 12 | 17097324 | WASHER Ø12X24 MM |
| 13 | 504042883 | SPACING BAR |
