F3BE0684N*E903

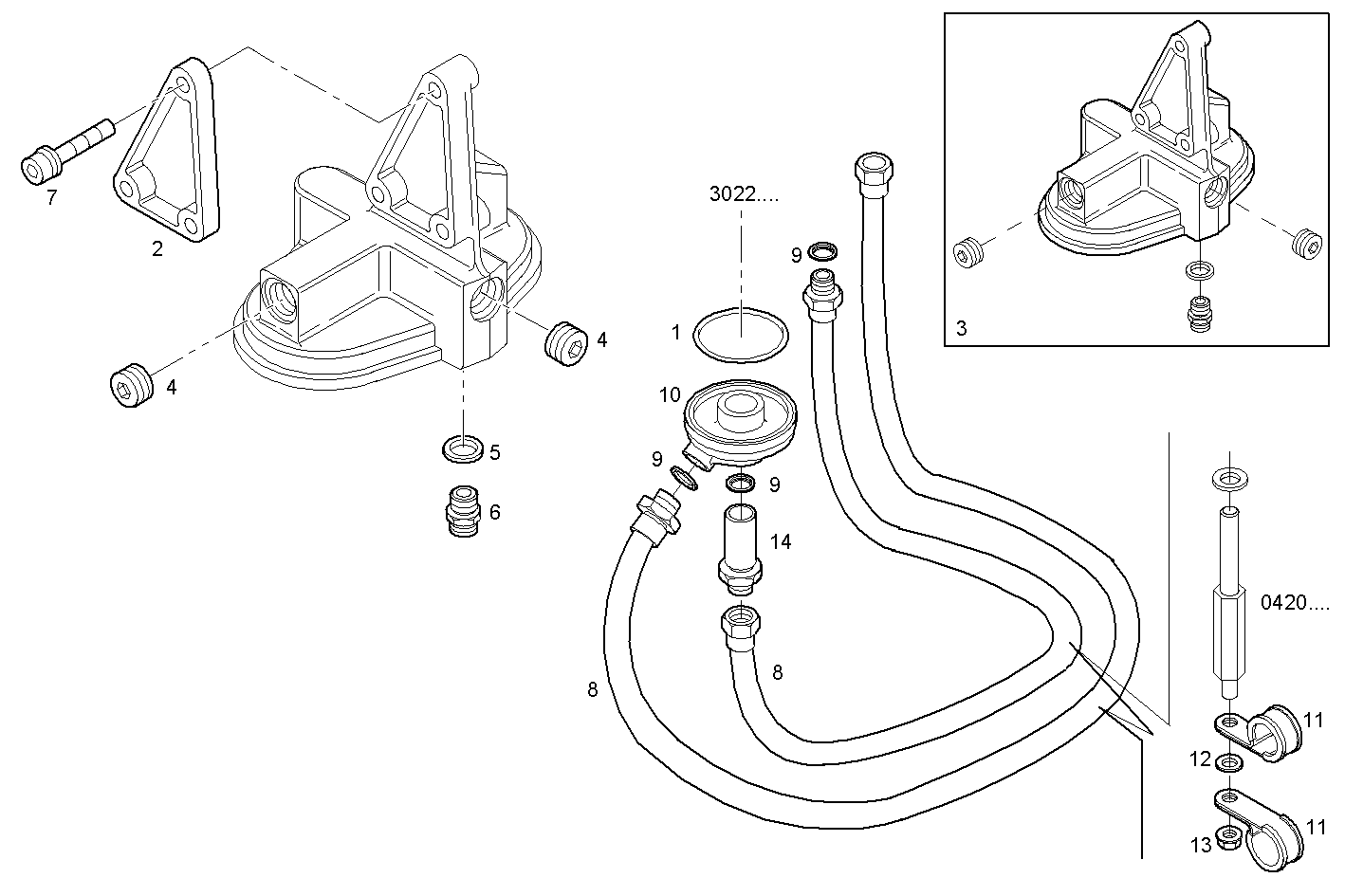

3064.025 OIL DELIVERY LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 17291281 | O-RING Ø94,84 MM SP=3,53 MM |
| 2 | 504286678 | SPACING BAR |
| 3 | 504033726 | OIL FILTER SUPPORT ASSY |
| 4 | 98475100 | THREADED PLUG R3/4x12 |
| 5 | 99434480 | SEAL GASKET Ø30X40 MM |
| 6 | 504037176 | THREADED UNION M30X2 |
| 7 | 16674934 | HEXAGON BOLT M8X80 MM |
| 8 | 504266317 | HOSE |
| 10 | 504005569 | SUPPORT |
| 11 | 17317390 | FASTENING BRACKET Ø28 MM x M8 |
| 12 | 17094924 | WASHER Ø8X16 MM |
| 13 | 17044725 | HEXAGON NUT M8 |
| 14 | 500382730 | PIPE SOCKET |
