F3BE0684N*E906

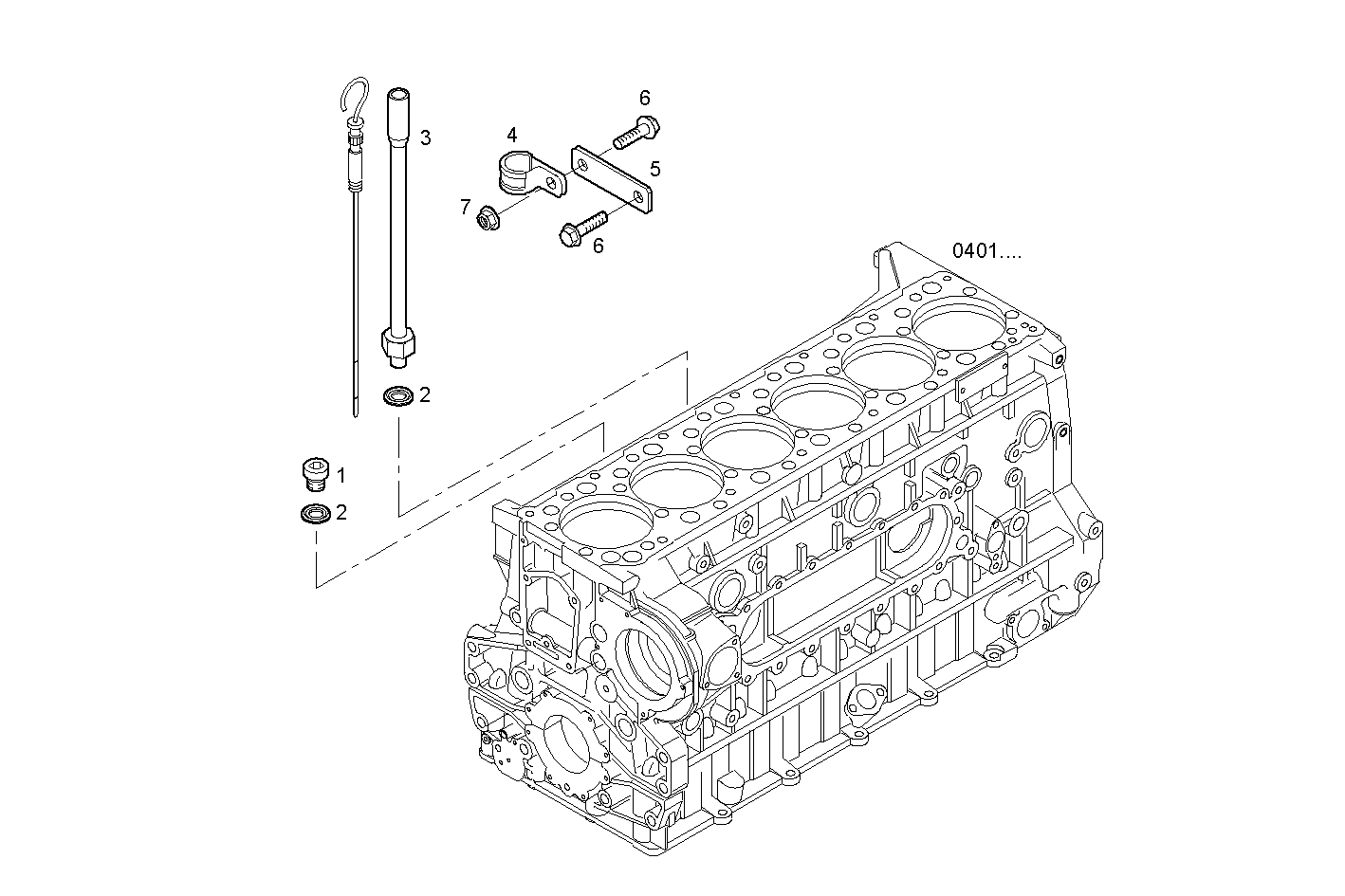

2712.028 OIL DIPSTICK PIPE

Iveco/FPT OIL DIPSTICK PIPE

Item Part number Description
1 16992515 THREADED PLUG M18X1,5
2 99489020 SEAL GASKET Ø18X26 MM SP=1,5 MM
3 504117954 OIL LEVEL TUBE [FROM # 58066]
4 17316699 PIPE CLIP Ø14 MM
5 504066745 RETAINER
6 16586225 HEXAGON BOLT M8X1,25X16 MM
7 17044725 HEXAGON NUT M8
