F3BE0684N*E906

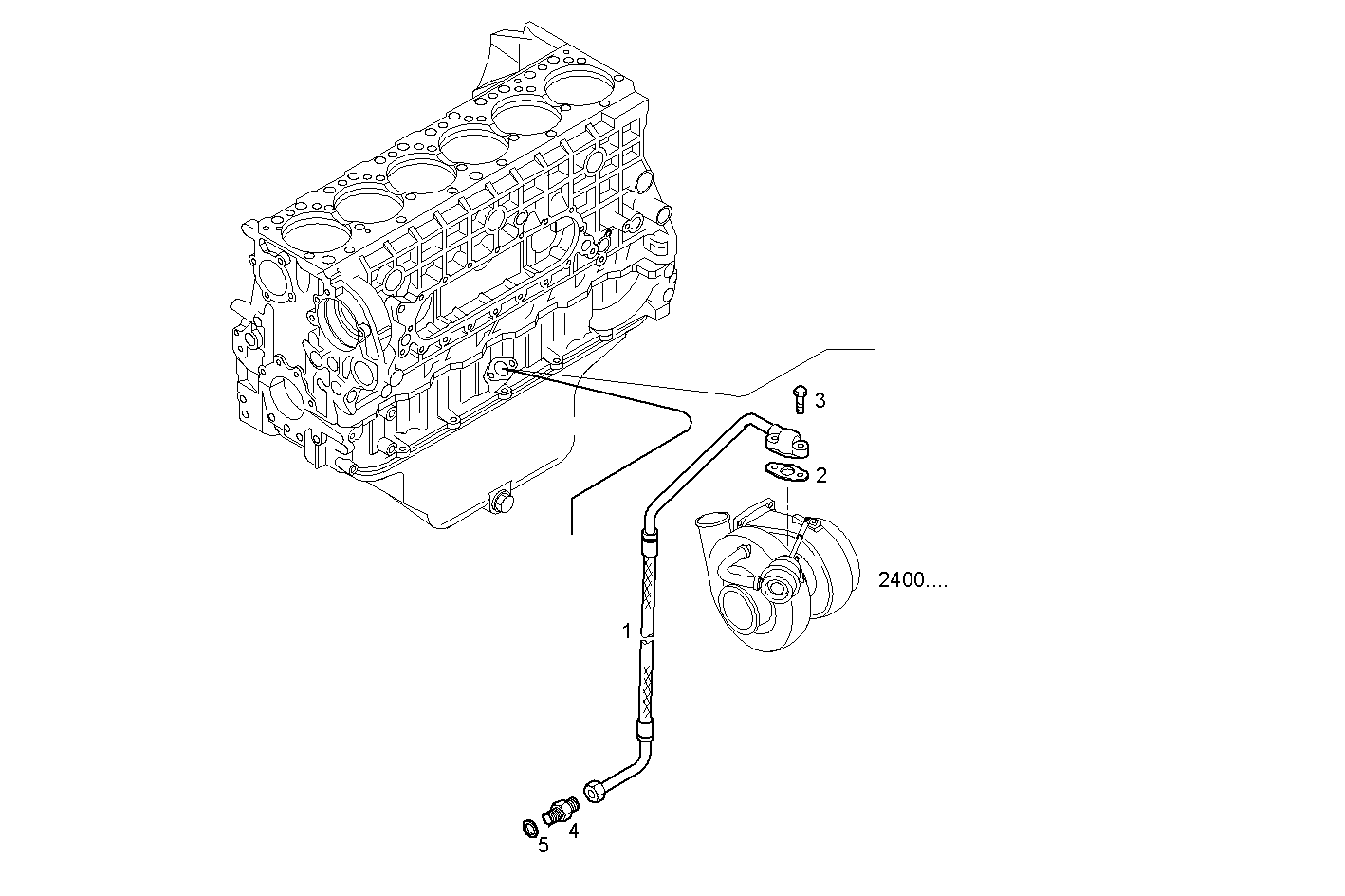

3064.033 OIL DELIVERY LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 504365661 | OIL LINE |
| 2 | 61318303 | GASKET |
| 3 | 16586625 | HEXAGON BOLT M8X35 MM |
| 4 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 5 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
