F3BE0684R*E905

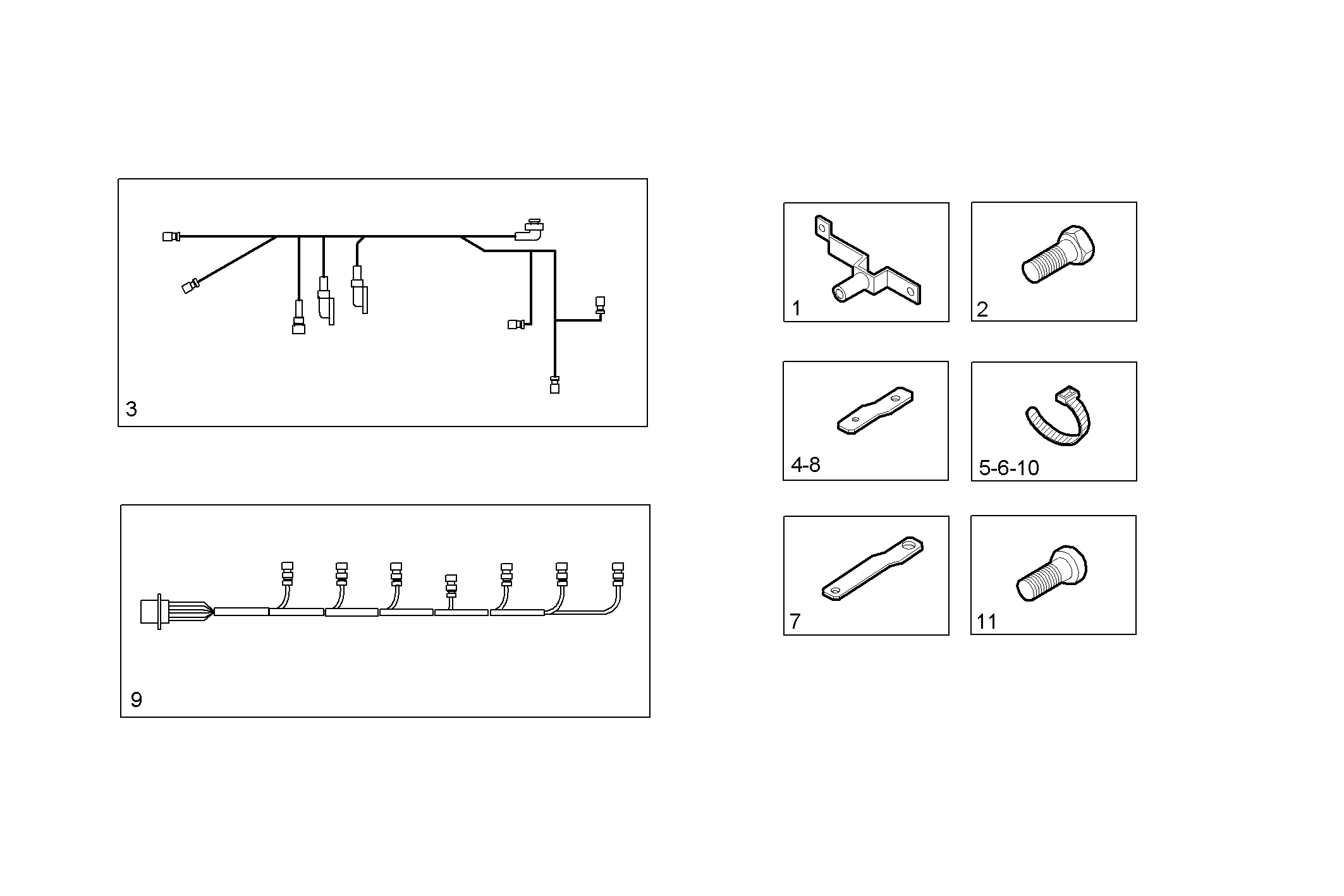

1730.052 ENGINE CABLE
Item | Part number | Description |
---|---|---|
1 | 500371778 | FASTENING BRACKET |
2 | 16592225 | HEXAGON BOLT M8X55 MM |
3 | 504269121 | ENGINE HARNESS |
4 | 504067009 | RETAINER |
5 | 504023286 | CABLE STRAP |
6 | 504099833 | CABLE STRAP |
7 | 504060889 | RETAINER |
8 | 504049754 | FASTENING BRACKET |
9 | 504149935 | WIRE/CABLE |
10 | 42099097 | CABLE STRAP |
11 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
