F3BE0686A*B101

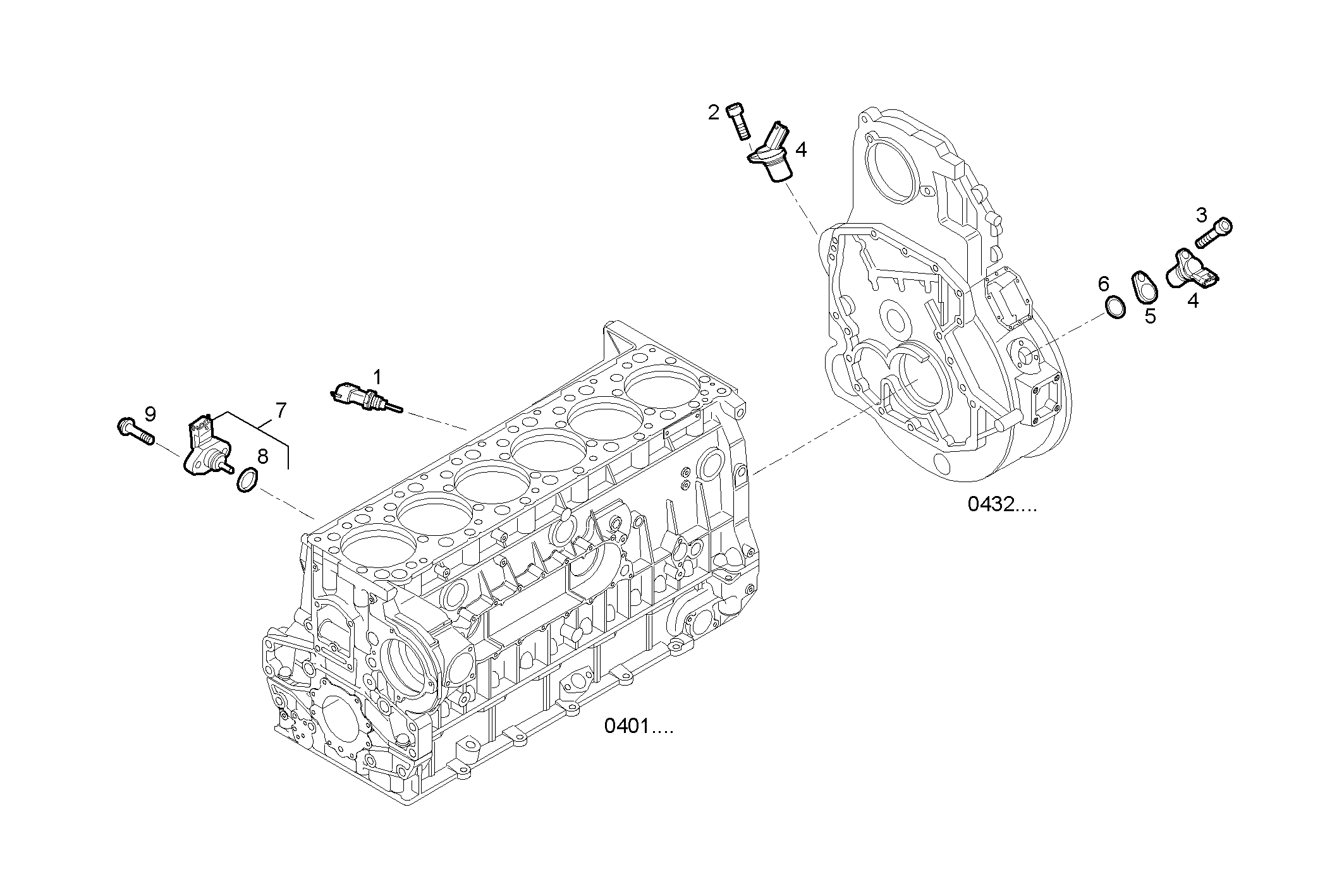

1710.032 SENSORS
| Item | Part number | Description |
|---|---|---|
| 1 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
| 2 | 16689024 | CYLIND-HEAD SCREW M6X12 |
| 3 | 16689325 | CYLIND-HEAD SCREW M6X25 |
| 4 | 504096645 | SENSOR |
| 5 | 504163664 | CONNECTING PLATE |
| 6 | 17278481 | O-RING Ø17,17 MM SP=1,78 MM |
| 7 | 4890193 | SENSOR OIL PRESS. & TEMPER. |
| 8 | 4895477 | O-RING |
| 9 | 4899110 | HEXAGON BOLT |
