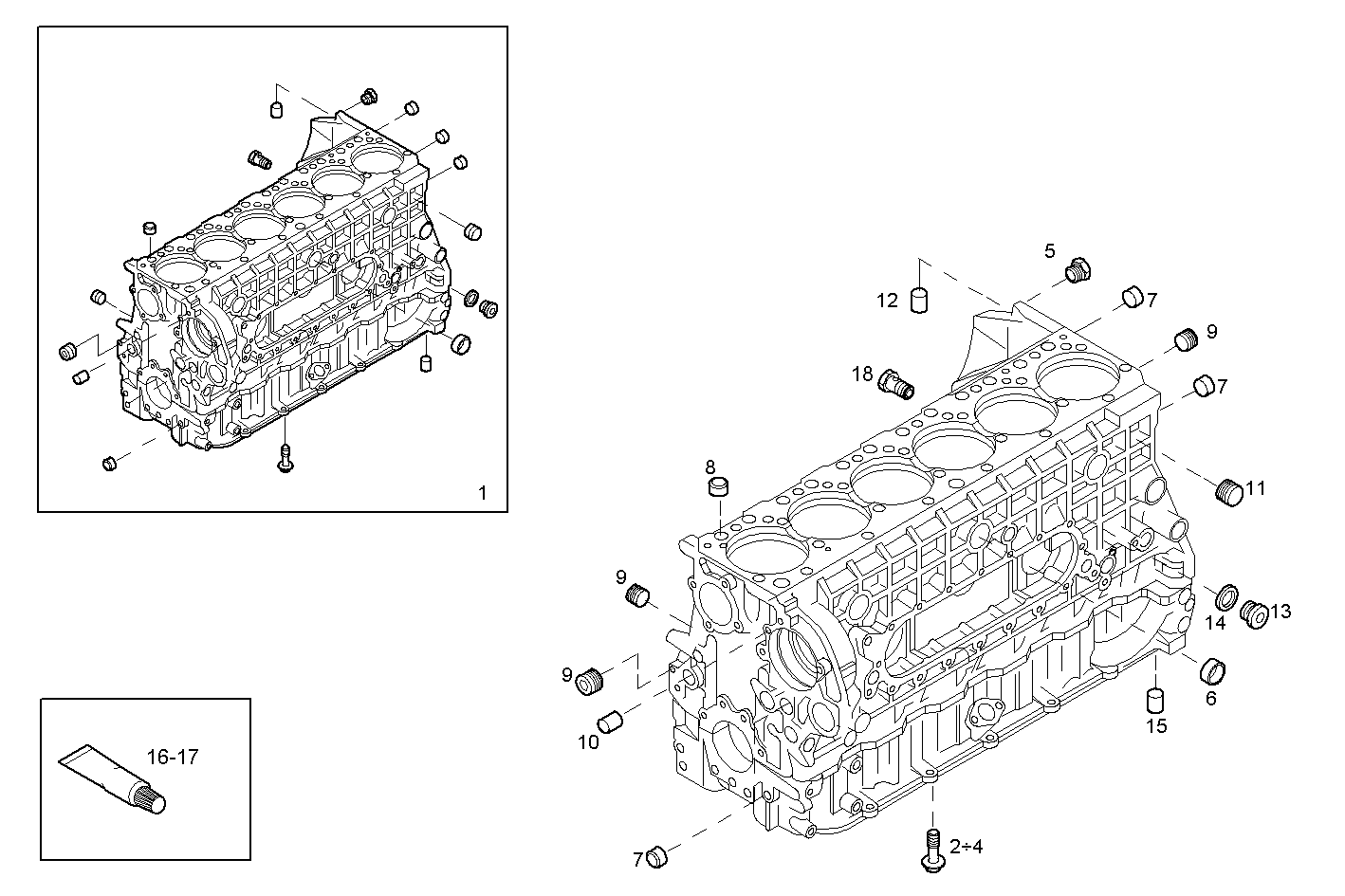

Item |
Part number |
Description |
1 |
504291011 |
CRANKCASE ASSY |
2 |
504108192 |
HEXAGON BOLT M18X2X196 MM |
3 |
99432869 |
HEXAGON BOLT M12X125 MM |
4 |
99433863 |
HEXAGON BOLT M12X58 MM |
5 |
99433597 |
THREADED PLUG M12X16 MM |
6 |
16991370 |
LOCK PLUG Ø45 MM |
7 |
16990870 |
LOCK PLUG Ø28 MM |
8 |
16990670 |
LOCK PLUG Ø22 MM |
9 |
504051238 |
THREADED PLUG DIAM=3/8" |
10 |
504120669 |
LOCK PLUG M24X1,5 [FROM # 44746] |
11 |
504051237 |
THREADED PLUG DIAM=1/4" |
12 |
500368916 |
OIL NOZZLE |
13 |
16992415 |
THREADED PLUG M16X1,5 |
14 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
15 |
99467554 |
DOWEL PIN Ø14 MM |
16 |
2992695 |
ADHESIVE/STICKER LOCTITE |
17 |
2995644 |
ADHESIVE/STICKER |
18 |
504138062 |
PLUG Ø10 MM |
