F3BE3681B*R403

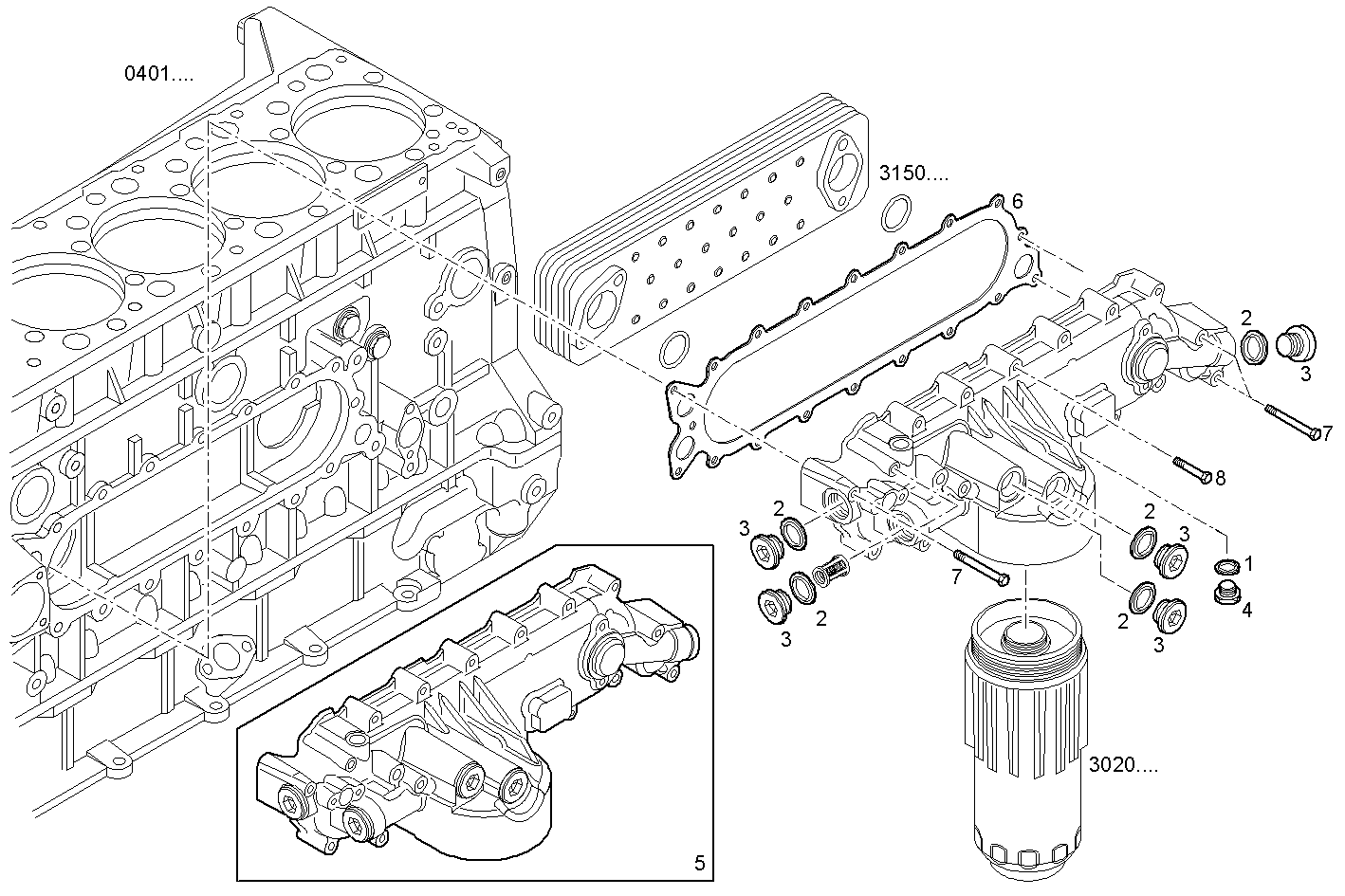

3022.010 HOUSING OIL
| Item | Part number | Description |
|---|---|---|
| 1 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 2 | 99432291 | SEAL GASKET Ø28 MM |
| 3 | 16993511 | LOCK PLUG M28X1,5 |
| 4 | 16992415 | THREADED PLUG M16X1,5 |
| 5 | 504236007 | HEAT EXCHANGER ASSY |
| 6 | 504045796 | FLAT ENGINE GASKET |
| 7 | 16592625 | HEXAGON BOLT M8X80 MM |
| 8 | 16586925 | HEXAGON BOLT M8X50 MM |
