F3BE3681B*R403

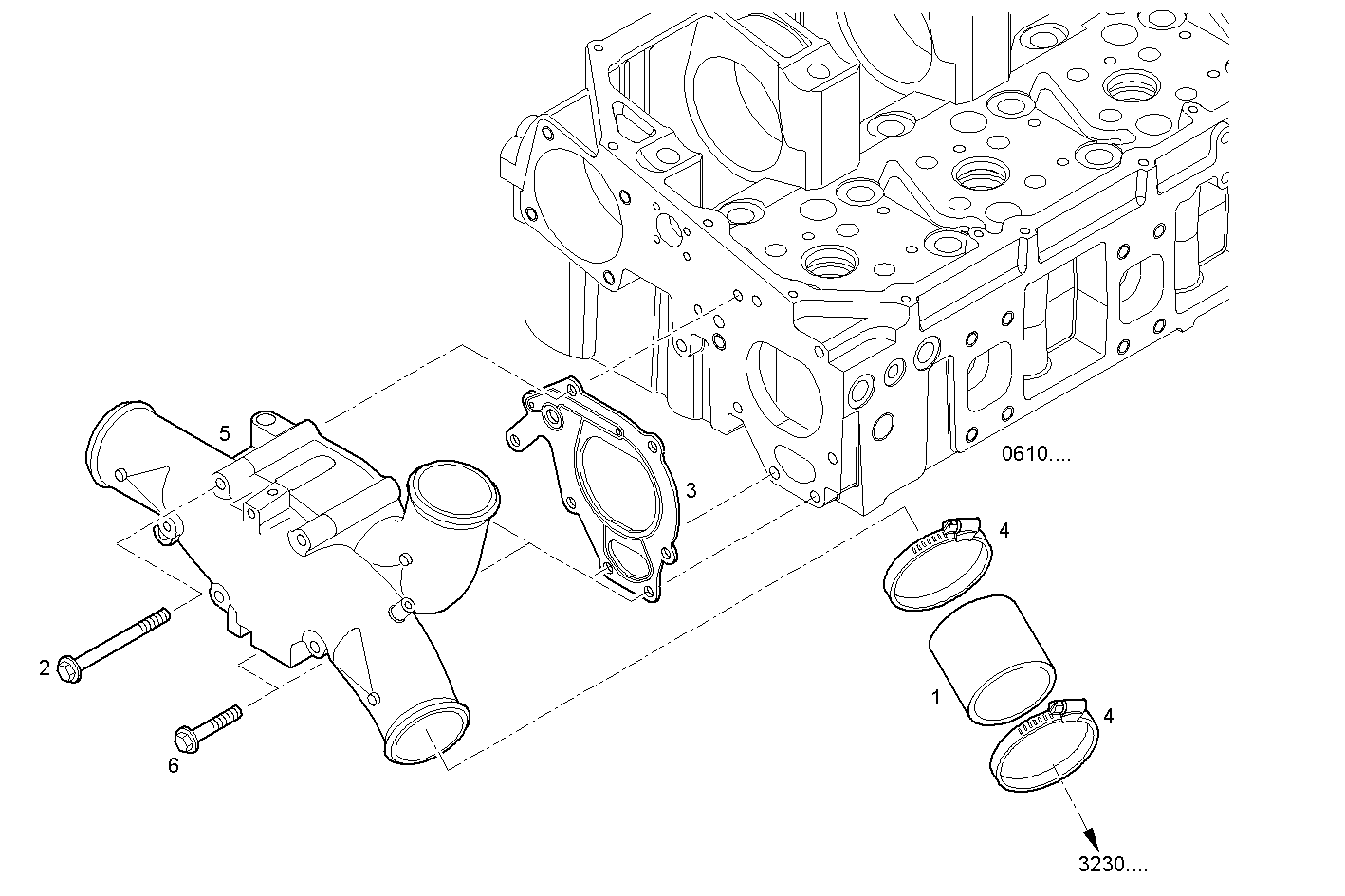

3239.010 HEAD WATER EXIT PIPE
Item | Part number | Description |
---|---|---|
1 | 504000022 | WATER HOSE |
2 | 16598425 | HEXAGON BOLT M8X110 MM |
3 | 500362150 | FLAT ENGINE GASKET |
4 | 17765093 | CLIP Ø60/80 MM |
5 | 500324174 | WATER PIPE |
6 | 16586825 | HEXAGON BOLT M8X1.25X45 MM |
