F3BE3681B*R403

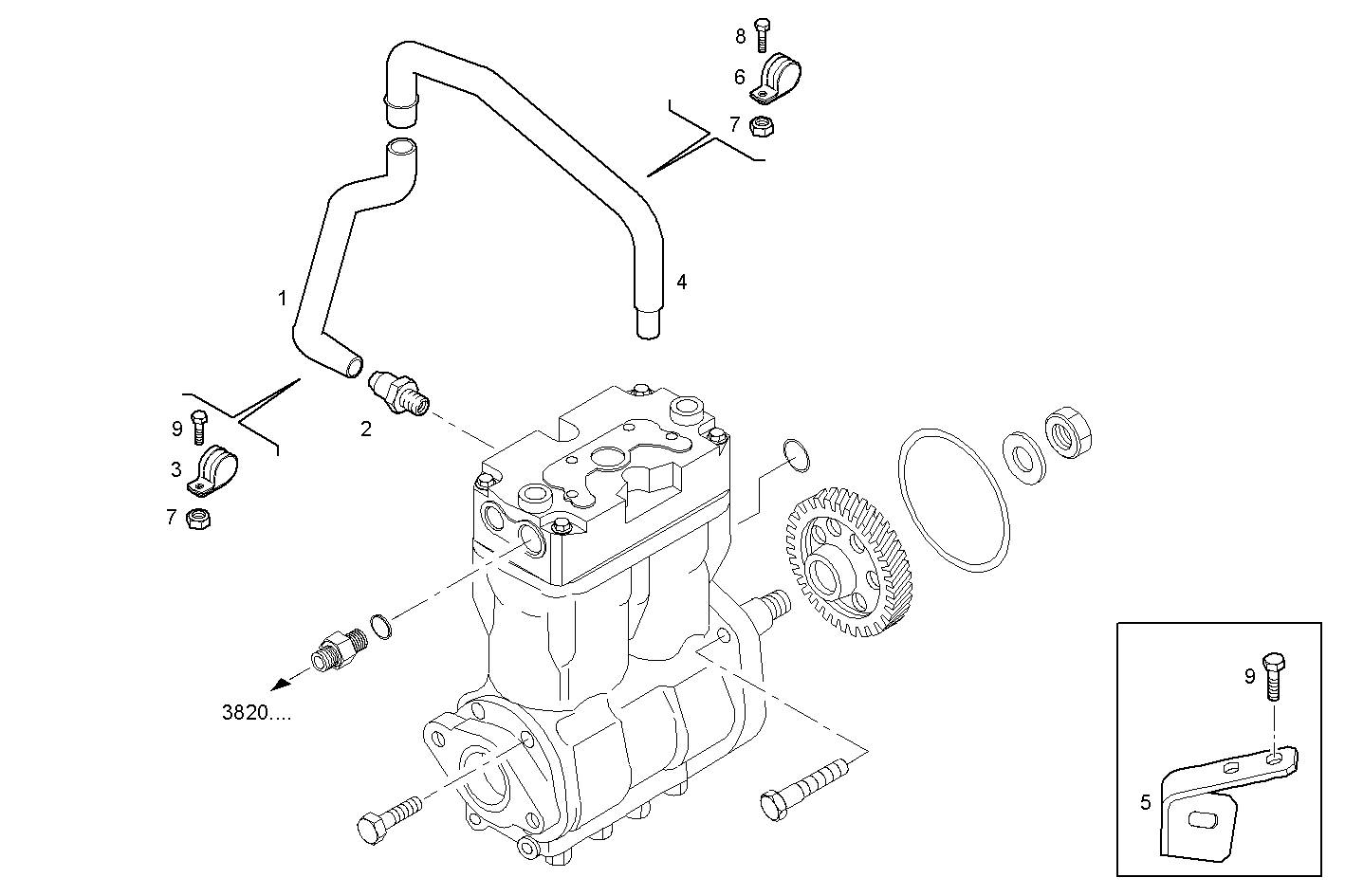

3819.003 AIR COMPESSOR SUCTION
Item | Part number | Description |
---|---|---|
1 | 41296988 | SUCTION LINE |
2 | 41232261 | THREADED UNION |
3 | 41231094 | FASTENING BRACKET |
4 | 41225667 | SUCTION LINE |
5 | 41218148 | SUPPORT |
6 | 17764793 | CLIP Ø32/50 MM |
7 | 16750235 | HEXAGON NUT M8 |
8 | 16597925 | HEXAGON BOLT M8X14 MM |
9 | 16673735 | HEXAGON BOLT M8X25 MM |
