F3BE3681B*R404

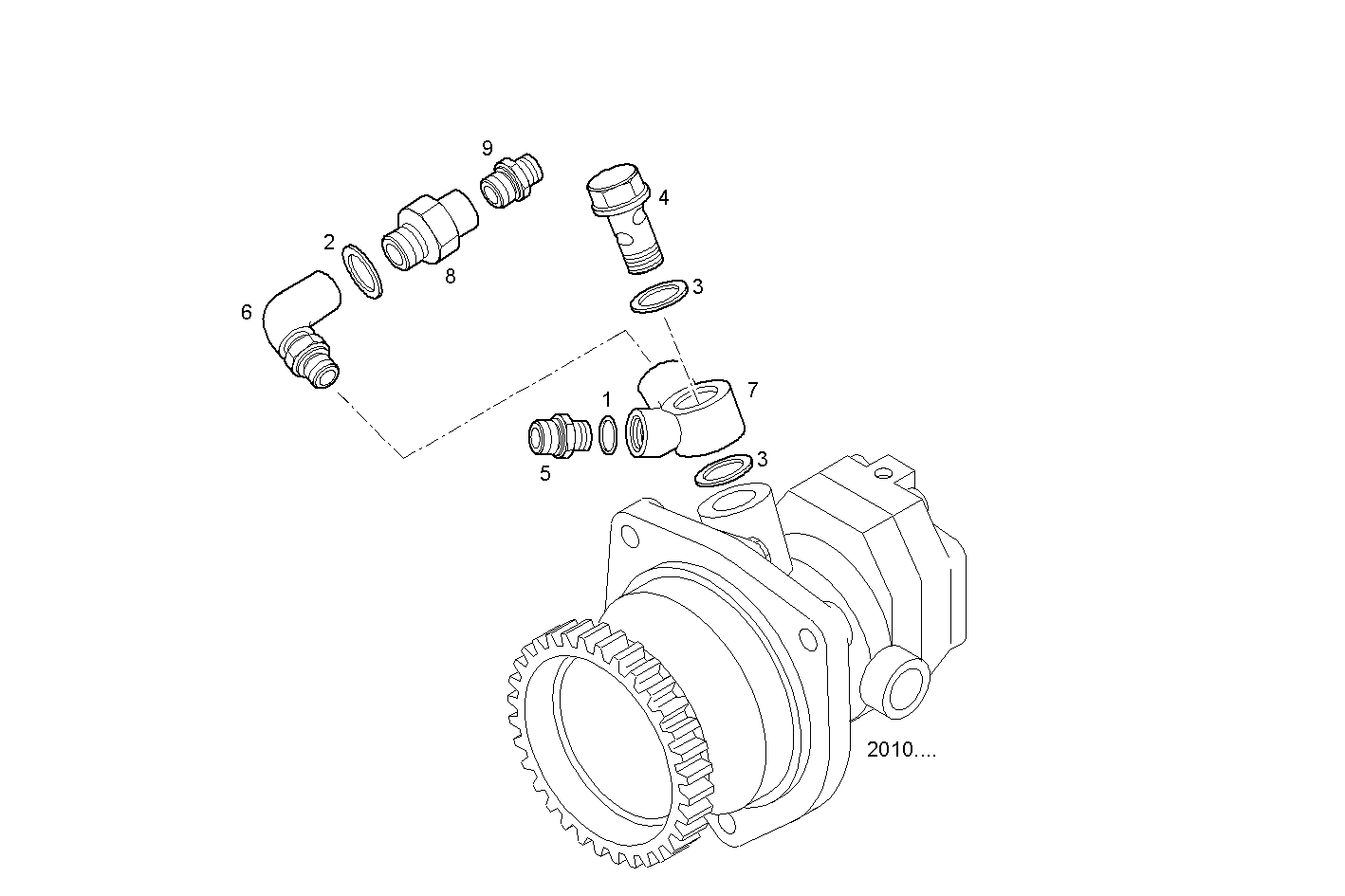

2042.007 EXCESS PRESSURE RELIEF VALVE
| Item | Part number | Description |
|---|---|---|
| 1 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 2 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 3 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 4 | 4864084 | BANJO BOLT M16X1,5 |
| 5 | 16500314 | THREADED UNION M16X1,5 - M18X1,5 |
| 6 | 500350162 | ELBOW COUPLING |
| 7 | 500348306 | PIPE SOCKET |
| 8 | 500328251 | VALVE 0,2-0,3 BAR |
| 9 | 41031567 | THREADED UNION M14X1,5 - M16X1,5 |
