F3BE3681B*R404

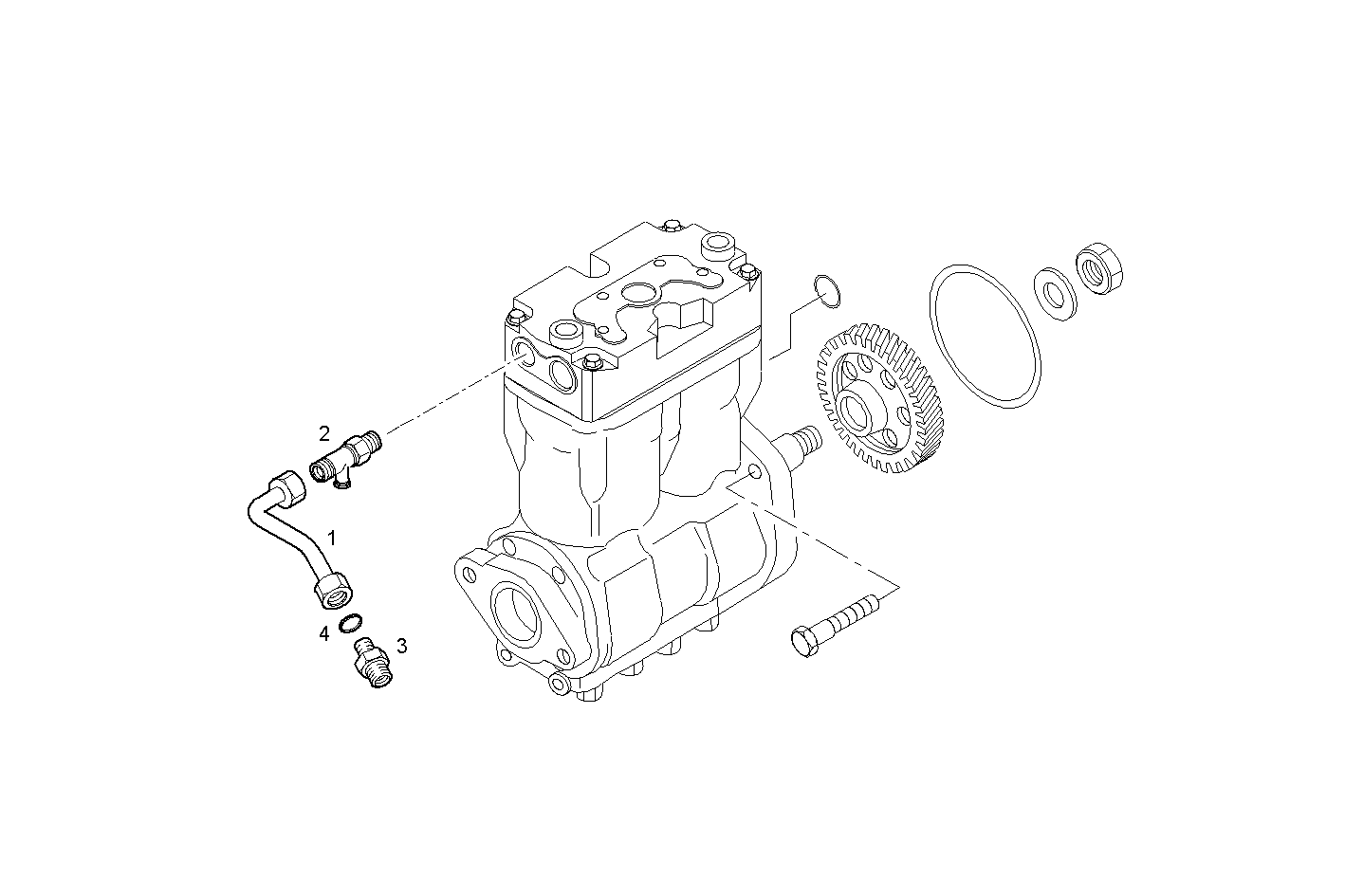

3250.003 COMPRESSOR EXIT PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504141089 | WATER PIPE |
| 2 | 41281587 | T-COUPLING M22-M18X1.5 |
| 3 | 16500415 | PIPE SOCKET |
| 4 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
