F3BE9687A*E001

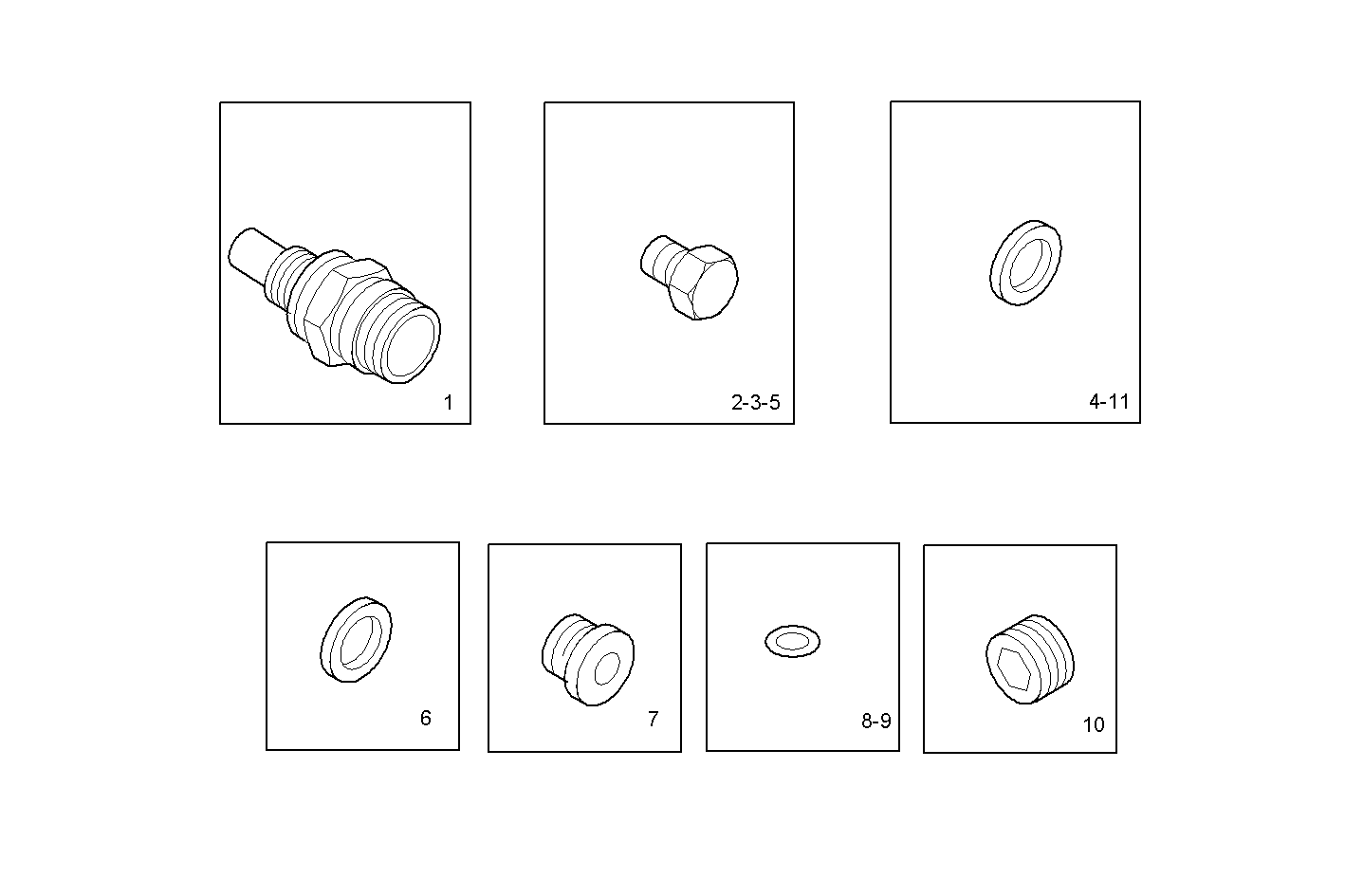

1712.013 SENSORS

Iveco/FPT SENSORS

Item Part number Description
1 500346074 TRANSMITTER Pressure
2 16992211 THREADED PLUG M12X1,5
3 10300611 LOCK PLUG M14X1,5
4 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
5 500337200 THREADED PLUG [FROM # 50368]
6 99489019 WASHER Ø16X24 MM SP=1,5 MM
7 16992415 THREADED PLUG M16X1,5
8 17278181 O-RING [FROM # 50368]
9 500337199 O-RING [FROM # 50368]
10 98472271 THREADED PLUG
11 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
