F3CE0684A*E001

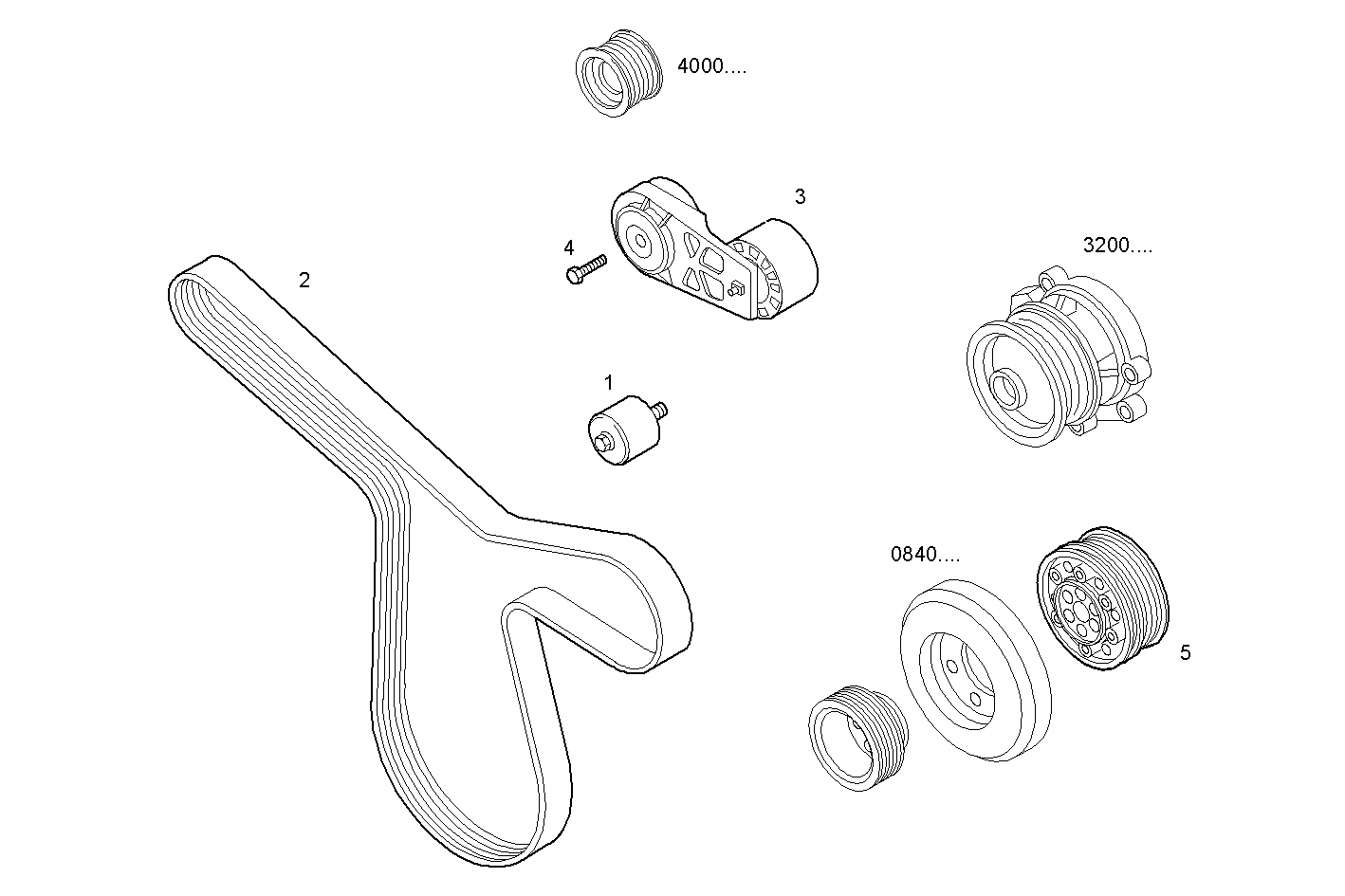

0843.017 DRIVING PULLEY
Item | Part number | Description |
---|---|---|
1 | 504006261 | BELT TENSIONER ASSY |
2 | 504049425 | V-BELT |
3 | 504046191 | BELT TENSIONER |
4 | 16676834 | HEXAGON BOLT M10X70 MM |
5 | 504104318 | PULLEY |
