F3CE0684A*E001

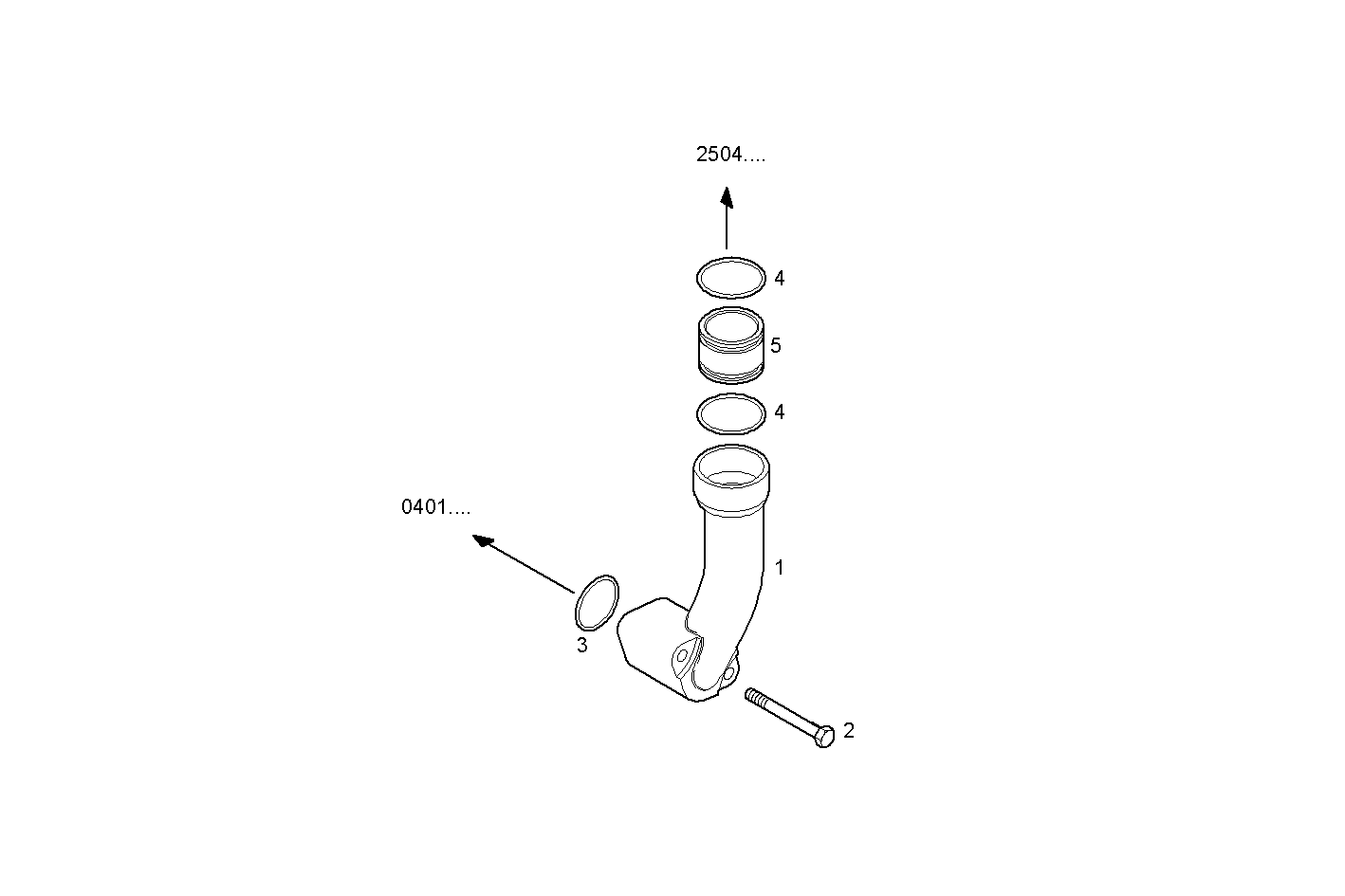

2570.000 RETURN OIL LINE - TURBOCOMPOUND
| Item | Part number | Description |
|---|---|---|
| 1 | 504220962 | OIL LINE |
| 2 | 16592525 | HEXAGON BOLT M8X70 MM |
| 3 | 17289281 | O-RING Ø34,5 MM SP=3,53 MM |
| 4 | 17289481 | O-RING Ø37,69 MM SP=3,53 MM |
| 5 | 504224456 | CONNECTOR SLEEVE |
