F3CE0684B*E005

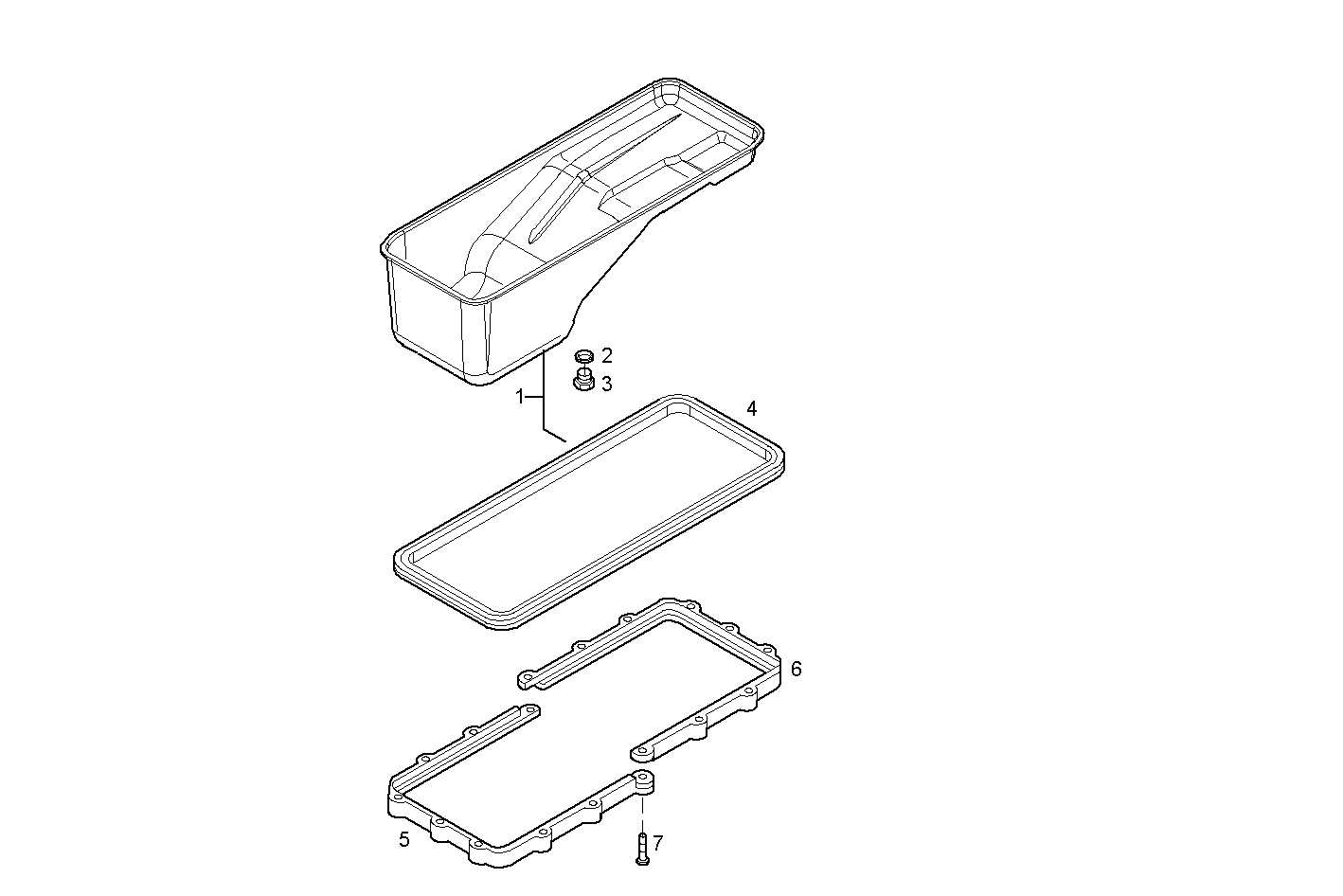

0420.216 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 504025626 | OIL SUMP ASSY |
| 2 | 99489022 | SEAL GASKET Ø22X30 MM SP=1,5 MM |
| 3 | 16992611 | THREADED PLUG M22X1,5 |
| 4 | 504024777 | OIL SUMP GASKET |
| 5 | 99449984 | SPACING BAR [UP TO # 104597] |
| 6 | 99449985 | SPACING BAR [UP TO # 104597] |
| 7 | 504084461 | HEXAGON BOLT |
