F3CE0684B*E005

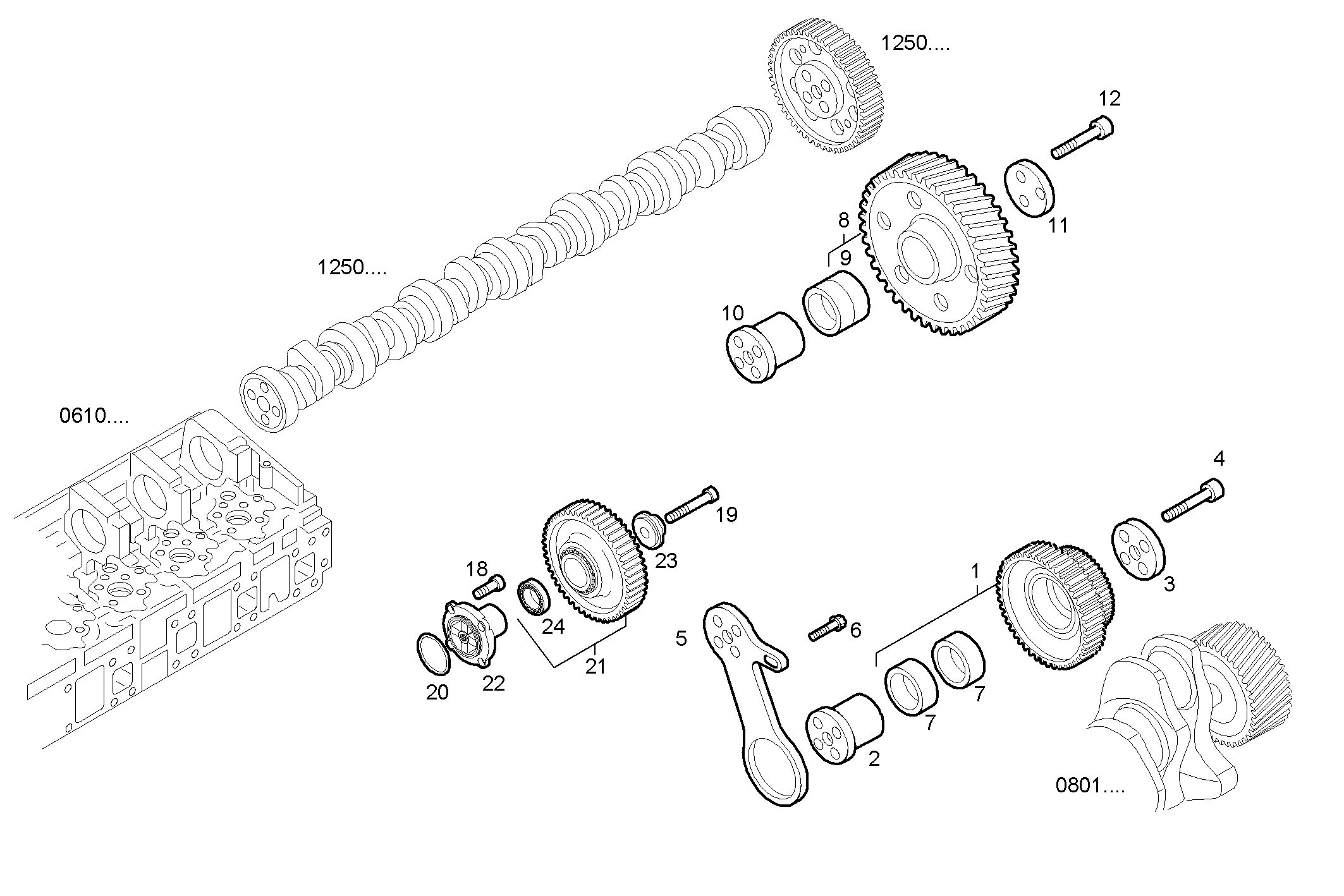

1000.000 GEAR DRIVE
| Item | Part number | Description |
|---|---|---|
| 1 | 500339012 | CAMSHAFT PINION ASSY |
| 2 | 500304182 | FLANGED HUB |
| 3 | 500305012 | STOP WASHER |
| 4 | 16679034 | HEXAGON BOLT M12X90 MM |
| 5 | 504305828 | RETAINER |
| 6 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
| 7 | 98475174 | BUSH |
| 8 | 500304189 | CAMSHAFT PINION ASSY |
| 9 | 500304204 | DOWEL BUSH |
| 10 | 500304187 | PIN |
| 11 | 500305013 | STOP WASHER |
| 12 | 16679134 | HEXAGON BOLT M12X100 MM |
| 18 | 16710435 | SOCKET-HEAD SCREW |
| 19 | 16711335 | CYLIND-HEAD SCREW M12X1,75X80 MM |
| 20 | 17280580 | WASHER |
| 21 | 504019580 | GEAR ASSY |
| 22 | 504088440 | SHAFT |
| 23 | 504088441 | STOP WASHER |
| 24 | 504041494 | ROLLER BEARING |
