F3CE0684B*E005

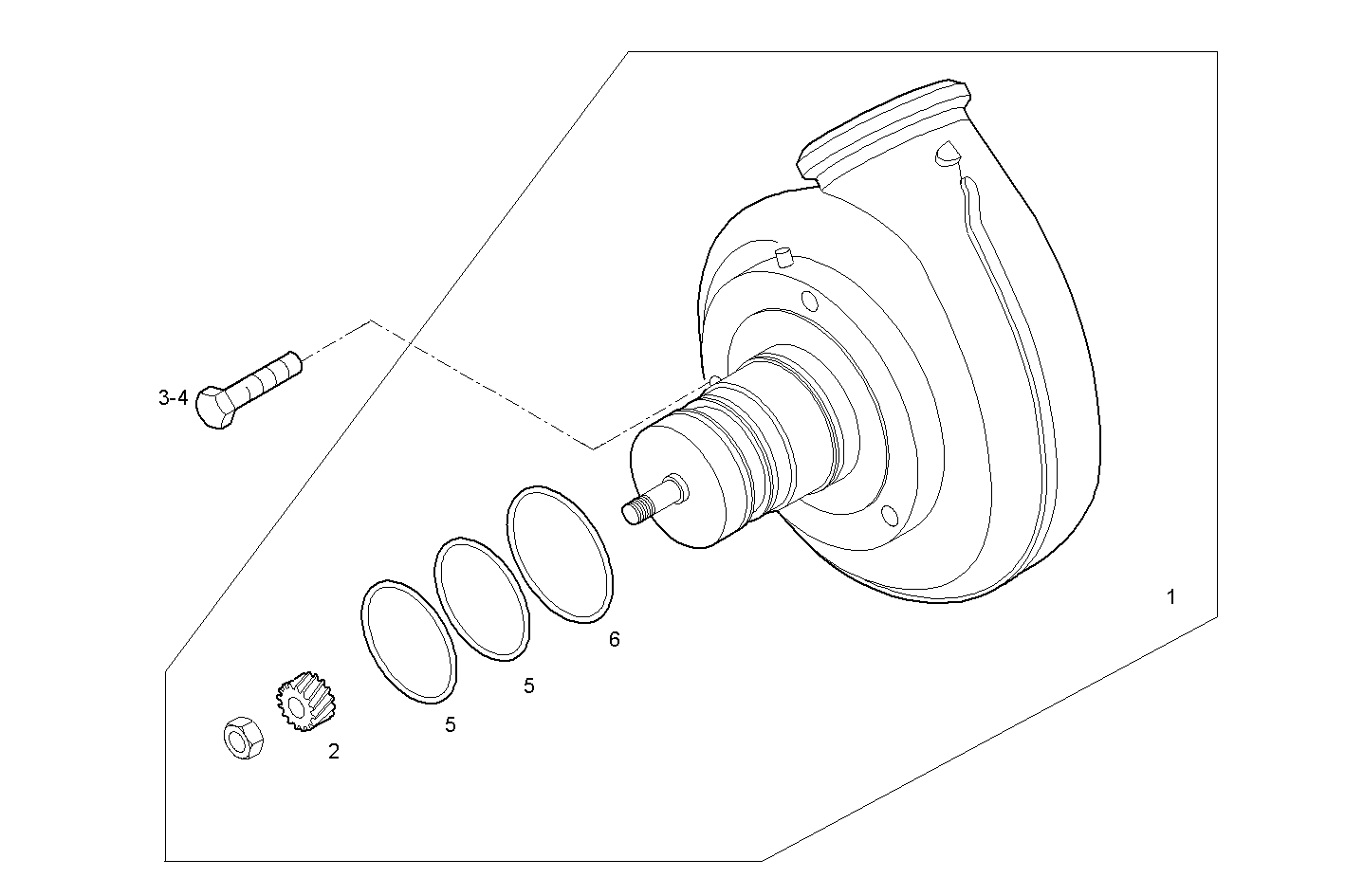

2504.000 POWER TURBINE - TURBOCOMPOUND
| Item | Part number | Description |
|---|---|---|
| 1 | 504271280 | TURBOCHARGER ASSY |
| 2 | 504170759 | GEAR |
| 3 | 16587625 | HEXAGON BOLT M10X50 MM |
| 4 | 16676834 | HEXAGON BOLT M10X70 MM |
| 5 | 17290381 | O-RING Ø66,27 MM SP=3,53 MM |
| 6 | 17290781 | O-RING Ø78,97X3,53 MM |
