F3CE0684B*E005

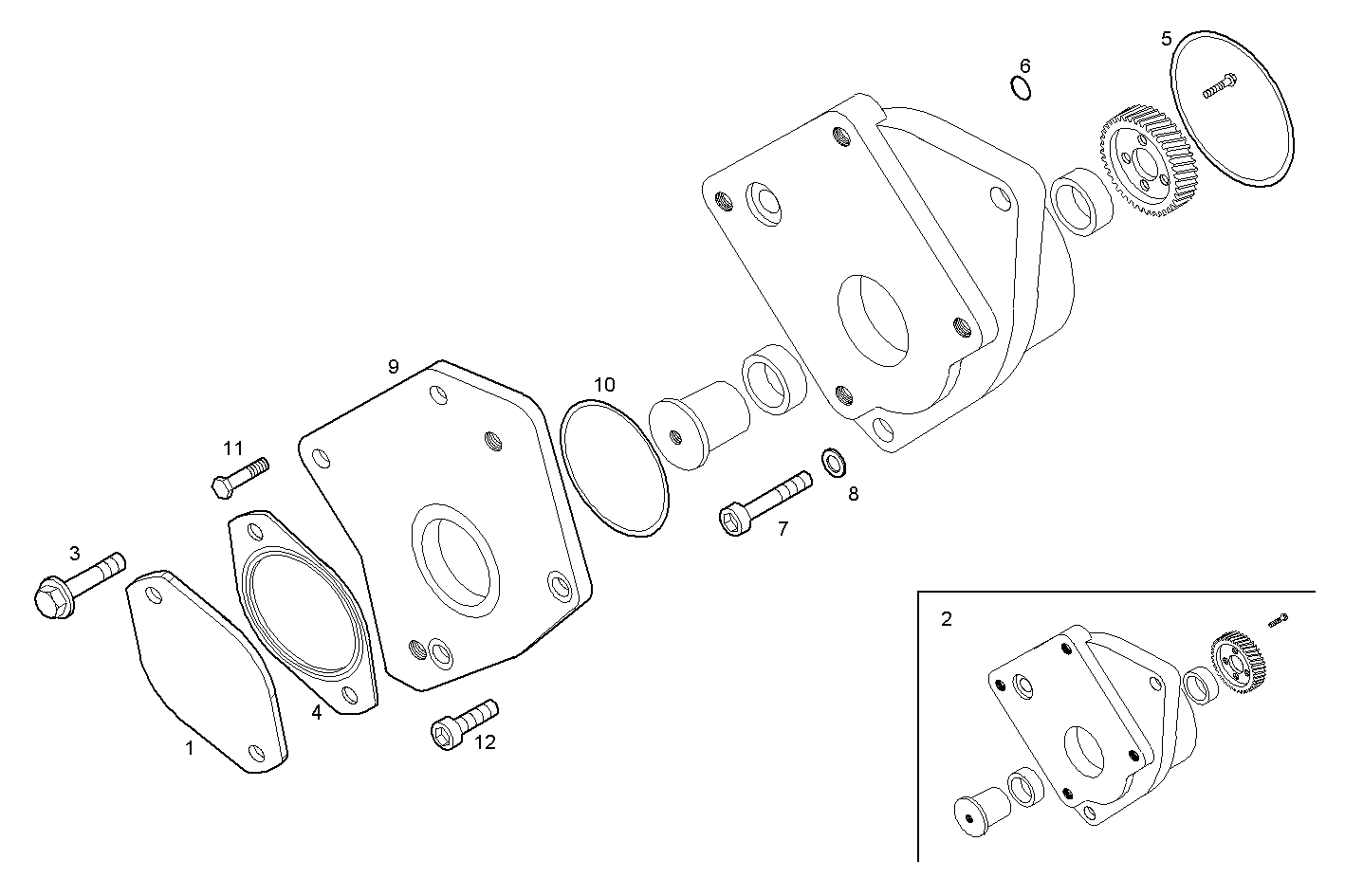

3500.060 POWER TAKE OFF

Iveco/FPT POWER TAKE OFF

Item Part number Description
1 504049033 COVER
2 504083509 POWER TAKE OFF ASSY
3 16692225 HEXAGON BOLT
4 4895329 FLAT ENGINE GASKET
5 17292281 O-RING Ø126,59 MM SP=3,53 MM
6 17281381 O-RING Ø9,19 MM [FROM TO # 62977]
7 1103790 CYLIND-HEAD SCREW M12X45 MM
8 17095224 WASHER Ø12X20 MM
9 504061368 SPACING BAR
10 504042516 O-RING
11 16587325 HEXAGON BOLT M10X35 MM
12 16693724 CYLIND-HEAD SCREW M12
