F3CE0684B*E005

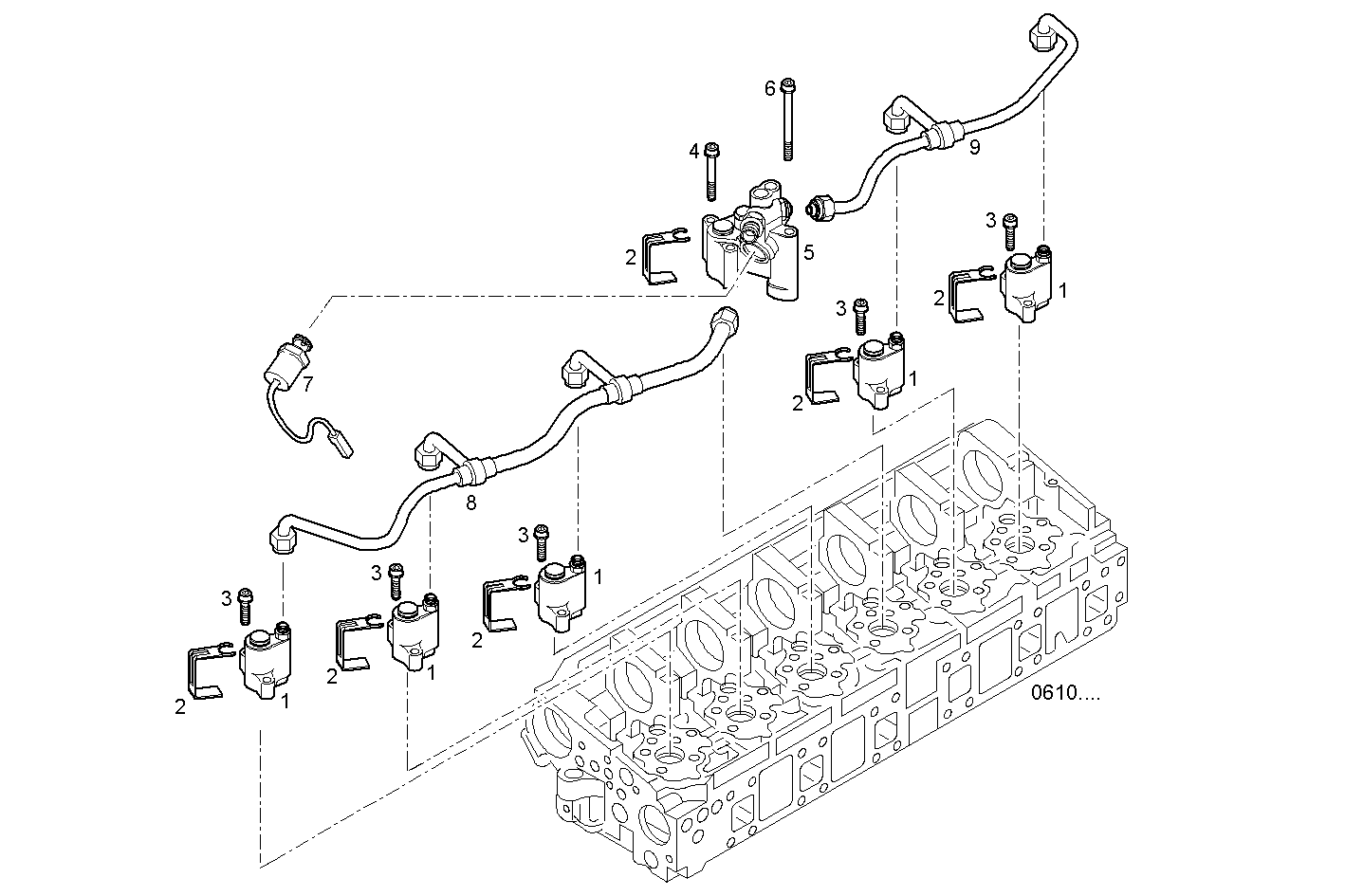

3700.007 ENGINE EXHAUST BRAKE
Item | Part number | Description |
---|---|---|
1 | 504222834 | ENGINE BRAKE VALVE |
2 | 500376911 | RETAINING SPRING |
3 | 16707334 | CYLIND-HEAD SCREW M8X30 MM |
4 | 16691324 | CYLIND-HEAD SCREW M8X60 MM |
5 | 504222833 | ENGINE BRAKE VALVE |
6 | 16691724 | CYLIND-HEAD SCREW |
7 | 504305972 | ELECTROVALVE |
8 | 500336756 | HYDRAULIC LINE |
9 | 500336760 | HYDRAULIC LINE |
