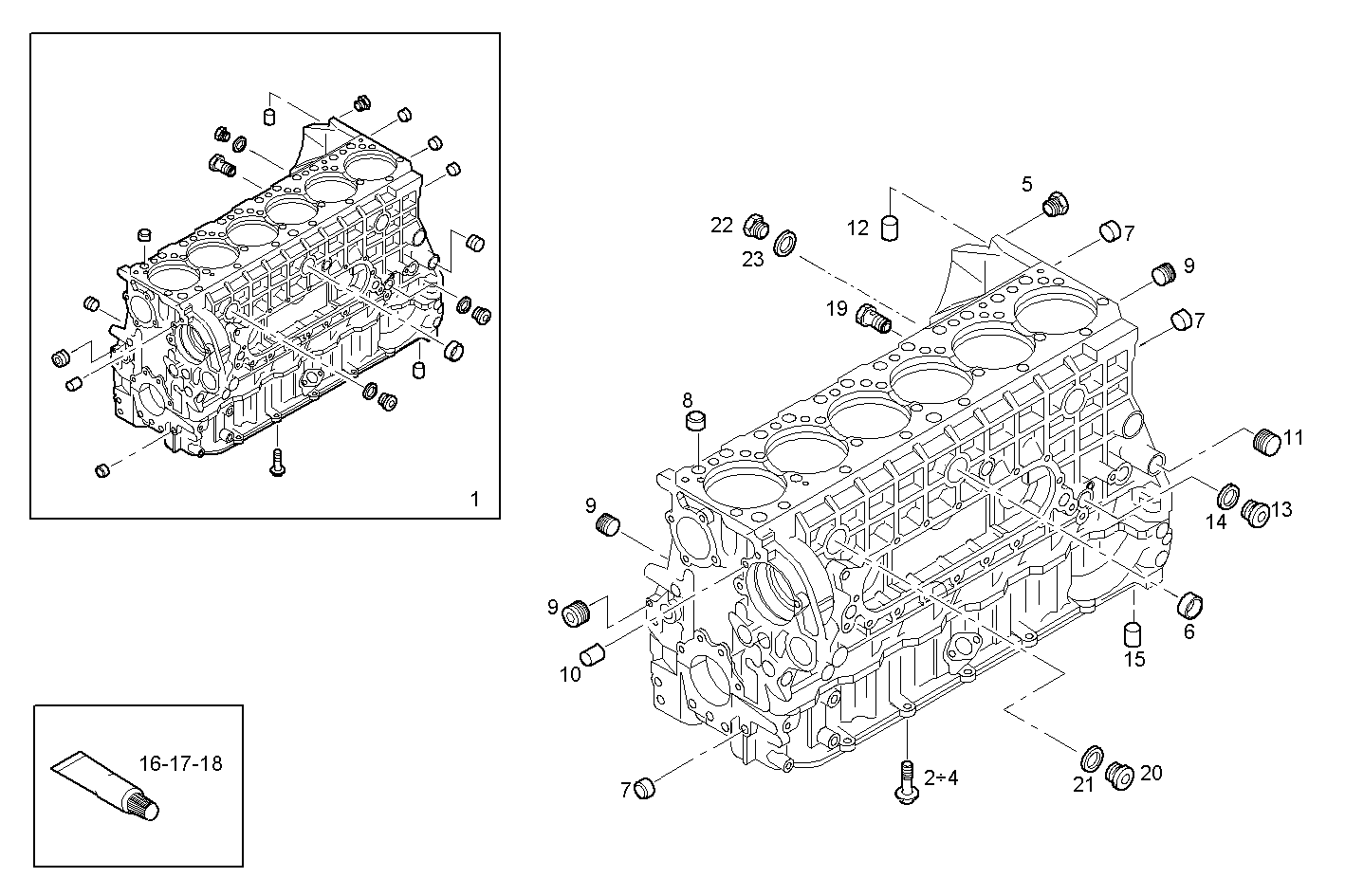

| Item |
Part number |
Description |
|
1 |
504244700 |
CRANKCASE |
|
2 |
504108192 |
HEXAGON BOLT M18X2X196 MM |
|
3 |
99432869 |
HEXAGON BOLT M12X125 MM |
|
4 |
99433863 |
HEXAGON BOLT M12X58 MM |
|
5 |
99433597 |
THREADED PLUG M12X16 MM |
|
6 |
16991370 |
LOCK PLUG Ø45 MM |
|
7 |
16990870 |
LOCK PLUG Ø28 MM |
|
8 |
16990670 |
LOCK PLUG Ø22 MM |
|
9 |
504051238 |
THREADED PLUG DIAM=3/8" |
|
10 |
504120669 |
LOCK PLUG M24X1,5 [FROM # 44746] |
|
11 |
98472271 |
THREADED PLUG |
|
12 |
500368916 |
OIL NOZZLE |
|
13 |
16992415 |
THREADED PLUG M16X1,5 |
|
14 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
15 |
99467554 |
DOWEL PIN Ø14 MM |
|
16 |
2992695 |
ADHESIVE/STICKER LOCTITE |
|
17 |
2995644 |
ADHESIVE/STICKER |
|
18 |
2992693 |
ADHESIVE/STICKER |
|
19 |
504138062 |
PLUG Ø10 MM |
|
20 |
16992515 |
THREADED PLUG M18X1,5 |
|
21 |
99489020 |
SEAL GASKET Ø18X26 MM SP=1,5 MM |
