F3CE0684C*E002

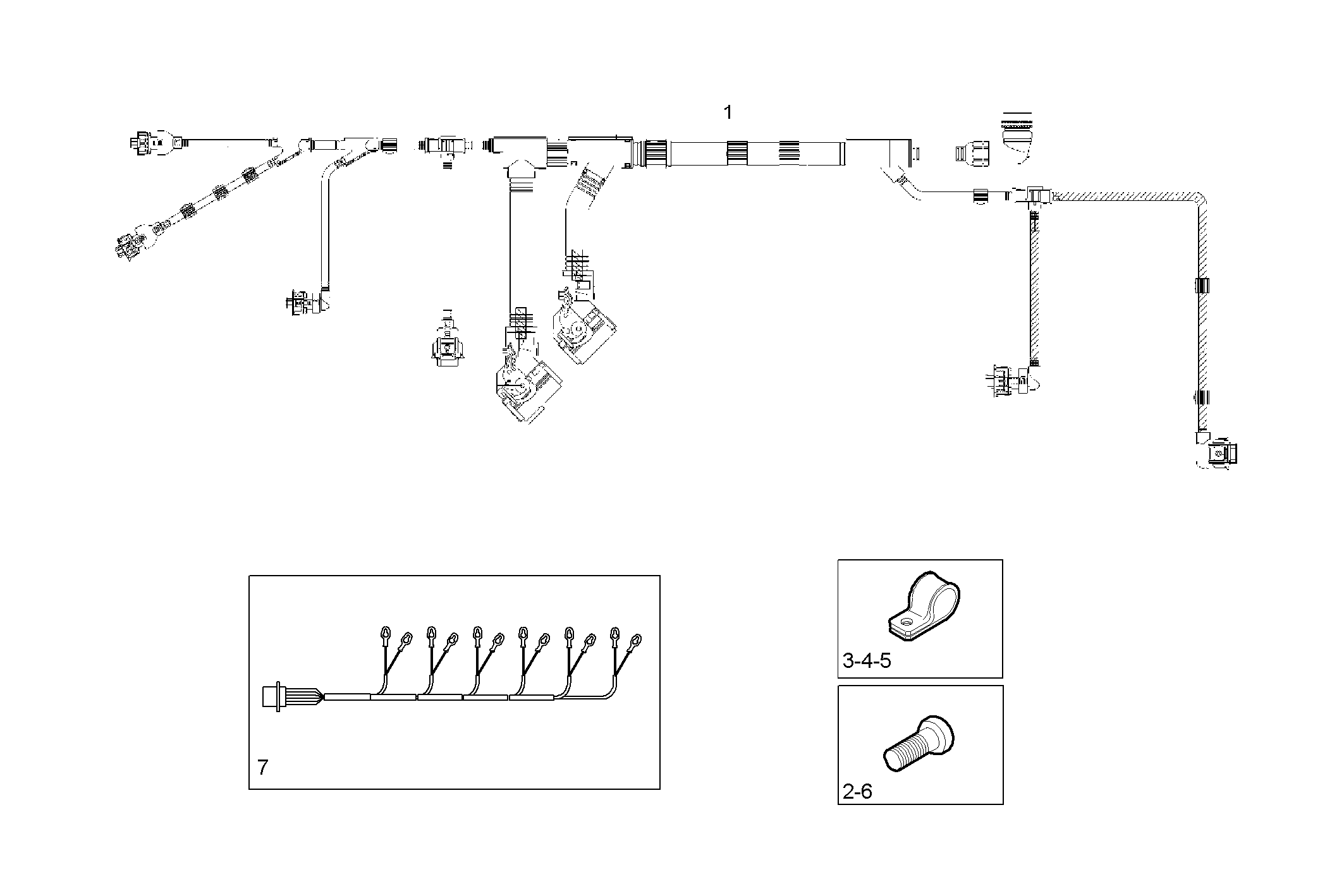

1730.035 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 504217580 | SET OF WIRING |
| 2 | 11612224 | HEXAGON BOLT M6X12 MM |
| 3 | 17310001 | FASTENING BRACKET Ø4 MM |
| 4 | 17310401 | FASTENING BRACKET Ø8 MM |
| 5 | 17310501 | FASTENING BRACKET Ø10 MM |
| 6 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 7 | 504149937 | WIRE/CABLE |
