F3CE0684C*E002

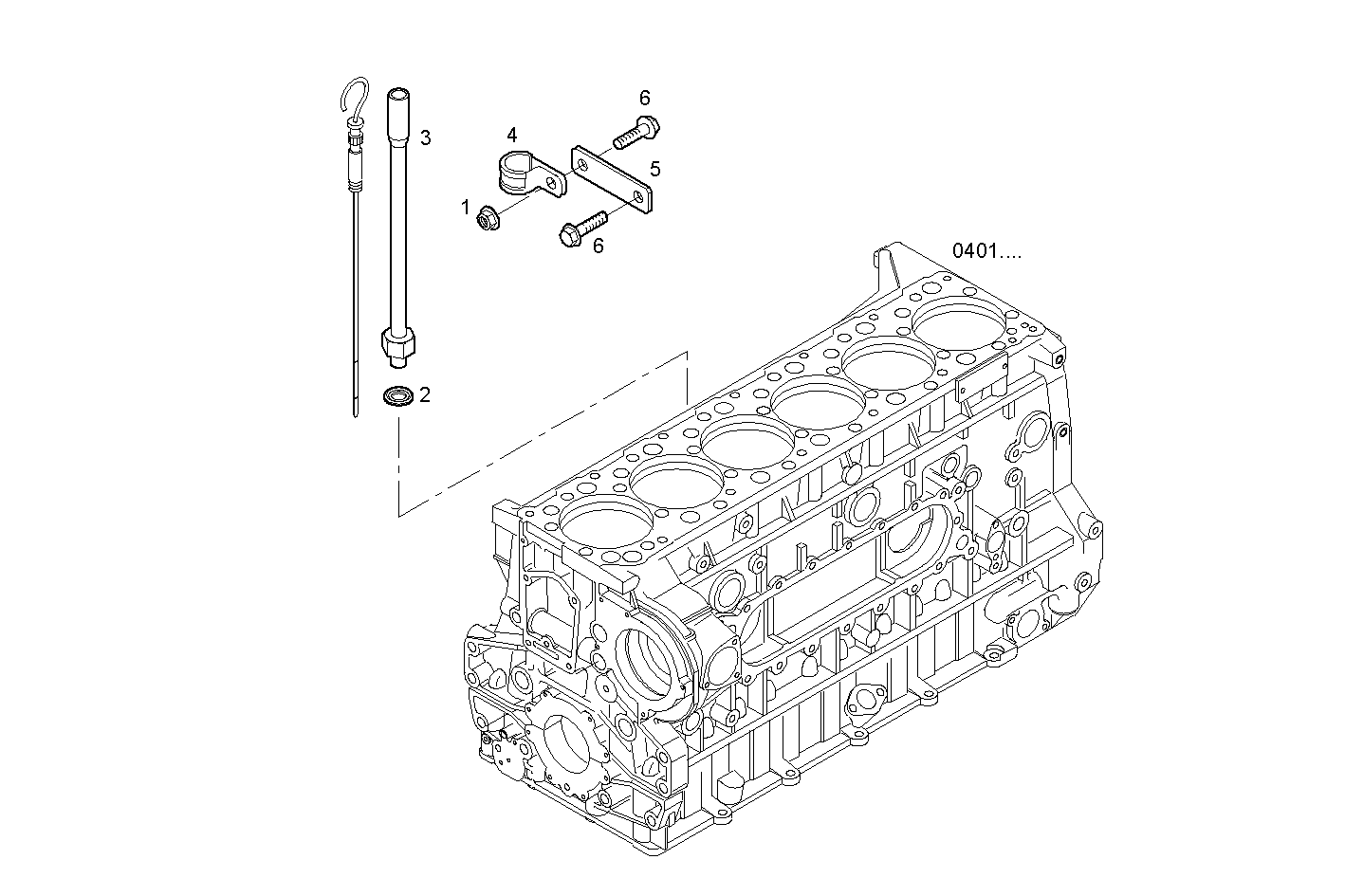

2712.029 OIL DIPSTICK PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 17044725 | HEXAGON NUT M8 |
| 2 | 99489020 | SEAL GASKET Ø18X26 MM SP=1,5 MM |
| 3 | 504117954 | OIL LEVEL TUBE [FROM # 58066] |
| 4 | 17316699 | PIPE CLIP Ø14 MM |
| 5 | 504066745 | RETAINER |
| 6 | 16586225 | HEXAGON BOLT M8X1,25X16 MM |
