F4AE0481C*C102

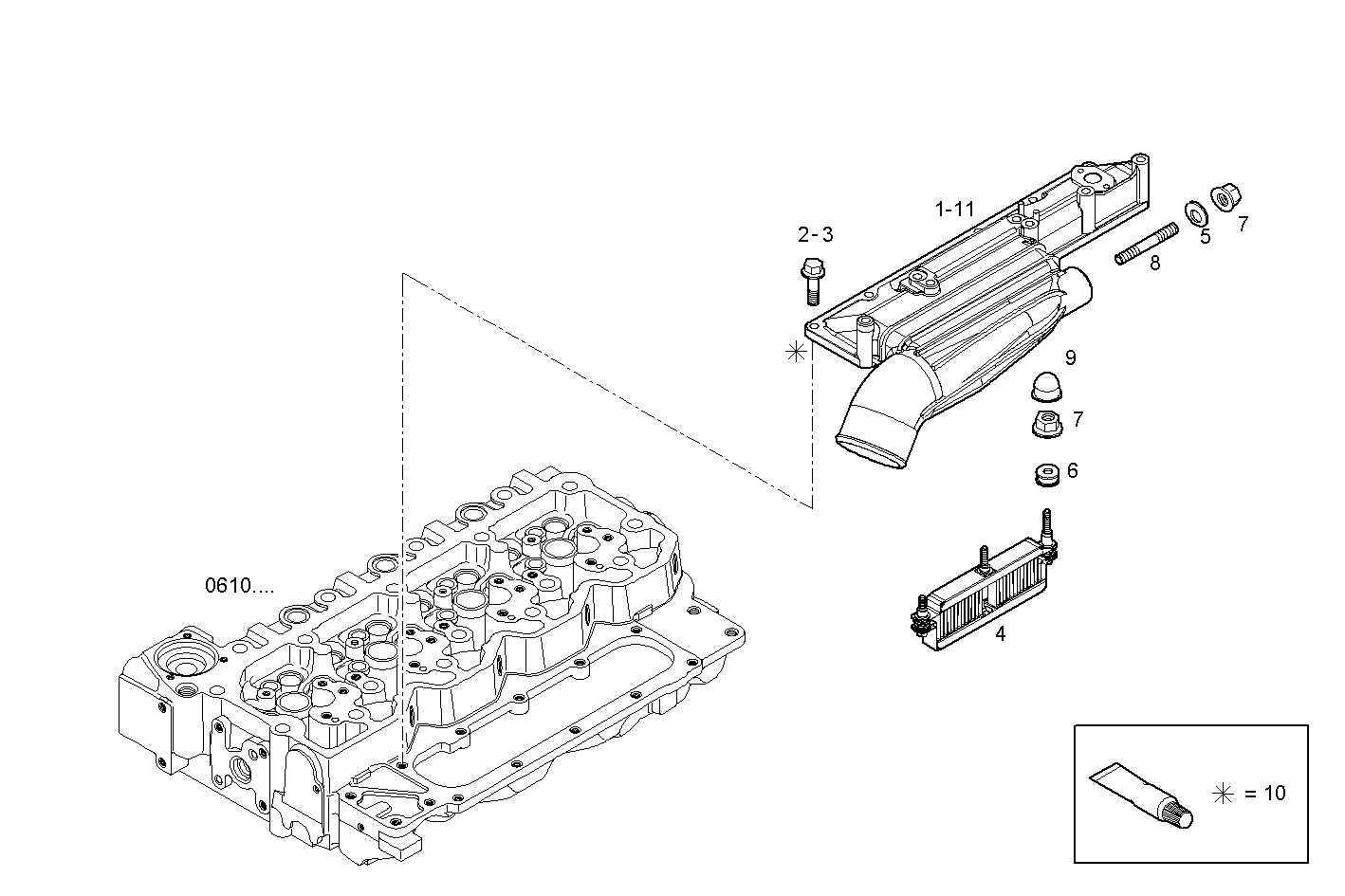

0710.217 INTAKE MANIFOLD
Item | Part number | Description |
---|---|---|
1 | 4897763 | INTAKE ELBOW [UP TO # 158927] |
2 | 4895432 | HEXAGON BOLT M8x1,25x70 MM |
3 | 4899039 | HEXAGON BOLT M8X1,25X25 MM |
4 | 4896657 | HEATER |
5 | 4894048 | WASHER Ø6 MM |
6 | 4897765 | SPACING BAR |
7 | 16750131 | HEXAGON NUT M6 |
8 | 16745024 | STUD M6X12X20 MM |
9 | 4896263 | CAP |
10 | 2995644 | ADHESIVE/STICKER |
11 | 504070268 | INTAKE ELBOW |
