F4AE0481C*C102

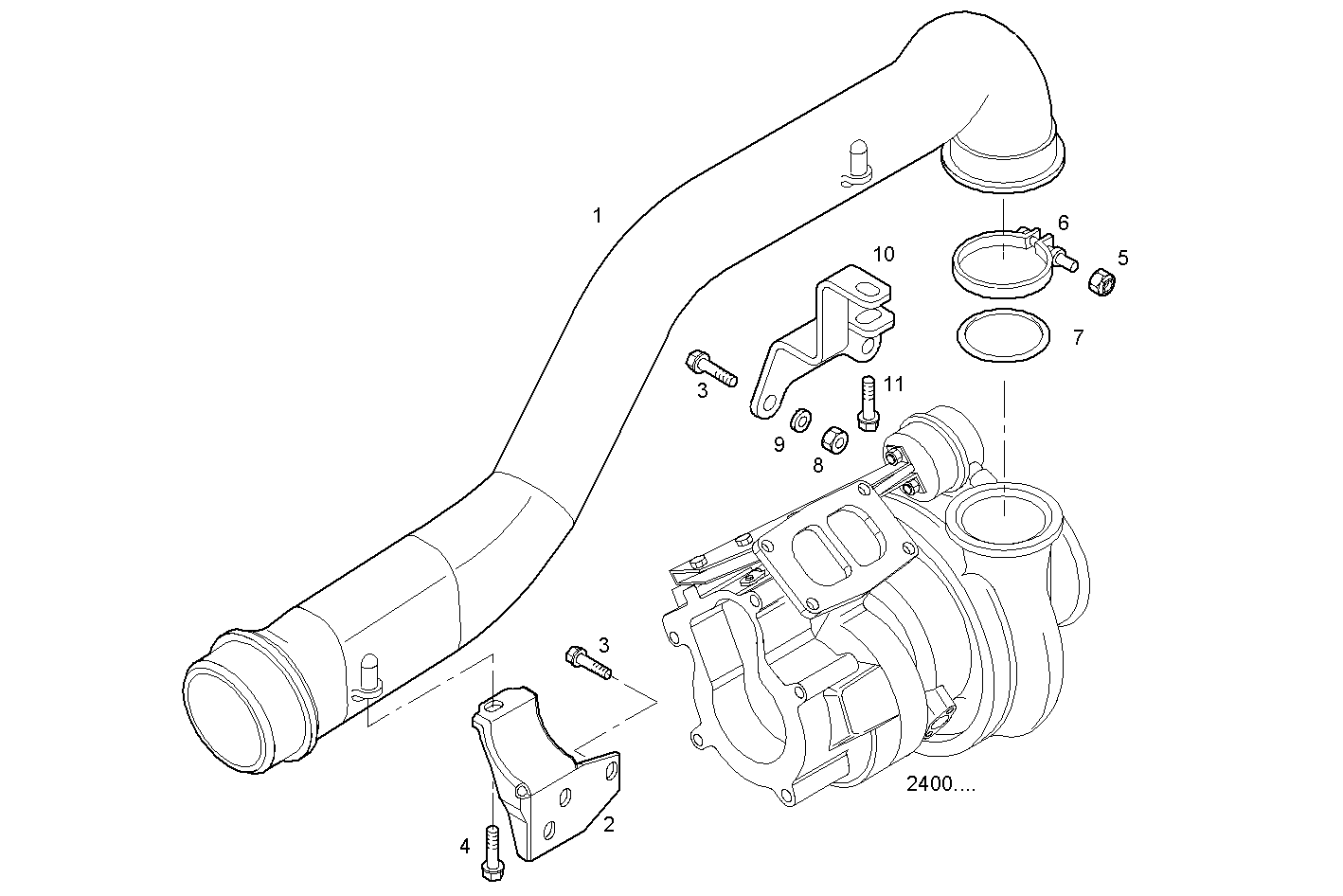

2430.055 EXIT AIR PIPE [FROM #] [FROM #]
| Item | Part number | Description |
|---|---|---|
| 1 | 4898170 | AIR PIPE/DUCT |
| 2 | 4898171 | FASTENING BRACKET |
| 3 | 4899068 | HEXAGON BOLT M8X17 MM |
| 4 | 16673635 | HEXAGON BOLT M8X1.25X20 |
| 5 | 17044735 | NUT M8 |
| 6 | 504043155 | CLIP |
| 7 | 4896625 | GASKET |
| 8 | 4895166 | HEXAGON NUT M10X1,5 |
| 9 | 4898656 | WASHER |
| 10 | 504069680 | FASTENING BRACKET |
| 11 | 4899019 | HEXAGON BOLT M8X35 MM |
