F4AE0481C*C102

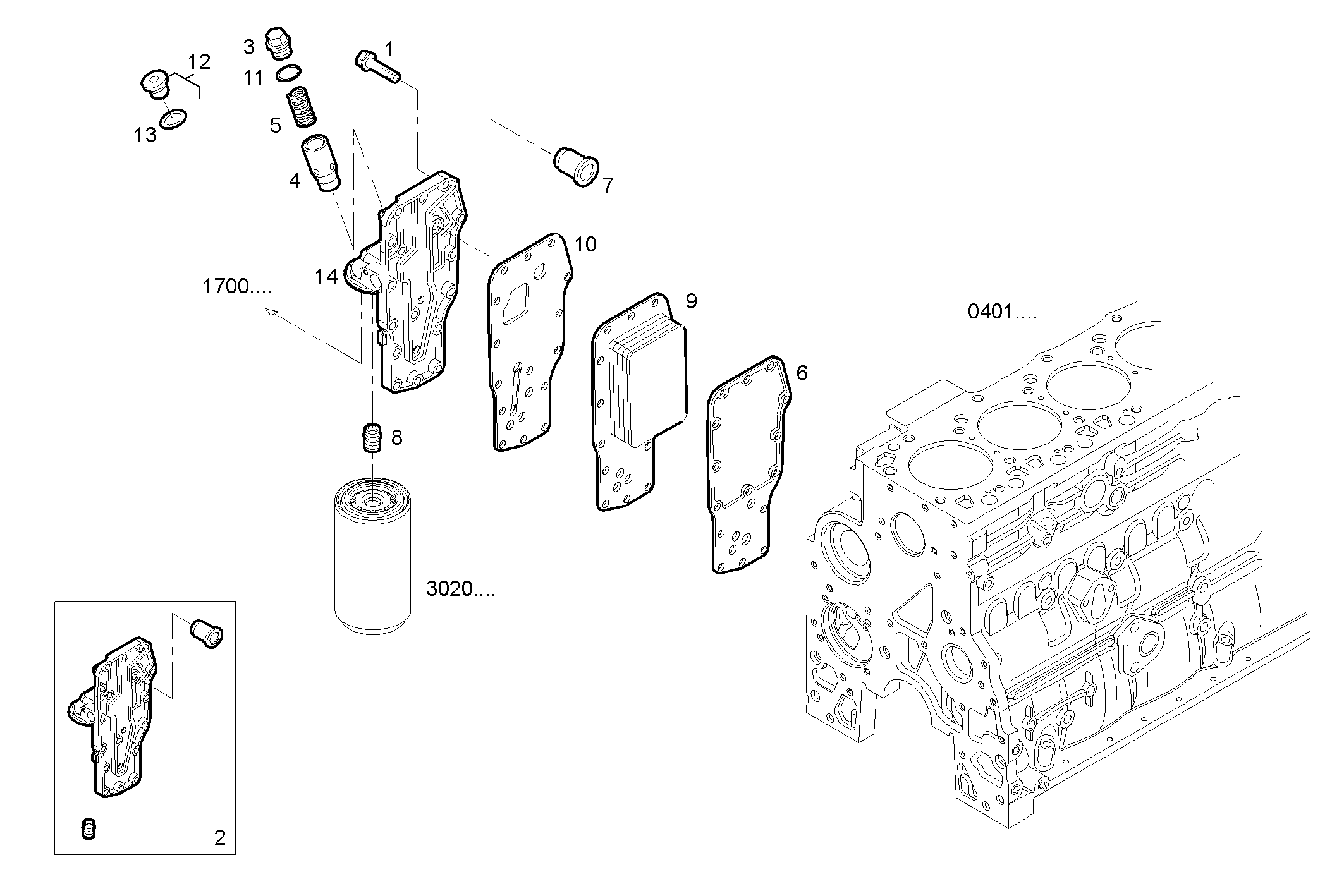

3150.008 OIL - WATER HEAT EXCHANGER [FROM #109461] [FROM #109461]

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 4899019 HEXAGON BOLT M8X35 MM
2 4899566 HEAT EXCHANGER ASSY
3 4895043 THREADED PLUG
4 4896404 VALVE HOUSING
5 4895045 VALVE SPRING
6 2830559 FLAT ENGINE GASKET
7 4896410 VALVE
8 4893391 THREADED UNION
9 504047616 OIL COOLER
10 4896409 FLAT ENGINE GASKET
11 4899035 O-RING
12 504096409 THREADED PLUG ASSY [FROM # 155900]
13 17916280 O-RING [FROM # 155900]
