F4AE0481C*C102

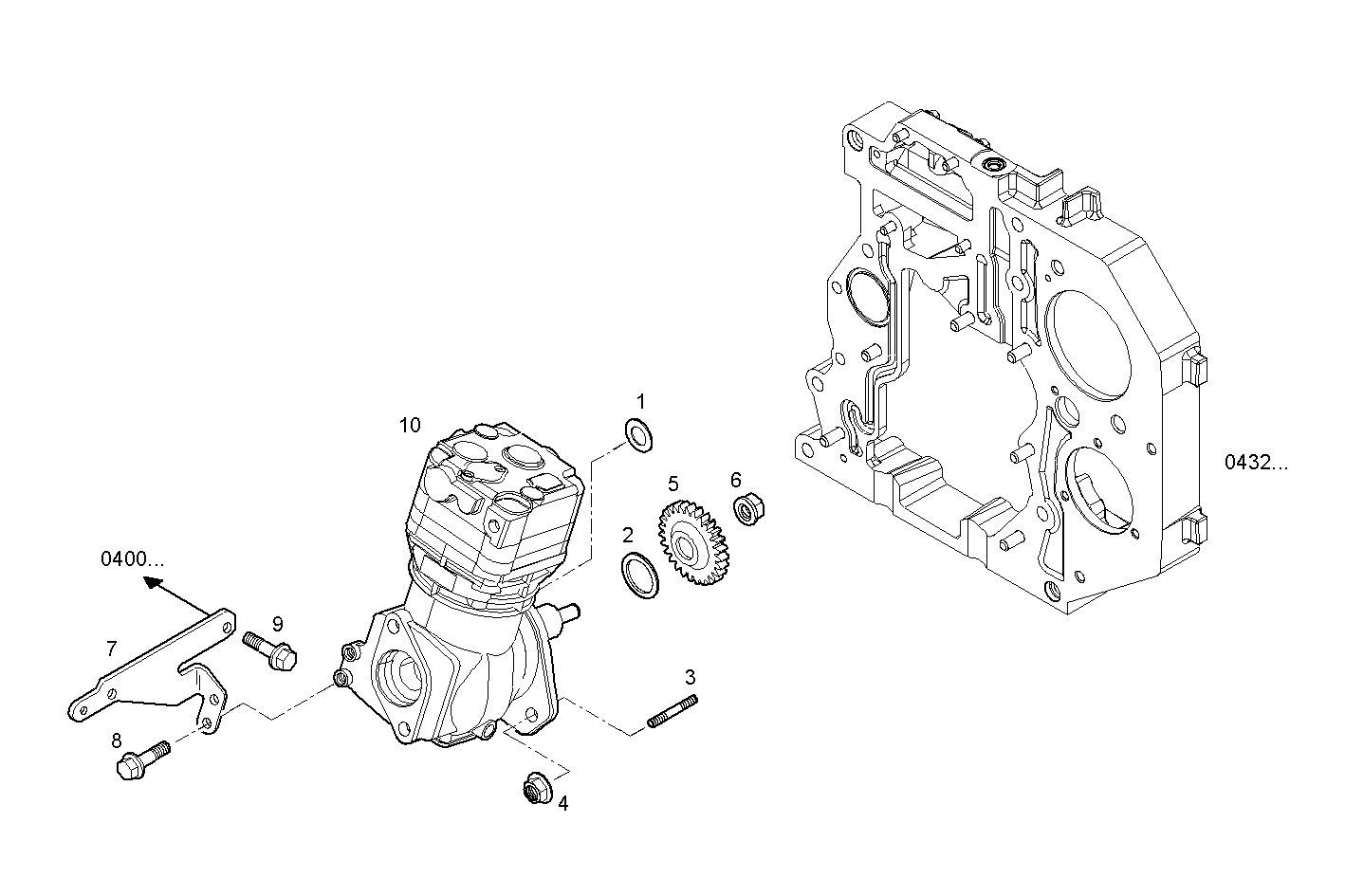

3801.015 AIR COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4896360 | O-RING |
| 2 | 4896357 | RUBBER GASKET |
| 3 | 4899069 | STUD M12 |
| 4 | 4899018 | HEXAGON NUT M12X1,75 |
| 5 | 4894308 | GEAR |
| 6 | 4895642 | HEXAGON NUT |
| 7 | 4897739 | RETAINER |
| 8 | 4899020 | HEXAGON BOLT |
| 9 | 4899068 | HEXAGON BOLT M8X17 MM |
| 10 | 4897300 | AIR COMPRESSOR |
