F4AE0481C*C111

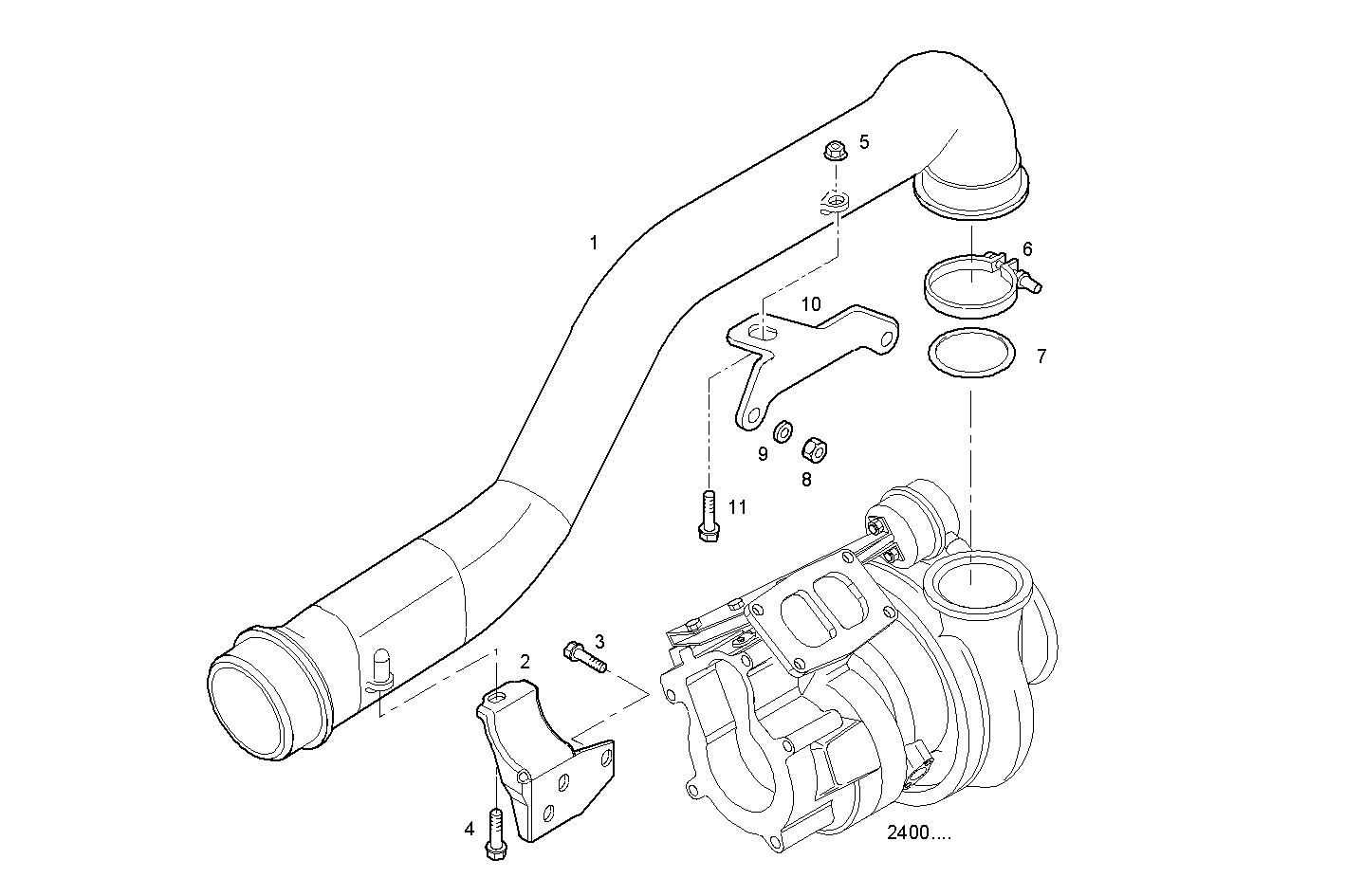

2430.003 EXIT AIR PIPE
Item | Part number | Description |
---|---|---|
1 | 4898170 | AIR PIPE/DUCT |
2 | 504163293 | FASTENING BRACKET |
3 | 4899068 | HEXAGON BOLT M8X17 MM |
4 | 16673635 | HEXAGON BOLT M8X1.25X20 |
5 | 17044735 | NUT M8 |
6 | 504043155 | CLIP |
7 | 4896625 | GASKET |
8 | 4895166 | HEXAGON NUT M10X1,5 |
9 | 4898656 | WASHER |
10 | 504110947 | FASTENING BRACKET |
11 | 4899019 | HEXAGON BOLT M8X35 MM |
