F4AE0681D*C150

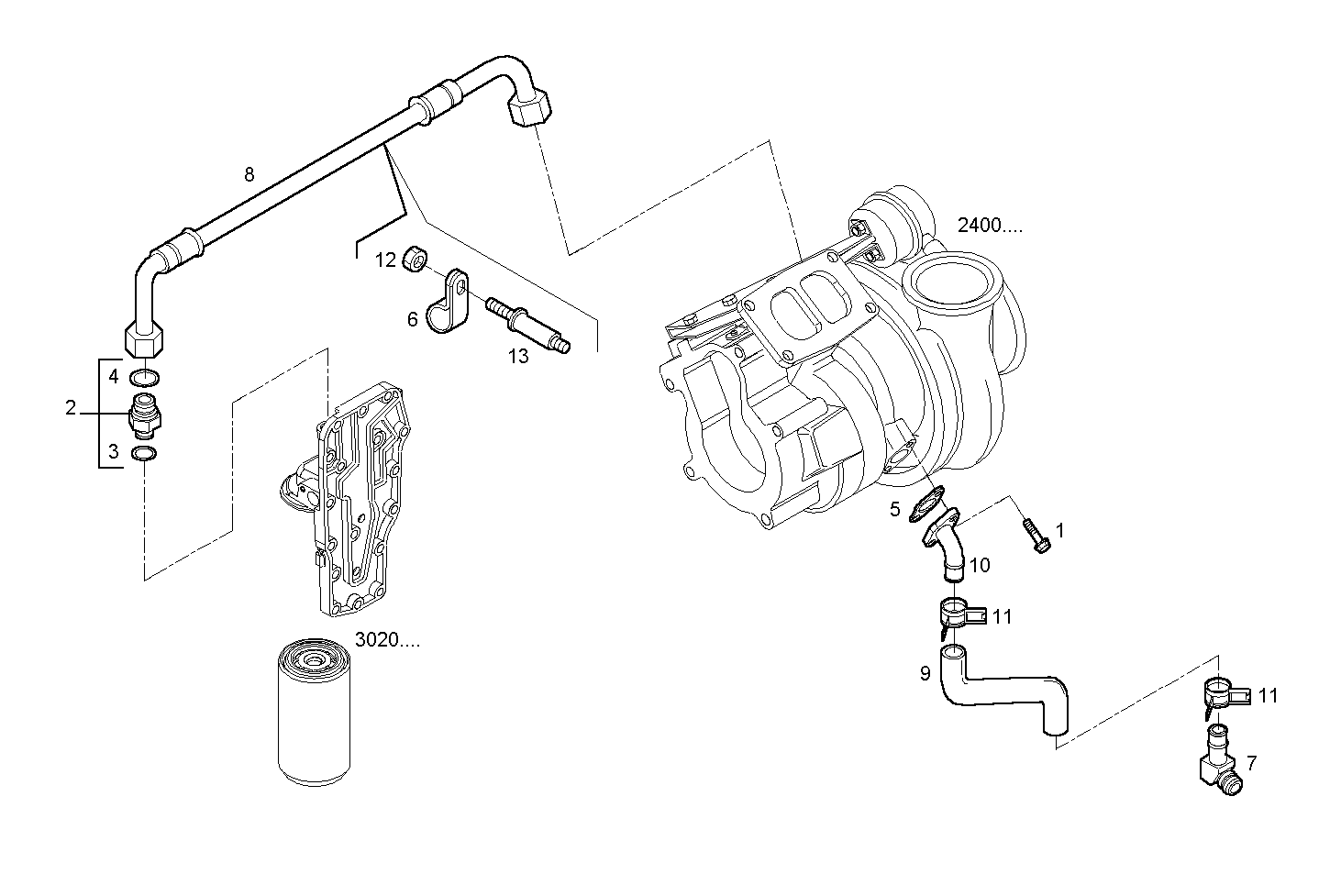

3010.190 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 18138424 | HEXAGON BOLT M8X20 MM |
| 2 | 4895107 | THREADED UNION ASSY |
| 3 | 4899107 | O-RING |
| 4 | 4899108 | O-RING |
| 5 | 4891288 | FLAT ENGINE GASKET |
| 6 | 4899436 | CLIP M8X17 MM |
| 7 | 4892972 | OIL LINE |
| 8 | 4899377 | OIL LINE |
| 9 | 4892970 | RUBBER SLEEVE |
| 10 | 4892971 | OIL LINE |
| 11 | 4895159 | CLIP |
| 12 | 17044731 | HEXAGON NUT M8 |
| 13 | 4896991 | COLLAR SCREW |
