F4AE0682C*C117

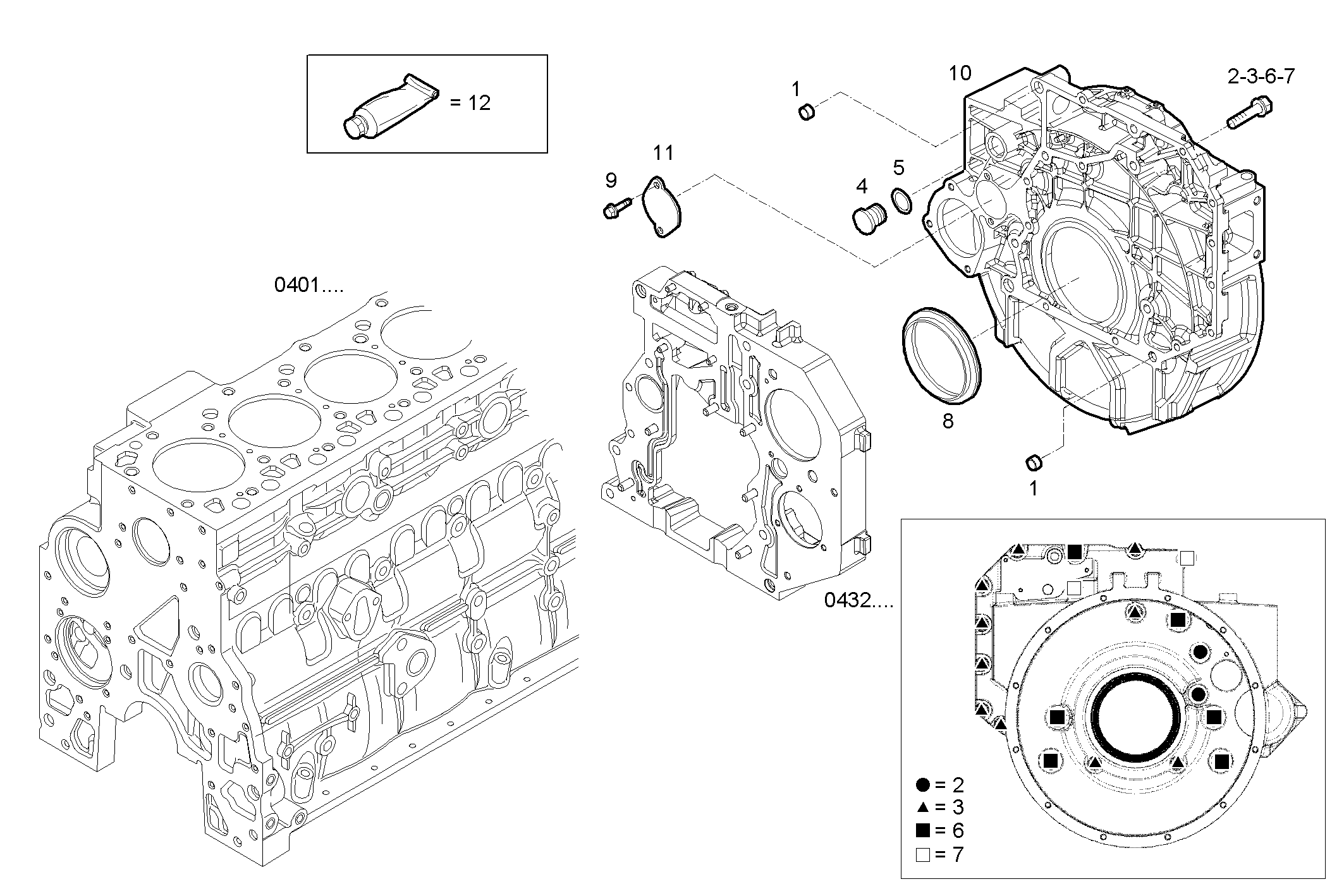

0435.000 FLYWHEEL HOUSING
| Item | Part number | Description |
|---|---|---|
| 1 | 4899026 | DOWEL PIN |
| 2 | 4899109 | HEXAGON BOLT M10X1,5X80 MM |
| 3 | 4899075 | HEXAGON BOLT M10X1,5X40 MM |
| 4 | 4895378 | PLUG Ø29 MM |
| 5 | 4895379 | O-RING |
| 6 | 4899076 | HEXAGON BOLT M12X80 MM |
| 7 | 4899064 | HEXAGON BOLT M12X130 MM |
| 8 | 4890833 | SHAFT SEAL |
| 9 | 4899068 | HEXAGON BOLT M8X17 MM |
| 10 | 4898248 | REAR C.CASE COVER |
| 11 | 4895155 | COVER |
| 12 | 2992504 | ADHESIVE/STICKER LOCTITE |
