F4AE0682C*C117

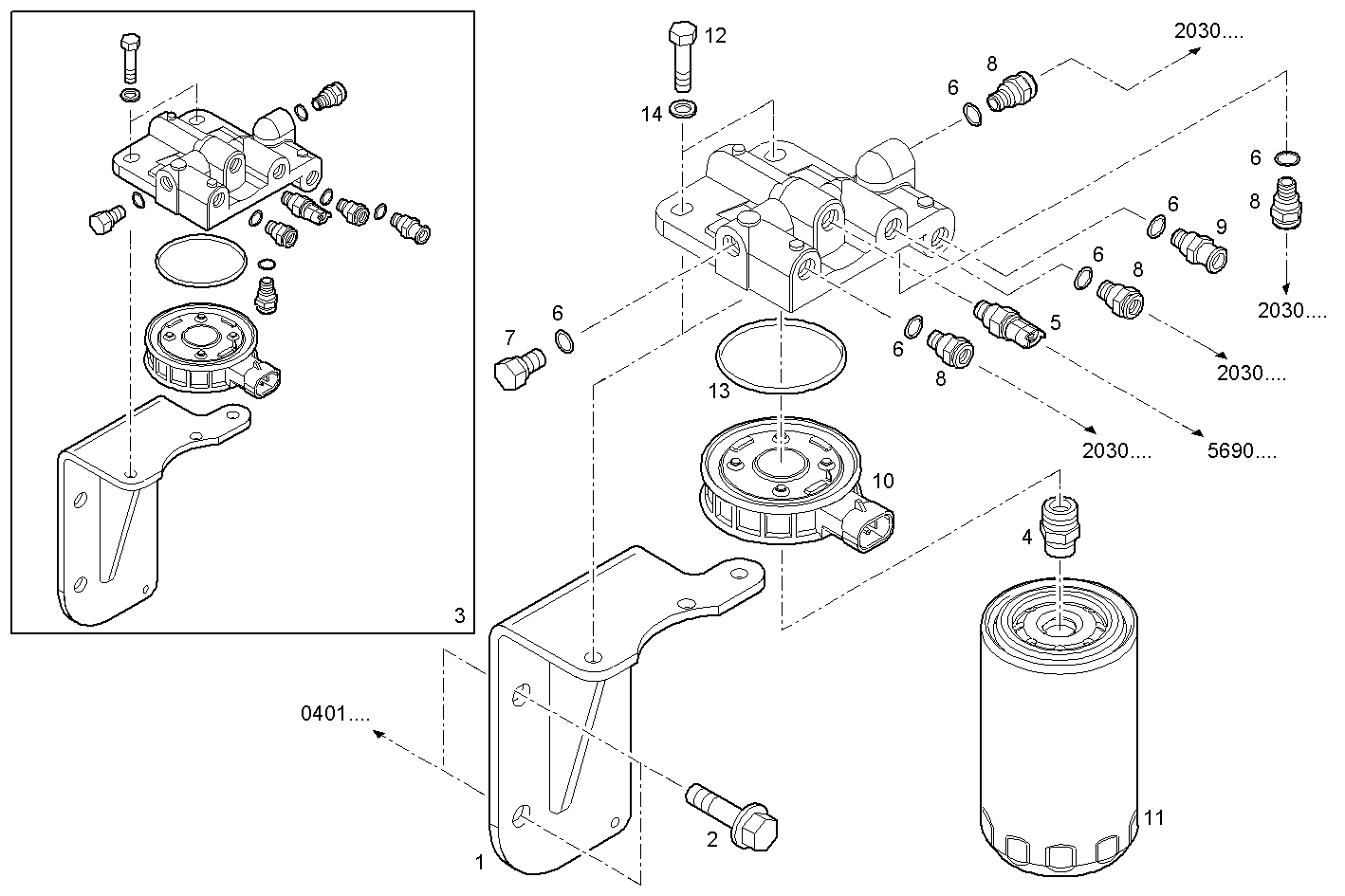

2000.125 FUEL FILTER [FROM # 284612] [FROM # 284612]
| Item | Part number | Description |
|---|---|---|
| 1 | 2830710 | BRACKET |
| 2 | 16677735 | HEXAGON BOLT M12X25 MM |
| 3 | 2830768 | FILTER SUPPORT ASSY |
| 4 | 4898758 | THREADED UNION |
| 5 | 4897224 | SENSOR TEMPERATURE |
| 6 | 4894721 | WASHER |
| 7 | 4893464 | THREADED PLUG |
| 8 | 4890964 | THREADED UNION M12X1,5 |
| 9 | 4896543 | THREADED UNION |
| 10 | 4897838 | HEATER FUEL FILTE |
| 11 | 2992241 | FUEL FILTER ELEM. |
| 12 | 2830733 | HEXAGON BOLT |
| 13 | 4898876 | O-RING |
| 14 | 2830711 | WASHER |
