F4AE0682C*C117

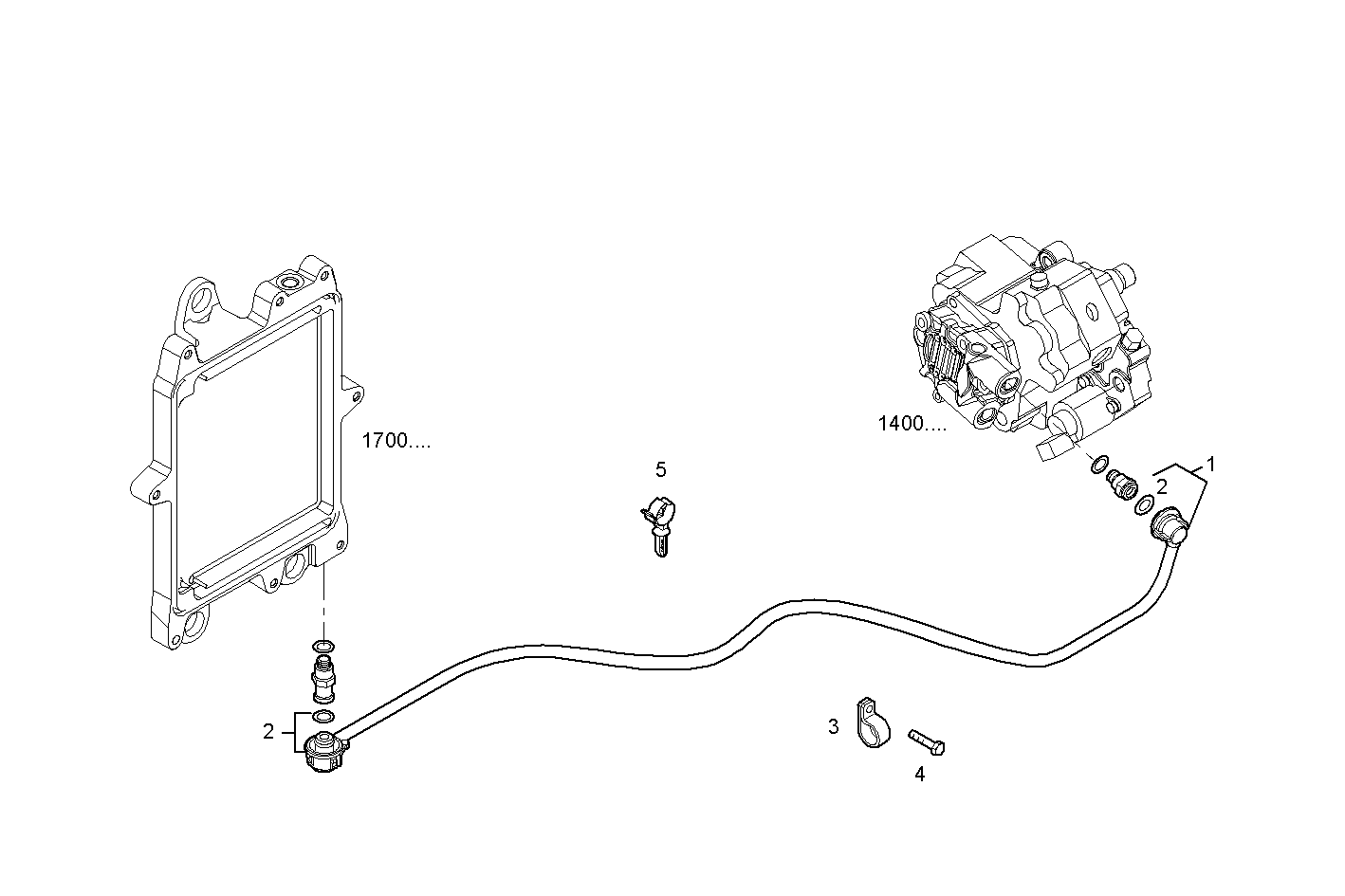

2036.016 FUEL LINES - RETURN TO FUEL PUMP [FROM # 142826] [FROM # 142826]
Item | Part number | Description |
---|---|---|
1 | 504092326 | FUEL LINE ASSY |
2 | 4894095 | O-RING |
3 | 17316399 | FASTENING BRACKET |
4 | 4899103 | HEXAGON BOLT [UP TO#194518] |
5 | 4896996 | RETAINING SPRING |
