F4AE0682C*C117

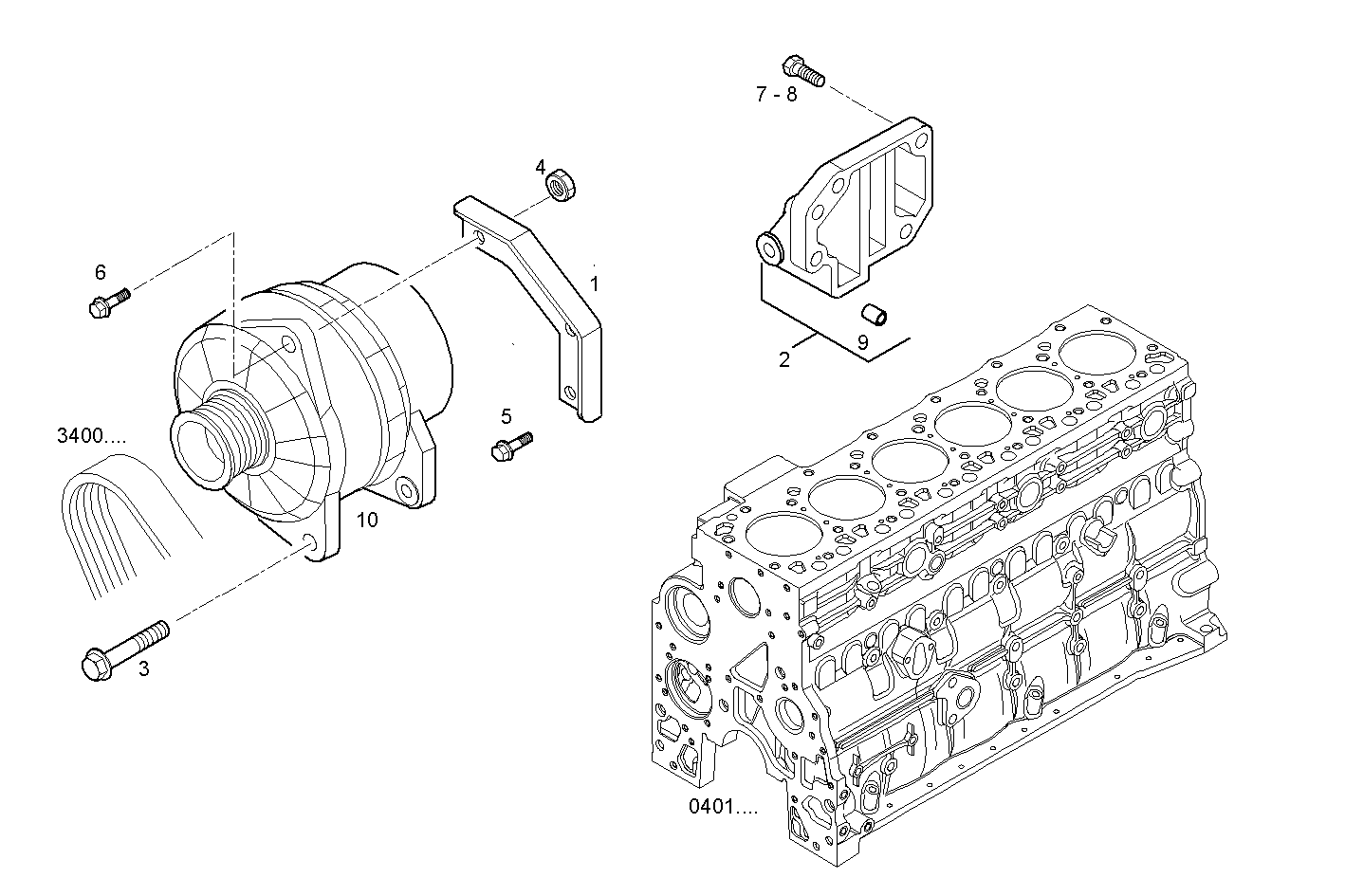

4000.143 GENERATOR
Item | Part number | Description |
---|---|---|
1 | 504009728 | FASTENING BRACKET |
2 | 500395787 | GENERATOR SUPPORT ASSY |
3 | 16599024 | HEXAGON BOLT M10X120 MM |
4 | 17044821 | NUT M10 |
5 | 16586325 | HEXAGON BOLT M8X20 MM |
6 | 16676834 | HEXAGON BOLT M10X70 MM |
7 | 16587325 | HEXAGON BOLT M10X35 MM |
8 | 16587425 | HEXAGON BOLT M10X40 MM |
9 | 4895576 | DOWEL PIN |
10 | 4892320 | ALTERNATOR ASSY |
