F4AE0682C*C119

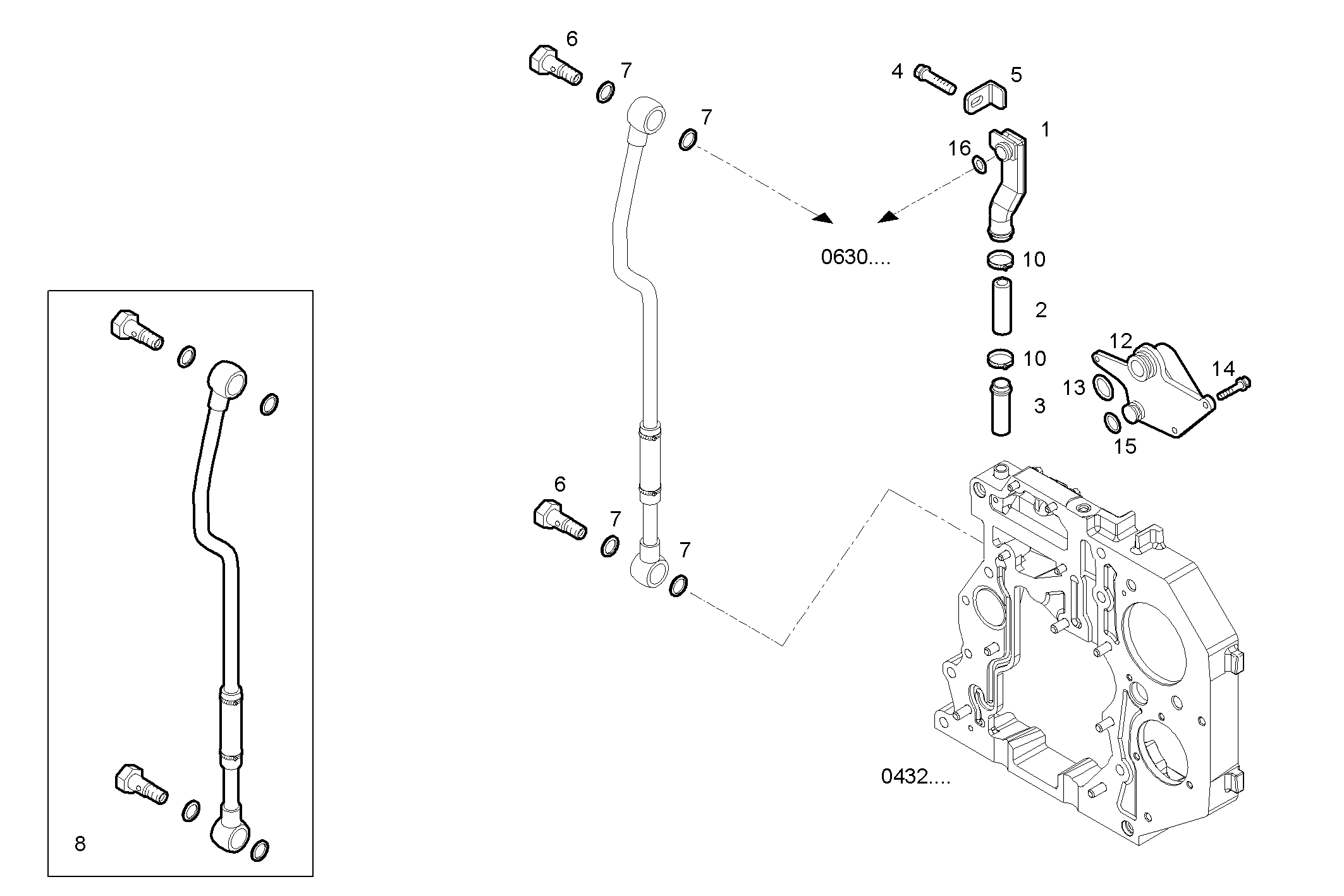

0450.188 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4897534 BREATHER PIPE M10X1,5X80 MM
2 4897546 RUBBER SLEEVE
3 4897547 CONNECTOR SLEEVE
4 4897537 HEXAGON BOLT
5 4897536 RETAINER
6 16511214 SCREW CONNECTOR M12X1,5X30 MM
7 4899926 SEAL GASKET Ø12X18 MM SP=1,5 MM
8 4899219 BREATHER PIPE ASSY
10 4893234 CLIP
12 2830405 BREATHER
13 2830409 O-RING
14 4899110 HEXAGON BOLT
15 4898372 O-RING Ø13,11 MM SP=2,62 MM
16 4898439 O-RING
