F4AE0682C*C151

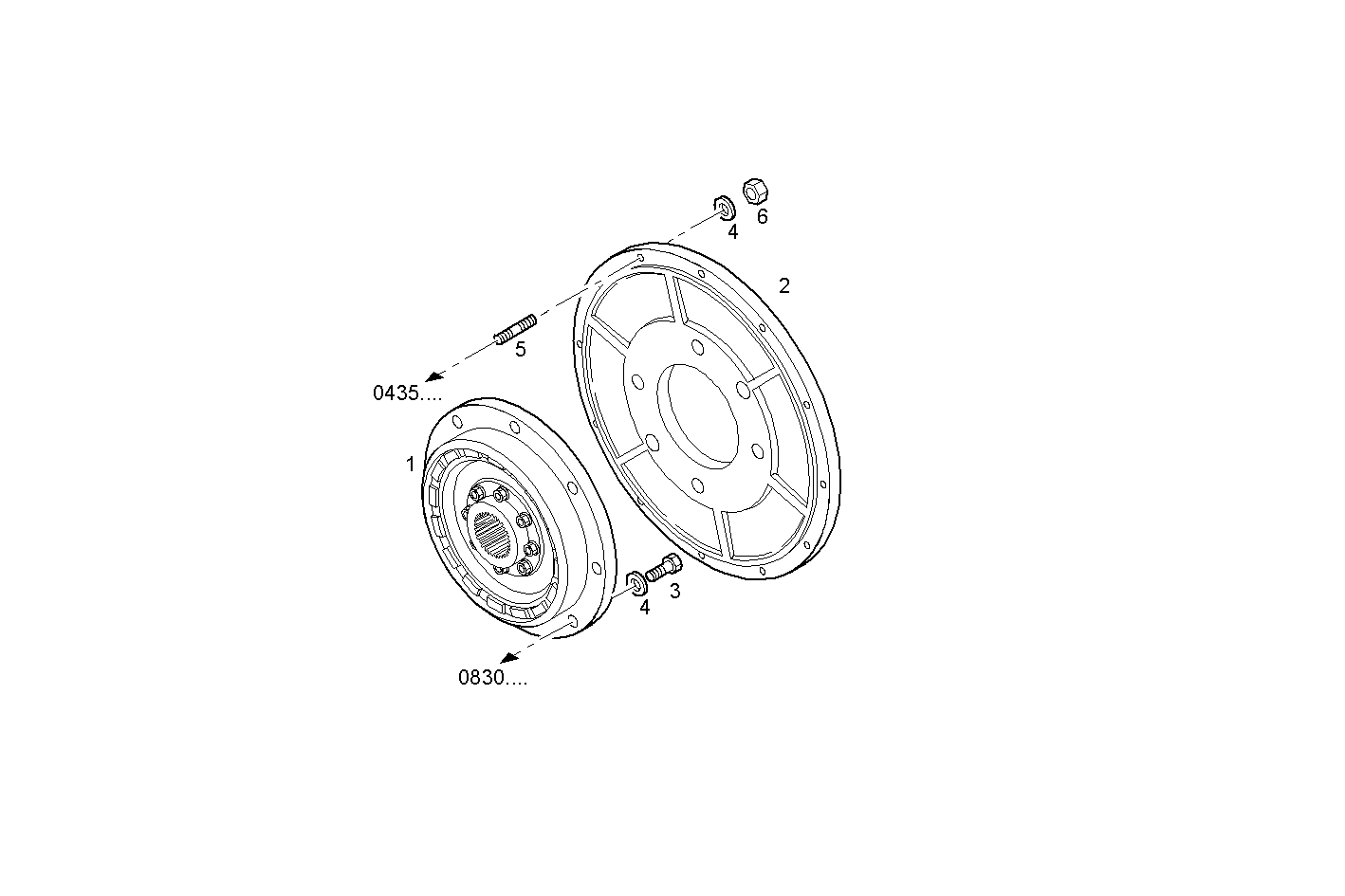

0870.001 FLYWHEEL ARRANGED FOR TRANSMISSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8107310 | FLEXIBLE COUPLING |
| 2 | 8021568 | FLANGE |
| 3 | 16606734 | HEXAGON BOLT |
| 4 | 17090174 | SPRING WASHER Ø10X20 MM |
| 5 | 16748624 | STUD M10X30 MM |
| 6 | 17038131 | HEXAGON NUT M10 |
