F4AE0682C*C151

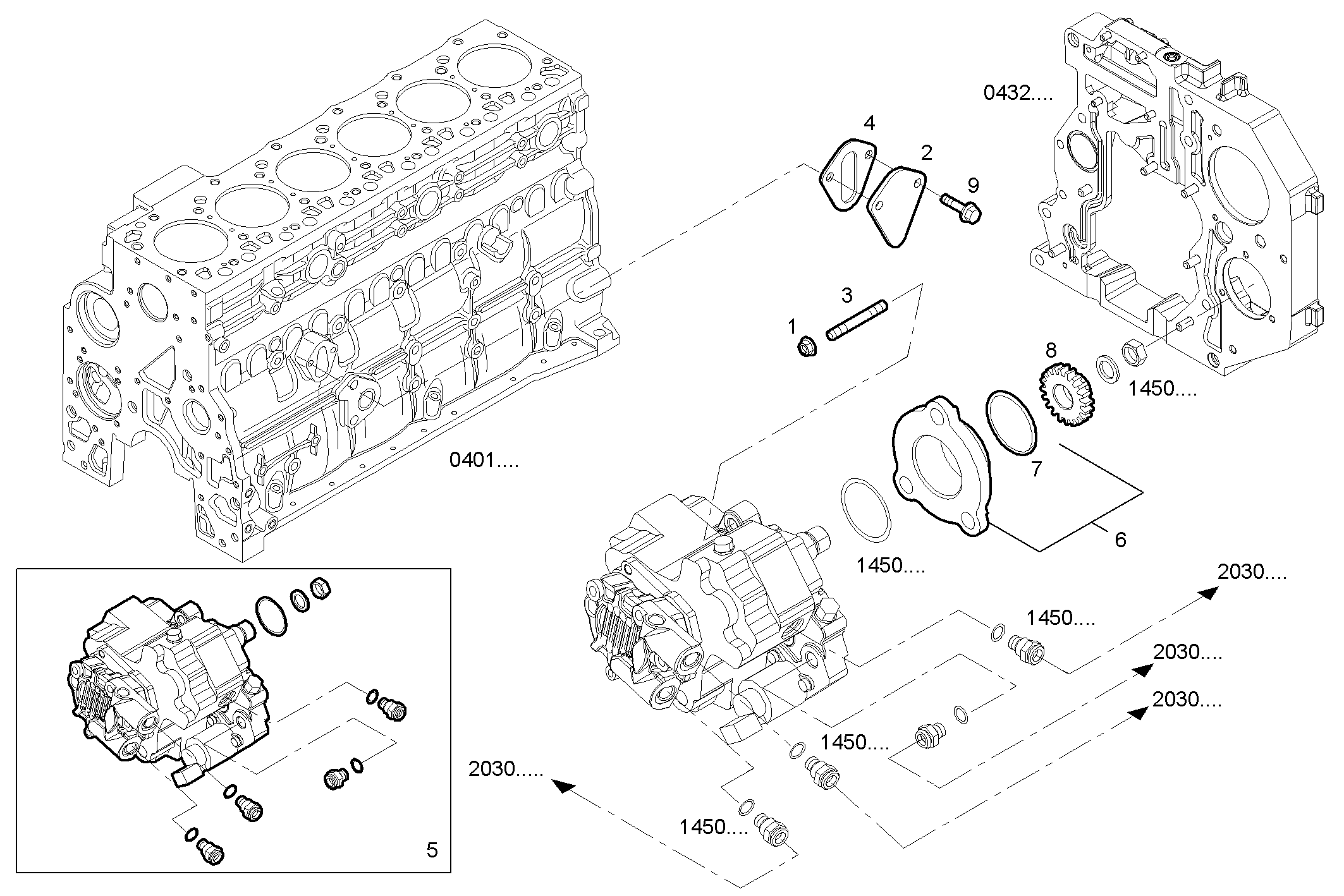

1400.308 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 17044731 HEXAGON NUT M8
2 4896952 COVER
3 4892831 STUD
4 4890700 FLAT ENGINE GASKET
5 4898921 HIGH PRESSURE PUMP ASSY
6 4891829 SPACING BAR ASSY
7 17285381 O-RING
8 4893389 INJ.PUMP DRIV.GEA
9 4899020 HEXAGON BOLT
