F4AE0682C*C151

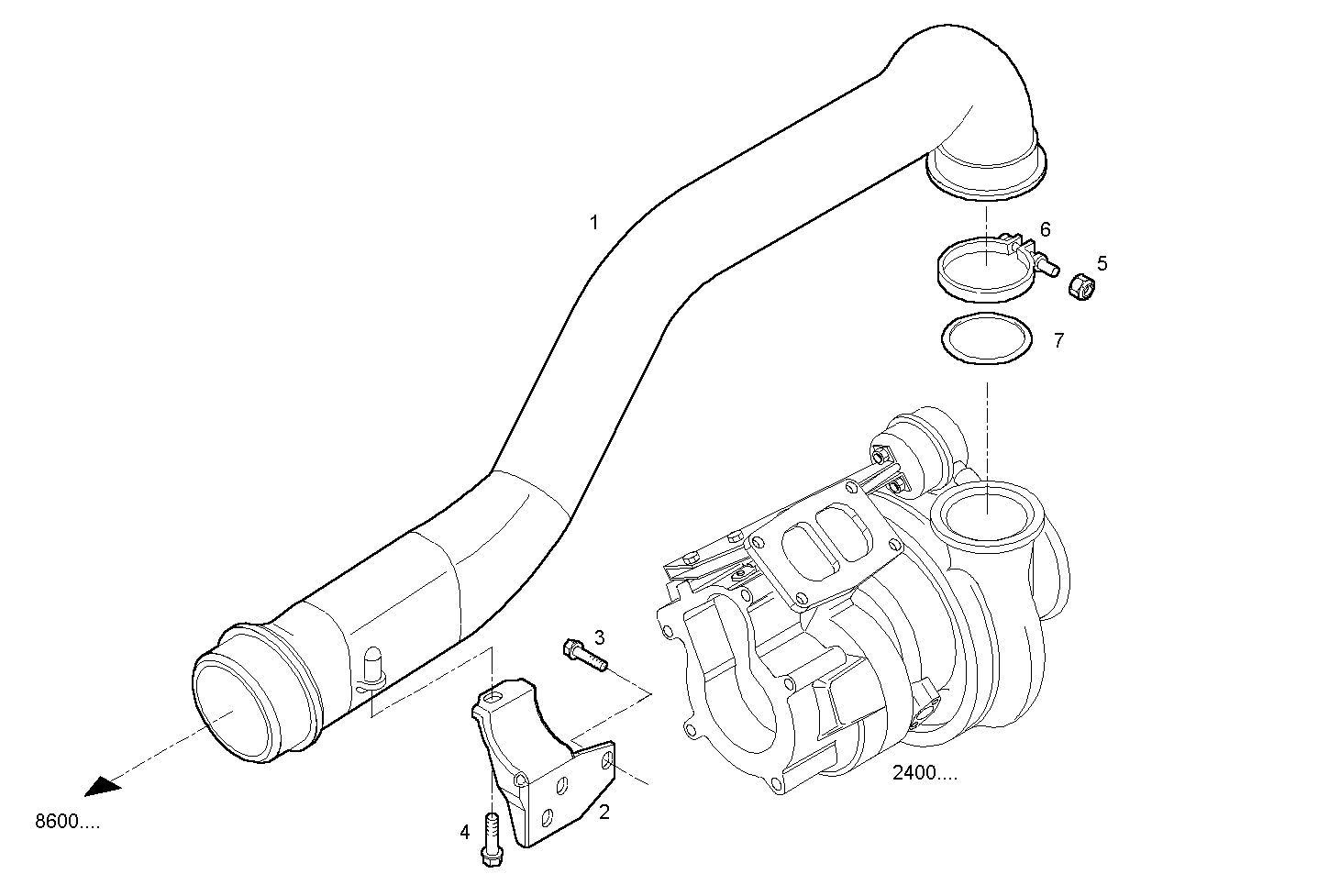

2420.186 SUPERCHARGING LINES
Item | Part number | Description |
---|---|---|
1 | 4898169 | AIR PIPE/DUCT |
2 | 4898171 | FASTENING BRACKET |
3 | 4899068 | HEXAGON BOLT M8X17 MM |
4 | 18138424 | HEXAGON BOLT M8X20 MM |
5 | 4899098 | HEXAGON NUT |
6 | 4899099 | CLIP |
7 | 4899087 | O-RING |
