F4AE0682C*C151

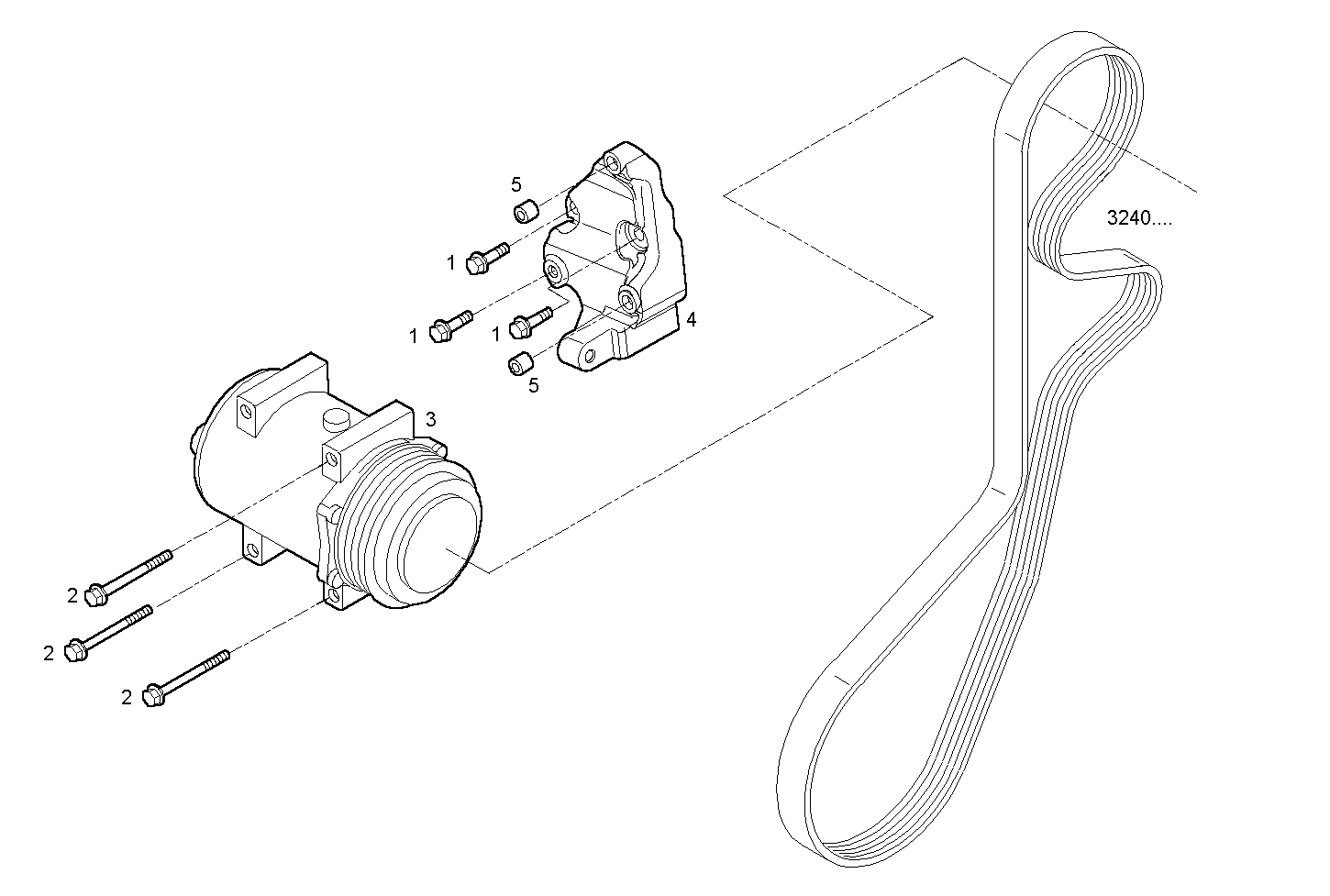

3900.009 COMPRESSOR AIR CONDITIONING
| Item | Part number | Description |
|---|---|---|
| 1 | 16587524 | HEXAGON BOLT M10X45 MM |
| 2 | 16598324 | HEXAGON BOLT M8X100 MM |
| 3 | 4894306 | AIR COND.COMPRESS. |
| 3 | 504185596 | AIR COND.COMPRESS. |
| 4 | 4892316 | SUPPORT |
| 5 | 99435557 | DOWEL PIN Ø8,5 MM |
